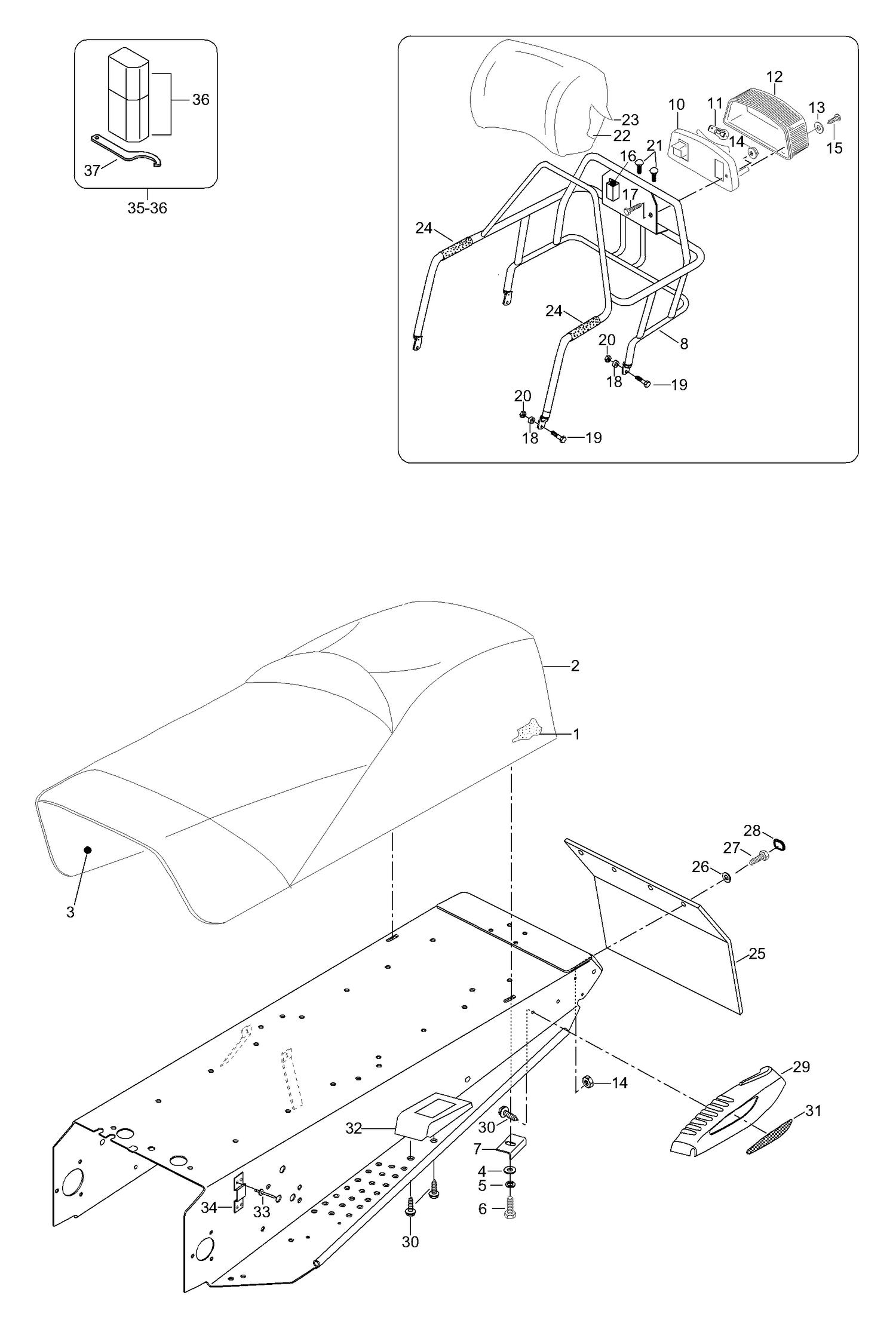

| Ref | Part Number | Description |
|---|
| 1 |
5146604 |
Seat foam |
| 2 |
605148618 |
Seat cover |
| 3 |
5146603 |
Seat base |
| 4 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 5 |
20014 |
Lock washer |
| 6 |
40015 |
SELF TAPPING SCREW M8X30 - Call your local BRP dealership |
| 7 |
5447994 |
Support plate |
| 8 |
605249018 |
Rack assy |
| 10 |
414979400 |
Taillamp housing |
| 11 |
520000758 |
Bulb This part replaces 410504000. |
| 12 |
414513700 |
Lens |
| 13 |
414516400 |
Washer - Call your local BRP dealership |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 15 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 16 |
5345713 |
Cover - Call your local BRP dealership |
| 17 |
40032 |
Screw M6x30 |
| 18 |
548491 |
Sleeve |
| 19 |
40387 |
Screw M8x30 |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 21 |
40866 |
Locking screw M6x20 |
| 22 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 23 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 24 |
415050300 |
Grip |
| 25 |
5246859 |
Snow guard |
| 26 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 27 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 28 |
415073300 |
Cap |
| 29 |
861777700 |
RH MOULDING KIT - Call your local BRP dealership |
| 29 |
861777800 |
L.H. moulding |
| 30 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 31 |
516000241 |
R.H. rear reflector |
| 31 |
516000242 |
L.H. rear reflector |
| 32 |
572088700 |
GT SE Foot Rest RH |
| 32 |
572088800 |
GT SE Foot Rest LH |
| 33 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 34 |
5447908 |
Bracket |
| 36 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
