Home / BRP / JOHNSON / 1968 / 20 / FD-22A 1968 / POWERHEAD GROUP

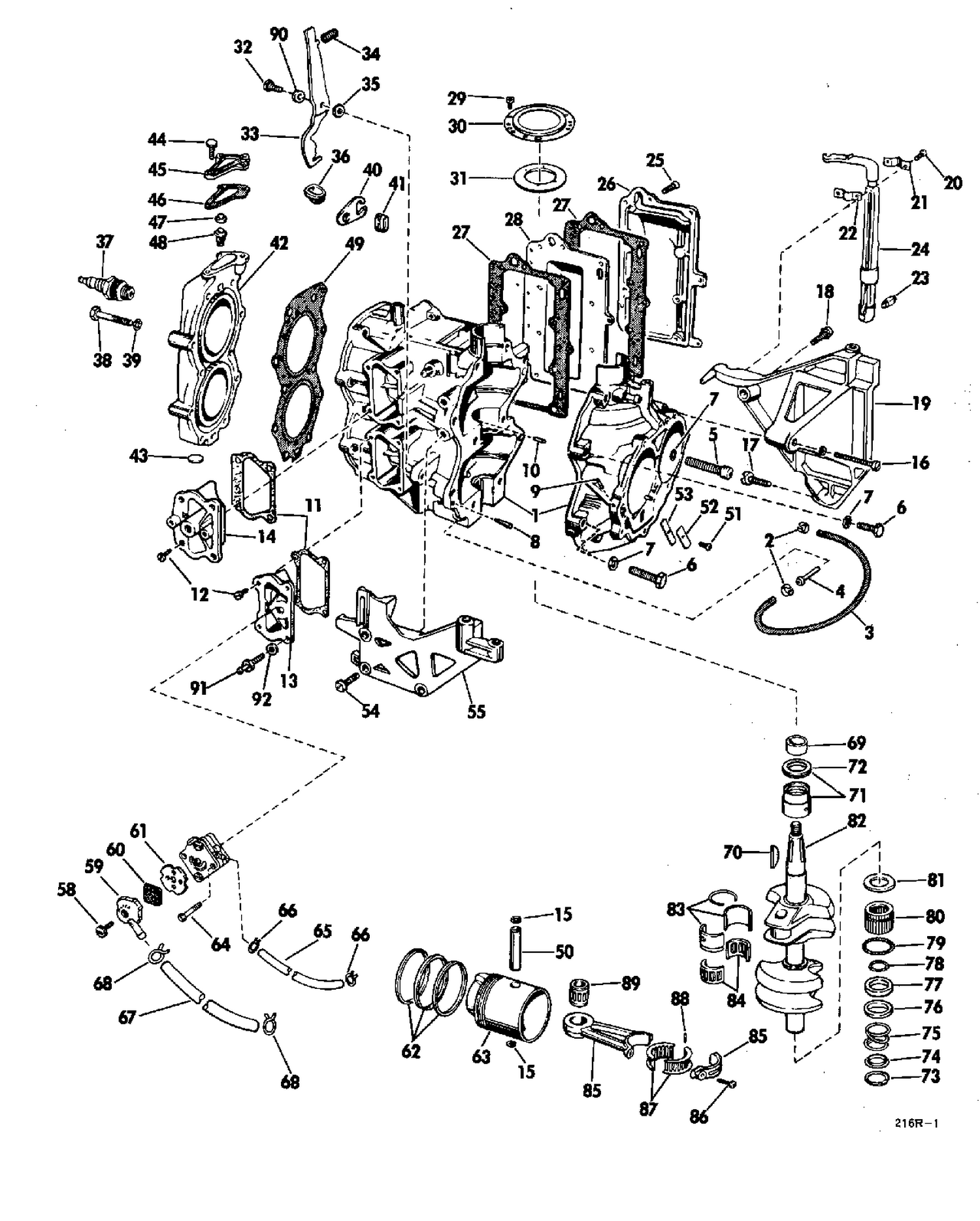

POWERHEAD GROUP

POWERHEAD GROUP

Parts (86)

RefPart NumberDescription
1 0383511 CYCLINDER & CRANKCASE ASSEMBLY, B models
2 0303473 CLAMP, Hose
3 0308506 HOSE, Oil line
5 0203249 SCREW, Crankcase, center
6 0306435 SCREW, Brace to alternator
7 0306371 WASHER
10 0302037 DOWEL, Bearing
11 0314818 GASKET, By -pass cover
12 0306487 SCREW
13 0314816 BY PASS COVER, Upper
14 0314817 BY PASS COVER, Lower
15 0302577 RETAINING RING
16 0312189 SCREW, Manfold to crankcase
17 0551793 SCREW
18 0303699 SCREW
19 0308361 BRACKER, Port
20 0329594 SCREW, Cam follower This part replaces 0303737.
21 0305609 BEARING CLAMP
22 0303109 BEARING CLAMP, INNER
23 0329197 PIN, Control lever This part replaces 0304155.
24 0385509 CONTROL LEVER This part replaces 0203805.
25 0314976 MANIFOLD, Exhaust
26 0306166 COVER, Exhaust, outer
27 0316162 GASKET, Exaust cover This part replaces 0306164.
28 0306165 COVER, Exhaust, inner
31 0303277 RETAINING RING
32 0302592 SCREW
32 0311487 SCREW
33 0203596 LOCK, Shifter
33 0314498 LOCK, Shifter
34 0302587 SPRING, Shifter lock
36 0306222 GROMMET
37 0378101 SPARK PLUB, Champion j4j
37 0378320 SPARK PLUG, AC - M42K
37 3783668 SPARK PLKUG,Auto-lite A21X
38 0306424 BOLT, Pump mounting
40 0304763 ANCHOR, Ignition lead
41 0300454 GROMMER, Ignition lead
42 0381151 CYLINDER HEAD ASSEMBLY
44 0300646 VIS, ancrage
45 0308327 CAP HOUSING
46 0308328 GASKET, Cap
47 0310058 GASKET, Thermostat
48 5005440 THERMOSTAT This part replaces 0378065.
49 0306163 GASKET, Cylinder head
50 0304691 WRIST PIN
51 0306402 SCREW, Drain valve
52 0203248 PLATE, Drain valve
53 0203235 LEAF VALVE, Oil drain
54 0303699 SCREW
55 0312009 BRACKET, Starboard
56 0303680 DEFLECTOR
57 0303615 GASKET
62 0378415 PISTON RING SET,Std.
62 0378419 PISTON RING SET,.020 O.S.
62 0378423 PISTON RING SET,.040 O.S.
63 0378374 PISTON, Less rings .020 O.S.
63 0378375 PISTON, Less rings .040 O.S.
63 0385338 PISTON, Standard This part replaces 0378278.
64 0309654 SCREW
65 0203909 HOSE, Oil return This part replaces 0303111.
66 0302647 CLAMP
67 0303617 HOSE This part replaces 0305699.
69 0306453 LOCKWASHER, Fuel pump
69 0316583 CAM, Magneto This part replaces 0510168.
70 0120395 KEY
71 0377528 ROLLER BEARING & SEAL ASSEMBLY, Upper
72 0305987 SEAL
73 0302536 RETAING RING
74 0303801 WAHSER, Lower
75 0302539 SPRING
76 0302594 CLAMP
77 0302538 CARBON SEAL
80 0375763 BEARING, Roller, lower
81 0304732 THRUST WASHER
82 0315286 CRANKSHAFT This part replaces 0304733.
83 0309010 SLEEVE, Split, center bearing
84 0378838 REATINER & NEEDLES, Center bearing
85 0383462 CONNECTING ROD ASSEMBLY This part replaces 0378277.
86 0202967 SCREW
87 0203244 RETAINER
88 0378151 NEEDLE SET
89 0378251 BEARING SET, Needle, wrist pin
90 0311490 BUSHING
91 0315230 NIPLE, By-pass cover
0382875 0388685 FUEL PUMP ASSY This part replaces 0382875.
