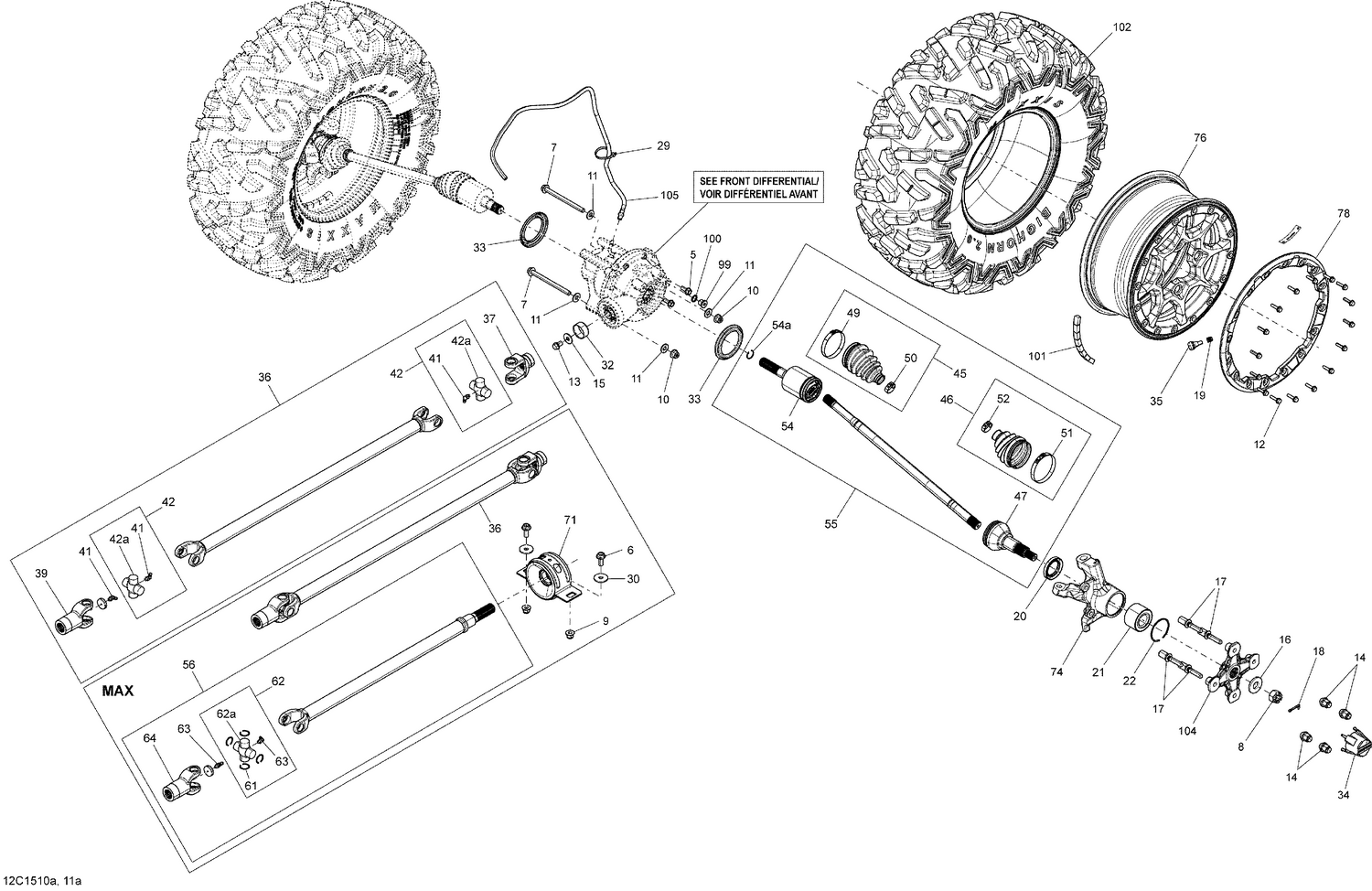

07- Drive System, Front _12C1510a
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 8 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 233201436 | Hex. Flange Elastic Nut M10 |
| 11 | 234201474 | Conical Spring Washer 10 mm |
| 12 | 250000787 | Hex. Flange Screw M6 X 25 This part replaces 250000435. |
| 12a | 293450317 | Insert |
| 13 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 14 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 15 | 250200014 | Flat Washer M10 |
| 16 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 17 | 250300060 | Wheel Stud This part replaces 250300051. |
| 18 | 250400036 | Cotter Pin |
| 19 | 293000110 | Valve Cap |
| 20 | 293250246 | O-Ring |
| 21 | 293350150 | Ball Bearing This part replaces 293350040. |
| 22 | 293370019 | Circlip |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | XXX | Not Available As Spare Parts |
| 32 | 705400036 | Wear Ring |
| 33 | 705400780 | Wear Sleeve |
| 34 | 705400928 | Wheel Cap |
| 35 | 705400193 | Rim Valve With Cap |
| 36 | 705402068 | Drive Shaft Assembly This part replaces 705401196. |
| 37 | 715900116 | Fixed Yoke Joint |
| 41 | 703500813 | GREASE FITTING - Call your local BRP dealership |
| 42 | 715900325 | Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 42a | 715900183 | U-Joint |
| 45 | 705401346 | Boot Kit, Differential Side |
| 46 | 705401345 | Boot Kit, Wheel Side |
| 47 | 705401344 | CV Joint |
| 49 | 715900284 | Oetiker Clamp, Large |
| 50 | 715900261 | Oetiker Clamp, Small |
| 51 | 715900282 | Oetiker Clamp |
| 52 | 715900283 | Oetiker Clamp, Small |
| 54 | 705401348 | RH Plunging Joint |
| 54 | 705401350 | LH Plunging Joint |
| 54a | 705401349 | Circlip Joint |
| 55 | 705401873 | LH CV Joint This part replaces 705401235. |
| 55 | 705401874 | RH CV Joint This part replaces 705401236. |
| 56 | XXX | Not Available As Spare Parts |
| 61 | 715900117 | SNAP RING - Call your local BRP dealership |
| 62 | XXX | Not Available As Spare Parts |
| 62a | XXX | Not Available As Spare Parts |
| 63 | XXX | Not Available As Spare Parts |
| 64 | XXX | Not Available As Spare Parts |
| 71 | XXX | Not Available As Spare Parts |
| 74 | 705401548 | LH Front Knuckle |
| 74 | 705401549 | RH Front Knuckle |
| 78 | 705401586 | Manta Green, Reinforcement Disk |
| 99 | 705500504 | Fill Level Plug |
| 100 | 705500506 | Copper Washer |
| 104 | 705501900 | Wheel Hub |
