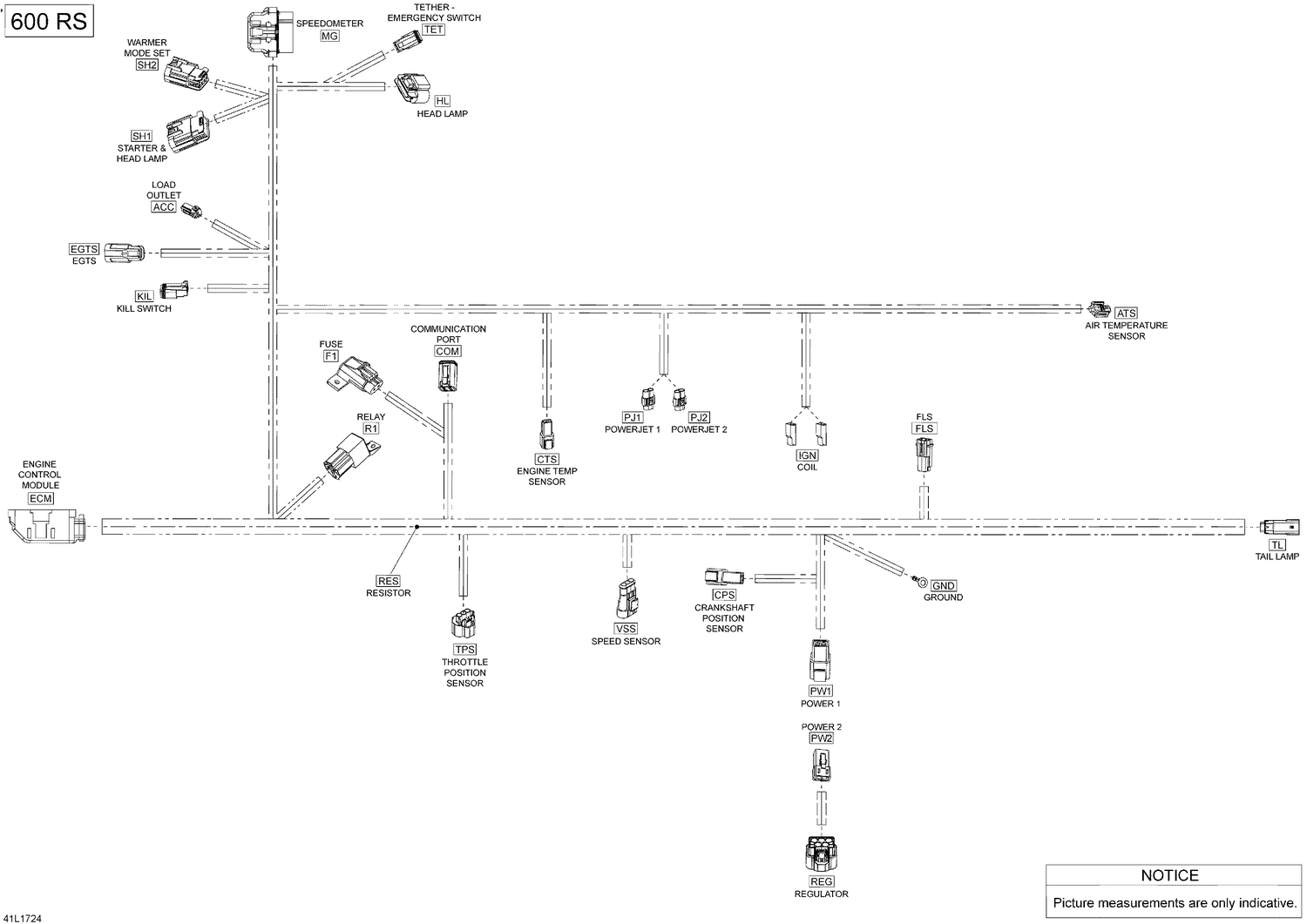

10- Electrical Harness - 600 RS
Parts (90)
| Ref | Part Number | Description |
|---|---|---|
| ACC | 515175231 | Female Terminal |
| ACC | 515175658 | Female Housing, 2 Circuits |
| ATS | 515176890 | Female Terminal Housing |
| ATS | 710001163 | Wire Seal |
| ATS | 710001164 | Female Terminal |
| COM | 278000632 | Terminal |
| COM | 278001665 | Terminal |
| COM | 278002896 | Housing |
| COM | 293000052 | Sealing Cap |
| COM | 515175678 | Lock |
| CPS | 278000631 | Terminal |
| CPS | 409207500 | Lock |
| CPS | 515175665 | Housing |
| CTS | 278000631 | Terminal |
| CTS | 409206900 | Male Housing, 2 Circuits |
| CTS | 409207500 | Lock |
| ECM | 515175806 | Terminal |
| ECM | 515175812 | Plug |
| ECM | 515176221 | Retainer |
| ECM | 515176222 | Seal |
| ECM | 515176223 | Housing |
| ECM | 515176224 | Lock |
| ECM | 710001131 | Terminal |
| EGTS | 515177204 | Housing |
| EGTS | 710001224 | Terminal |
| EGTS | 710001233 | Seal |
| F1 | 278000805 | Foam |
| F1 | 278001325 | Fuse Holder |
| F1 | 278001326 | Cover |
| F1 | 409003900 | Fuse |
| F1 | 710000113 | Terminal |
| FLS | 515175232 | Terminal |
| FLS | 515175654 | Housing |
| GND | 278000992 | Ring Terminal |
| HL | 515177296 | Housing |
| HL | 710001228 | Terminal |
| HL | 710001332 | Seal Wire |
| IGN | 409010100 | Terminal |
| IGN | 409010400 | Housing |
| KIL | 278000632 | Terminal |
| KIL | 515175670 | Housing |
| KIL | 515175675 | Lock |
| MG | 515175801 | Housing |
| MG | 515175802 | Lock |
| MG | 515175803 | Seal |
| MG | 515175806 | Terminal |
| MG | 515175812 | Plug |
| MG | 710000399 | Retainer |
| MG | 710001131 | Terminal |
| PJ1 | 409012100 | Terminal |
| PJ1 | 409012300 | Seal |
| PJ1 | 409209200 | Housing |
| PJ2 | 409012100 | Terminal |
| PJ2 | 409012300 | Seal |
| PJ2 | 409209200 | Housing |
| PW1 | 278001672 | Lock |
| PW1 | 278001674 | Housing |
| PW1 | 515175568 | Terminal |
| PW2 | 278001671 | Lock |
| PW2 | 278001673 | Housing |
| PW2 | 515175567 | Terminal |
| R1 | 409203300 | Female Terminal |
| R1 | 409209900 | Housing |
| R1 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| R1 | 710010053 | RELAY This part replaces 515177041. |
| REG | 515176530 | Housing |
| REG | 515176531 | Terminal |
| REG | 515176594 | Seal |
| RES | 710002674 | Resistor |
| SH1 | 710001223 | Terminal |
| SH1 | 710001224 | Terminal |
| SH1 | 710001225 | Plug |
| SH1 | 710001233 | Seal |
| SH1 | 710001332 | Seal Wire |
| SH1 | 710001929 | Housing |
| SH2 | 710001224 | Terminal |
| SH2 | 710001225 | Plug |
| SH2 | 710001233 | Seal |
| SH2 | 710001927 | Housing |
| TET | 278000632 | Terminal |
| TET | 515175670 | Housing |
| TET | 515175675 | Lock |
| TL | 515178013 | Male Terminal |
| TL | 515178023 | Housing |
| TPS | 515176176 | Housing |
| TPS | 710000335 | Terminal |
| TPS | 710000402 | Seal |
| VSS | 515176621 | Seal |
| VSS | 710000568 | Male terminal housing |
| VSS | 710000992 | Clip |
