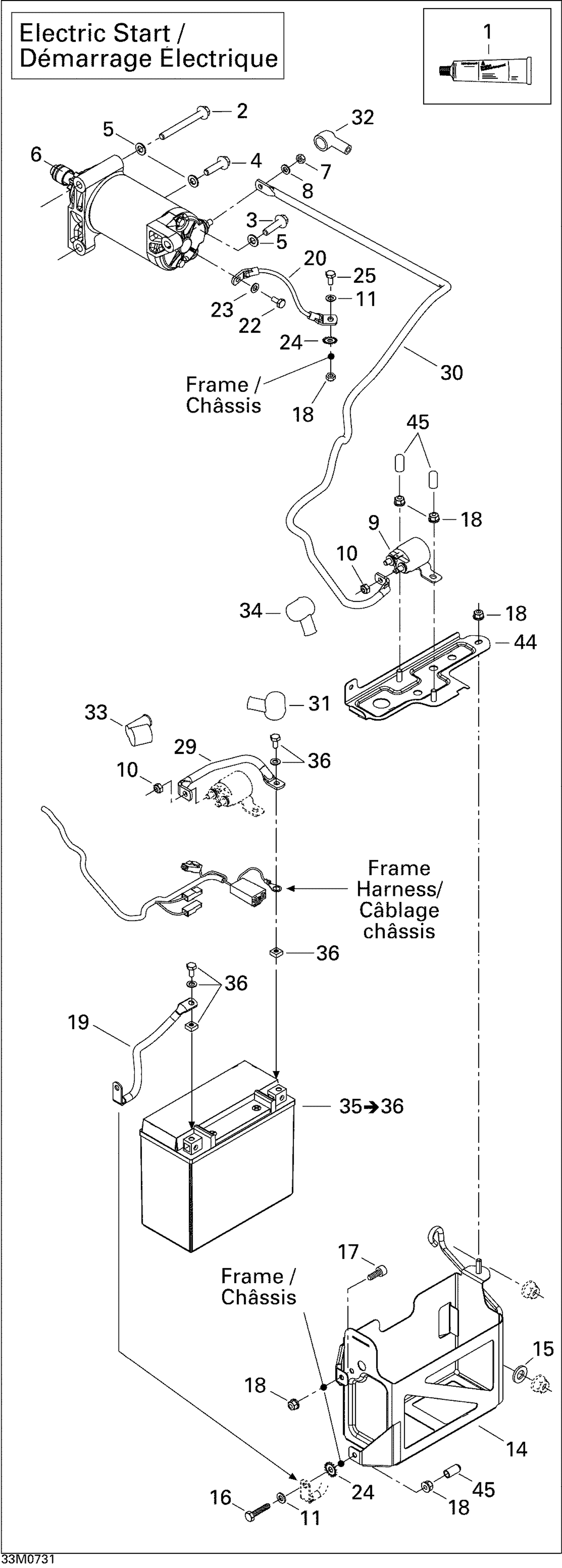

| Ref | Part Number | Description |
|---|
| 1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 2 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 3 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 4 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 5 |
250200008 |
Flat Washer With Teflon 8 mm |
| 6 |
515176133 |
Electric Starter Ass'y |
| 7 |
232561414 |
Elastic Stop Nut M6 |
| 8 |
234061410 |
Flat Washer 6 mm |
| 9 |
515176011 |
Starter Relay |
| 10 |
232561414 |
Elastic Stop Nut M6 |
| 11 |
234061410 |
Flat Washer 6 mm |
| 14 |
515176048 |
BATTERY SUPPORT - Call your local BRP dealership |
| 15 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 16 |
207162544 |
Hex. Screw M6 X 25 |
| 17 |
205061644 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
515176172 |
GROUND WIRE - Call your local BRP dealership |
| 20 |
515176277 |
GROUND WIRE - Call your local BRP dealership |
| 22 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 23 |
234061410 |
Flat Washer 6 mm |
| 24 |
250200041 |
Lock Washer Serrated M6 |
| 25 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 29 |
515175904 |
Battery Wire |
| 30 |
515176259 |
BATTERY WIRE - Call your local BRP dealership |
| 31 |
570151000 |
Protection Cap |
| 32 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 33 |
570064200 |
PROTECTION CAP - Call your local BRP dealership |
| 34 |
515175919 |
Protector Cap |
| 36 |
250000282 |
Battery Bolt Kit This part replaces 295500849. |
| 44 |
515175735 |
BATTERY STRIP - Call your local BRP dealership |
