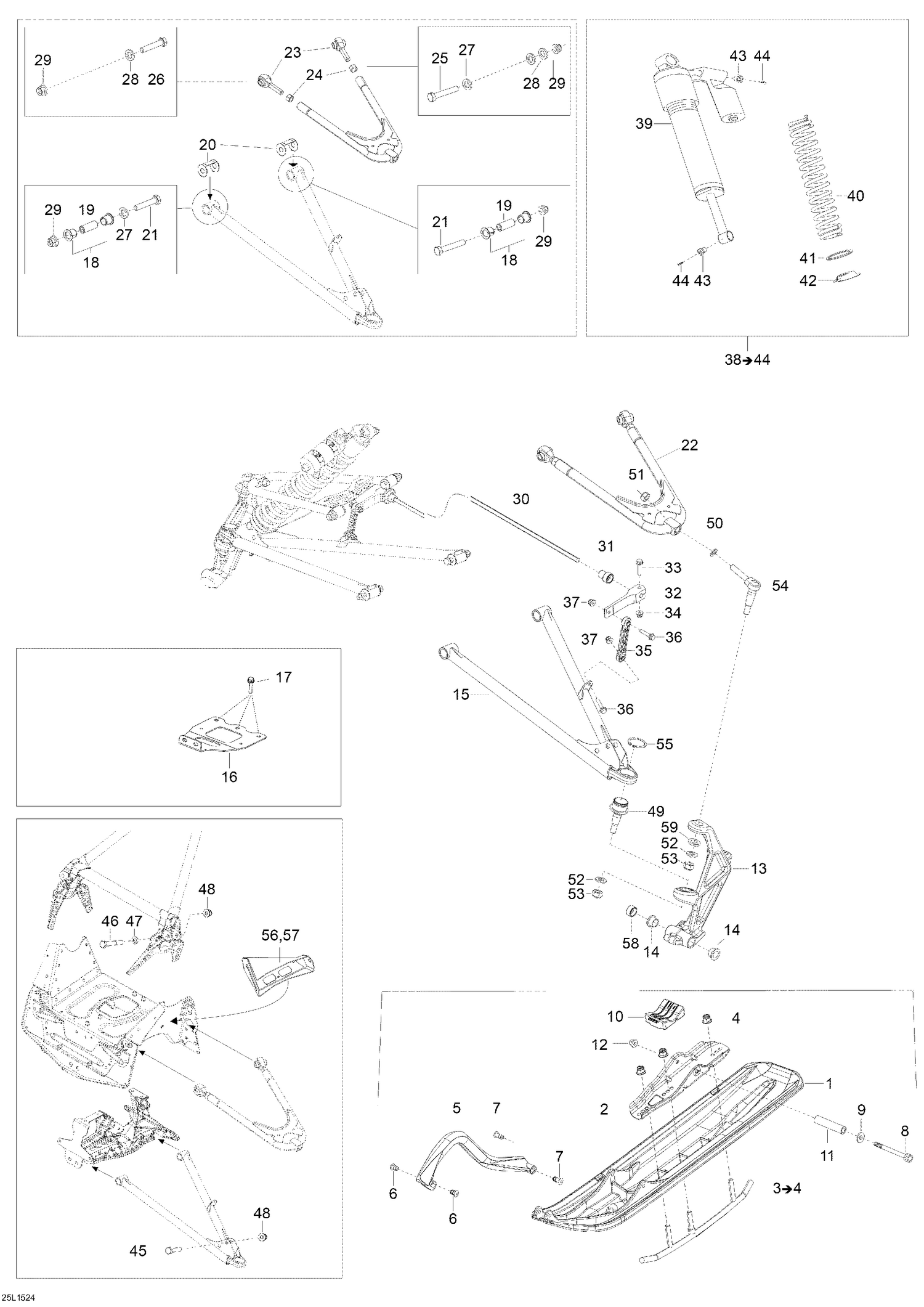

07- Front Suspension And Ski
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 860201017 | Blade Ski kit, red |
| 2 | 505073240 | Ski Bridge |
| 4 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 5 | 505073108 | Handle, white |
| 6 | 505071812 | Retainer 17mm long |
| 7 | 505072133 | Retainer 23mm Long |
| 8 | 231080044 | Socket HD Screw M10 x 100 |
| 9 | NOT | IN USE Washer NOT IN USE |
| 10 | 505073411 | Rubber Damper |
| 11 | 506133300 | Spacer |
| 12 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 13 | 505073362 | BLACK LH LEG SKI - Call your local BRP dealership |
| 13 | 505073363 | BLACK RH LEG SKI - Call your local BRP dealership |
| 14 | 505072690 | Leg Bushing |
| 15 | 505072654 | RH LOWER ARM - Call your local BRP dealership |
| 15 | 505072655 | LH LOWER ARM - Call your local BRP dealership |
| 16 | 505072584 | Lower Reinforcement Plate |
| 17 | 207182044 | Hex. Cap Screw M8 x 20 |
| 18 | 503191766 | Cushion |
| 19 | 505072401 | Aluminum Bushing |
| 20 | 505072634 | Wear Plate |
| 21 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 22 | 505073527 | LH UPPER ARM - Call your local BRP dealership |
| 22 | 505073528 | RH UPPER ARM - Call your local BRP dealership |
| 23 | 505073532 | BALL JOINT - Call your local BRP dealership |
| 24 | 232026414 | Hex. Nut M12 This part replaces 732610019. |
| 25 | 250000387 | SCREW HEX. M10 X 65 - Call your local BRP dealership |
| 26 | 250000387 | SCREW HEX. M10 X 65 - Call your local BRP dealership |
| 27 | 503189564 | Washer |
| 28 | 234001410 | Flat Washer 10 mm |
| 29 | 250100165 | Hex. Flanged Elastic Nut M10 |
| 30 | 505072602 | Stabilisator |
| 31 | 505072064 | Bushing |
| 32 | 505072394 | Stabilisator Lever |
| 33 | 207663046 | Hex. Flange Screw M6 X 30 |
| 34 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 35 | 505072204 | Sway Bar Double Joint Link |
| 36 | 207663046 | Hex. Flange Screw M6 X 30 |
| 37 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 39 | 505073694 | LH FRONT SHOCK - Call your local BRP dealership |
| 39 | 505073695 | RH FRONT SHOCK - Call your local BRP dealership |
| 40 | 505073537 | Spring (32,4 Nm.) |
| 41 | 706200793 | Cap |
| 42 | 505072635 | Spring Stopper |
| 43 | 505072753 | Adjustment Knob |
| 44 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 45 | 207005544 | Hex. Cap Screw M10 x 55 |
| 46 | 40020 | Hex. Cap Screw M10 x 65 |
| 47 | 503189564 | Washer |
| 48 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 49 | 505073636 | Ball Joint This part replaces 505072682. |
| 50 | 503189276 | Washer |
| 51 | 250100089 | Nut M12 |
| 52 | 503192491 | Washer |
| 53 | 250100089 | Nut M12 |
| 54 | 505073561 | Upper Ball Joint |
| 55 | 293370035 | Circlip |
| 56 | 518328012 | Reinforcement RH |
| 57 | 518328013 | Reinforcement LH |
