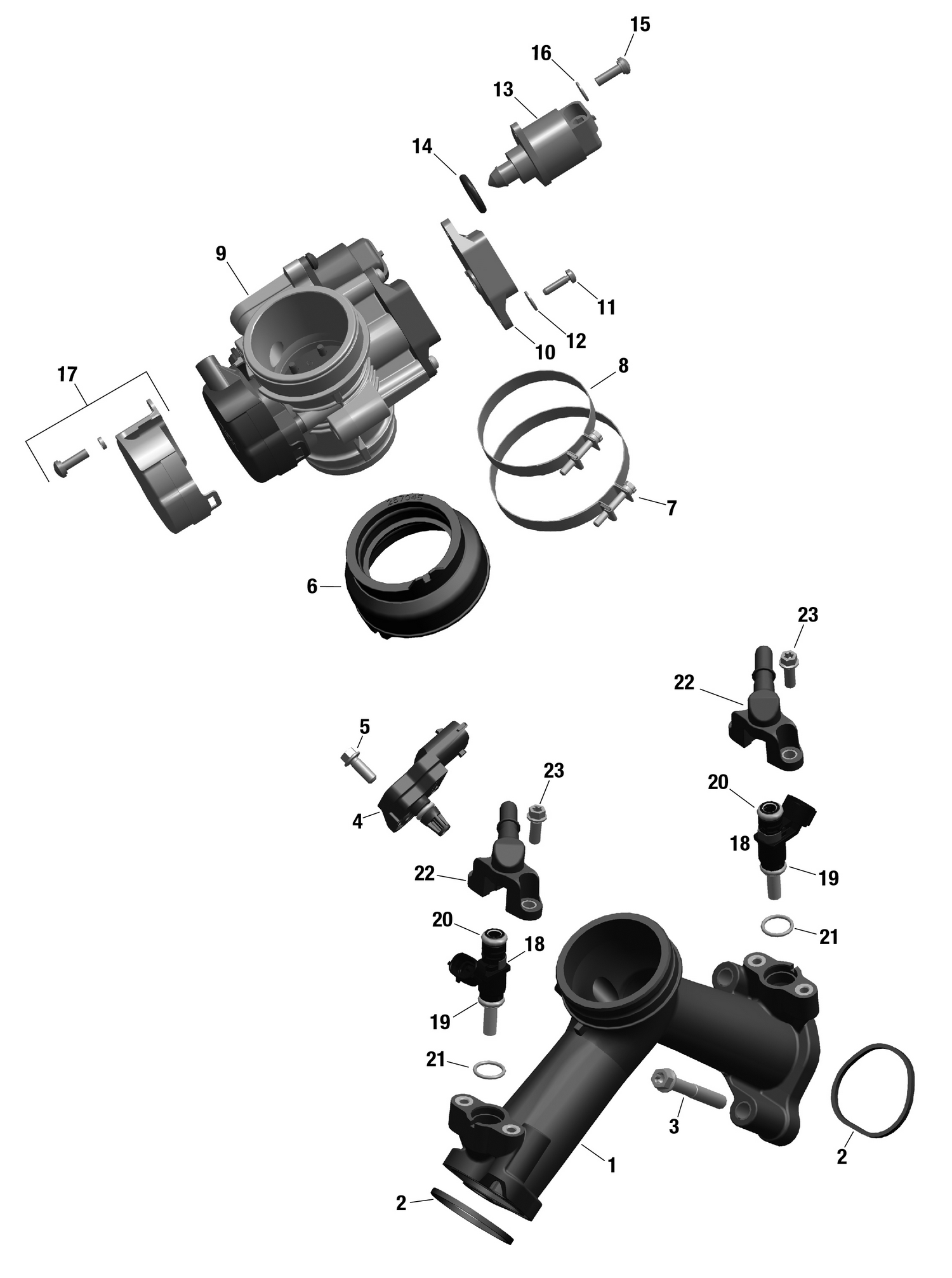

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667520 | Air Intake Manifold |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 707000995 | Pressure And Temperature Sensor This part replaces 420874650. |
| 5 | 420440149 | Hex. Flange Screw M6 X 12 |
| 6 | 420267045 | Intake Neck |
| 7 | 420251209 | Clamp |
| 8 | 420251480 | Clamp |
| 10 | 420866120 | Position Sensor This part replaces 270000251. |
| 11 | XXX | Not Available As Spare Parts |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 420665941 | Idle Air Control Valve |
| 14 | 420631780 | O-Ring |
| 15 | 420440911 | Binding Head Screw M5 X 16 |
| 16 | 420845710 | Snap Ring |
| 17 | 420281540 | Cover Kit |
| 19 | 420431890 | O-Ring |
| 20 | 420631220 | O-Ring |
| 22 | 420874901 | Fuel Rail |
