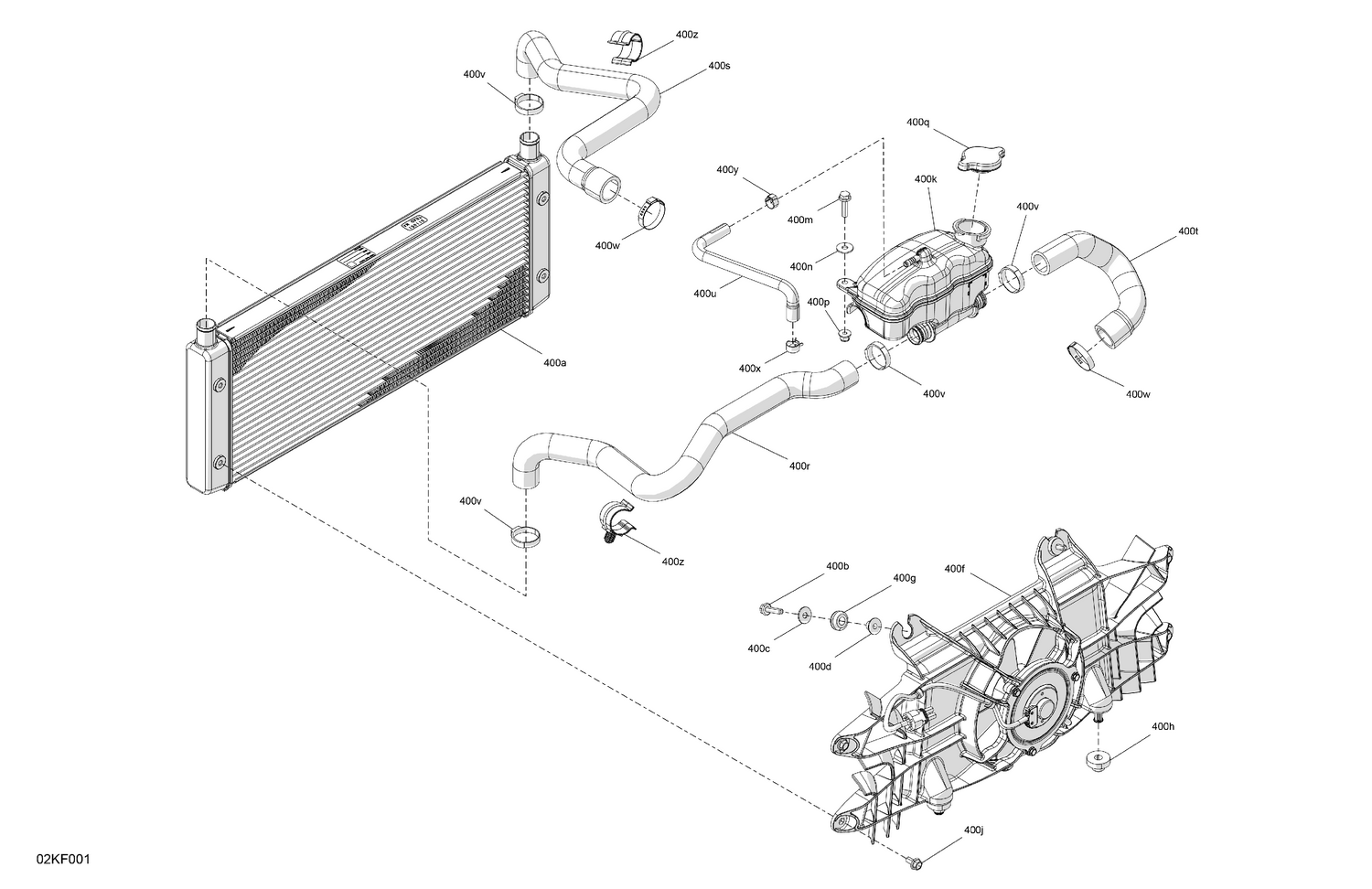

02- Engine - Cooling
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 400a | 709200724 | Radiator |
| 400b | 207662534 | Hex. Flange Screw M6 X 25 |
| 400c | 250200082 | Flat Washer |
| 400d | 709001288 | Bushing |
| 400f | 709200719 | Fan Ass'y With Shroud |
| 400g | 293720130 | Overmolded Grommet |
| 400h | 709200948 | Grommet |
| 400j | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 400k | 709200963 | Coolant Tank |
| 400m | 207662534 | Hex. Flange Screw M6 X 25 |
| 400n | 250200082 | Flat Washer |
| 400p | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 400q | 709200207 | Radiator Pressure Cap |
| 400r | 709201467 | Formed Radiator Hose |
| 400s | 709201468 | Formed Radiator Hose |
| 400t | 709201471 | Hose |
| 400u | 709201473 | Hose |
| 400v | 293650331 | Crimp Clamp |
| 400w | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 400x | 513033029 | Universal Spring Clamp |
| 400y | 293650046 | Oetiker Clamp |
