Parts Catalog

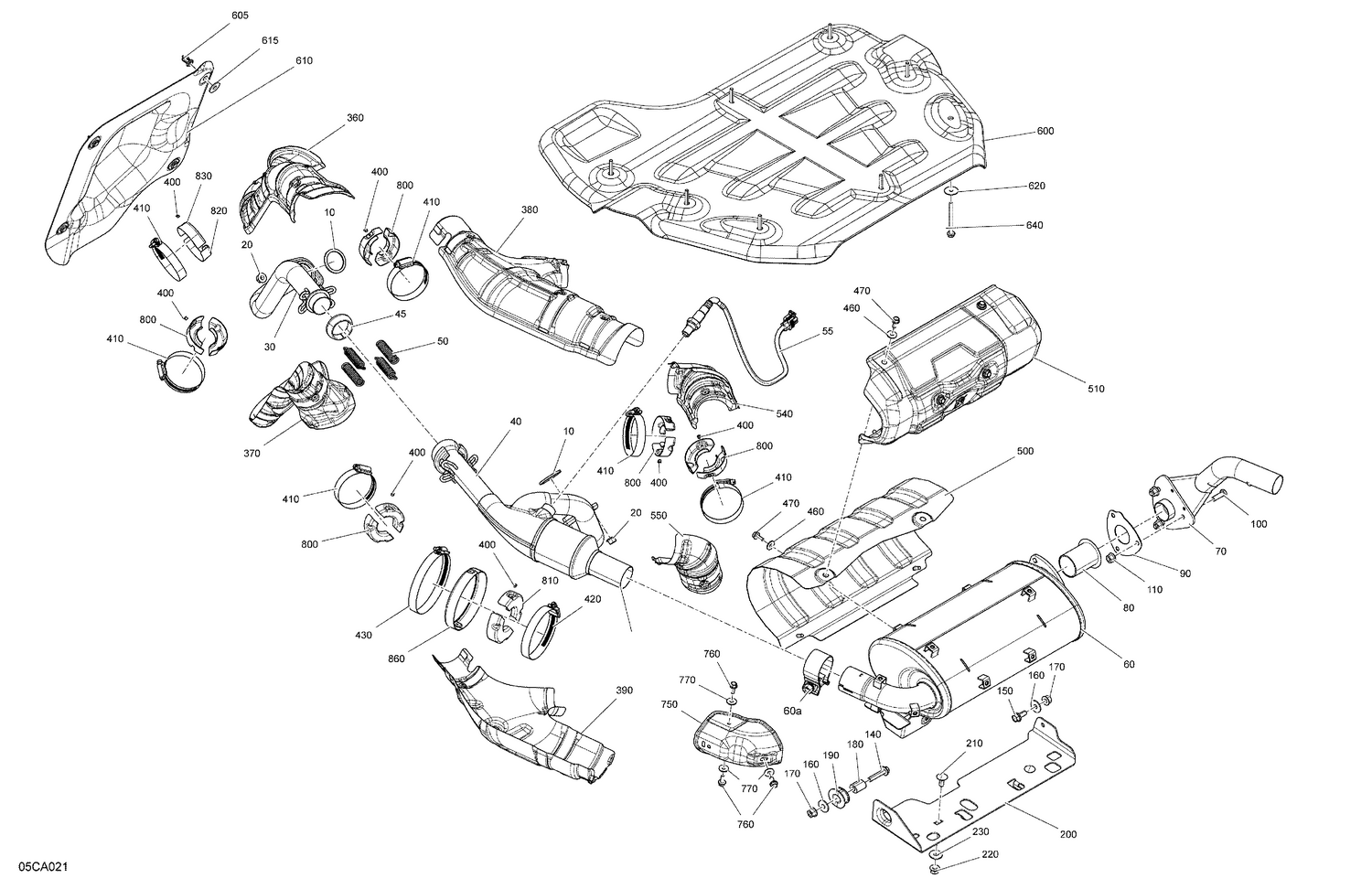

02- Engine - Exhaust

Parts (51)

Ref	Part Number	Description
10	707600317	Gasket
20	233081436	Hex. Flange Nut
30	707602039	Front Exhaust Pipe
40	707603331	Rear Exhaust Pipe This part replaces 707602628.
45	707601033	Exhaust Gasket
50	707601834	Spring
55	707600872	Oxygen Sensor
60a	293650228	Exhaust Pipe Clamp
70	707602520	Tail Pipe
80	707601803	Spark Arrester
90	707602205	Gasket
100	207182546	Hex. Screw Cap DIN.933
110	233081436	Hex. Flange Nut
140	207684044	Hex. Flange Screw M8 X 40
150	207682044	Hex. Flange Screw M8 X 20
160	234082410	Flat Washer 8 mm
170	233081436	Hex. Flange Nut
180	707601969	Spacer
190	707602102	Rubber Mount
200	707601588	Muffler Support
210	207782044	Carriage Bolt, M8 X 20
220	233081436	Hex. Flange Nut
230	234082410	Flat Washer 8 mm
360	707601923	Heat Shield, Front
370	707602403	Front Heat Shield
380	707601925	Heat Shield
390	707601926	Heat Shield
400	293150071	Pop Rivet 1/8 X
410	293650258	Tridon Gear Clamp
420	293650250	Tridon Gear Clamp
430	293650261	Tridon Gear Clamp
460	234062410	Flat Washer 6 mm
470	250000906	Hex Flange Screw M6 X 16
500	707601521	Heat Shield
510	707602041	Heat Shield
540	707601927	Heat Shield, Rear
550	707601928	Heat Shield, Rear
600	707603178	Heat Shield
605	293150230	Tuflok Plastic Rivet
610	707602043	Heat Shield
615	234082410	Flat Washer 8 mm
620	224060251	Washer
640	207563544	Hex. Flange Screw S.Grip M6 X 35
750	707602532	Heat Shield
760	250000906	Hex Flange Screw M6 X 16
770	234062410	Flat Washer 6 mm
800	707602026	Exhaust Pipe Spacer
805	707602138	Exhaust Pipe Spacer
810	707602027	Exhaust Pipe Spacer
820	707601948	Exhaust Pipe Spacer
830	707602016	Exhaust Pipe Spacer
