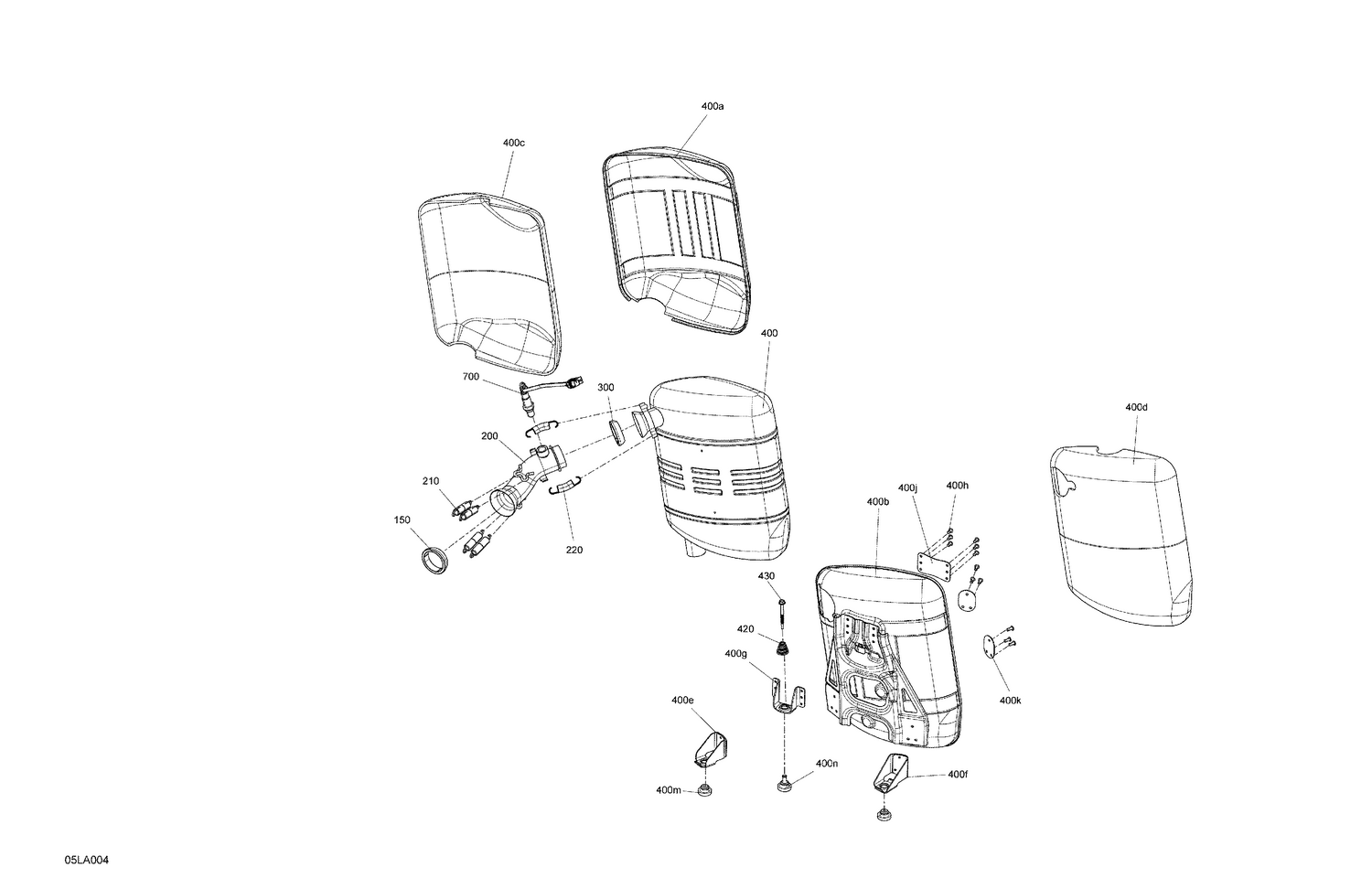

02- Engine - Exhaust
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 514054174 | Exhaust Gasket |
| 200 | 514055466 | Pipe |
| 210 | 707601834 | Spring |
| 220 | 514055198 | Spring |
| 300 | 514054174 | Exhaust Gasket |
| 400a | 514055981 | RH Deflector |
| 400b | 514055482 | LH Deflector |
| 400c | 514055711 | RH Wool |
| 400d | 514055712 | LH Wool |
| 400e | 514055485 | Front Support |
| 400f | 514055486 | Rear Support |
| 400g | 514055406 | Support |
| 400h | 293150200 | Interlocks Rivet 4.8 X 25.45 Black |
| 400j | 514055499 | Backing Plate |
| 400k | 514055500 | Backing Plate |
| 400m | 514055203 | Stopper |
| 400n | 514056138 | Stopper Ass'y |
| 420 | 514055282 | Spring |
| 430 | 250000926 | Hex. Flanged Screw M6 |
