Parts Catalog

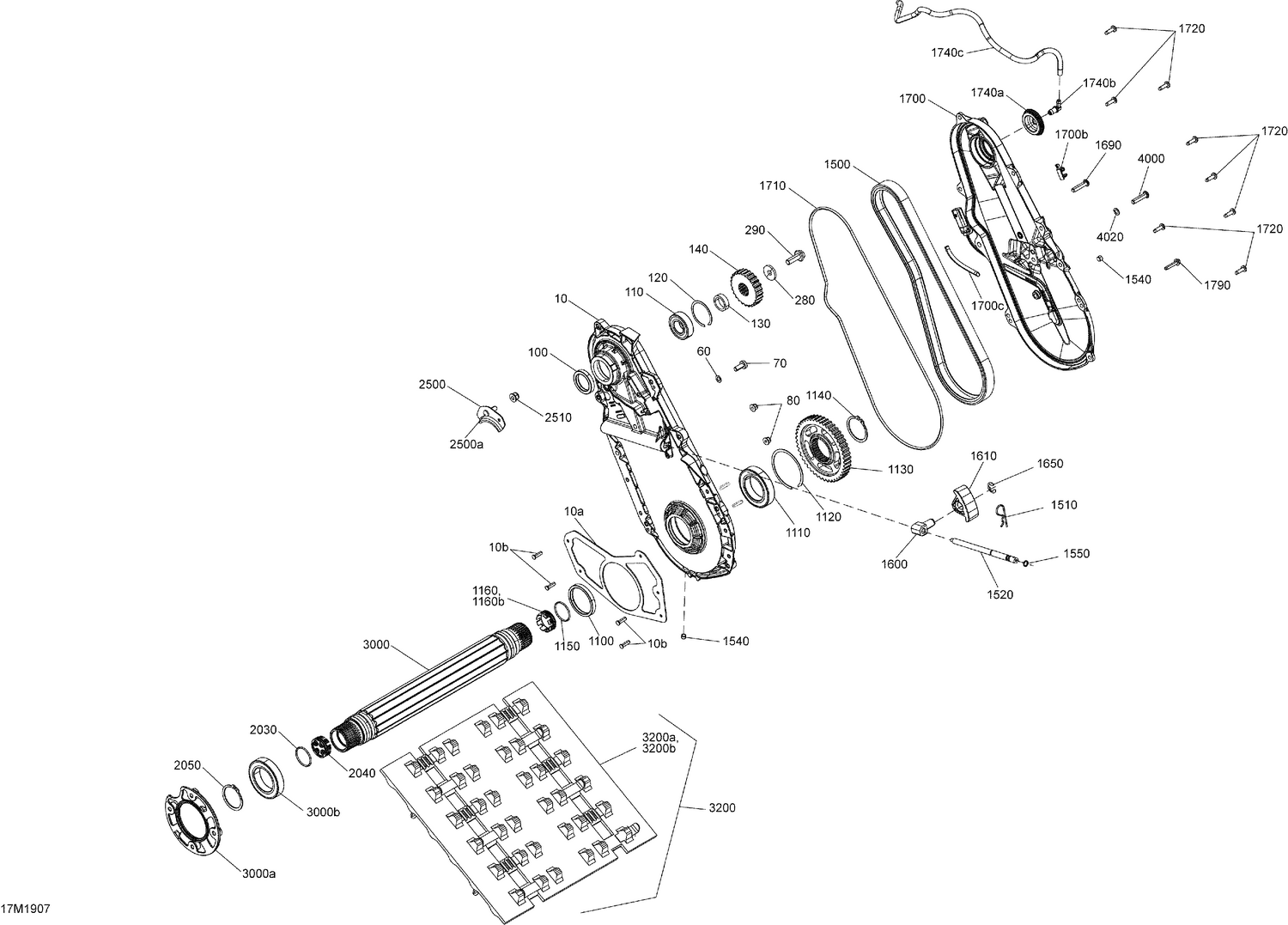

05- Drive - 154 - 850 E-TEC - 000VCKD00

Parts (47)

Ref	Part Number	Description
10a	504153560	Plate Ass'y
10b	233261434	Flange Elastic Nut M6
60	504082900	Washer
70	250000740	Torx Screw M8 X 20, Scotch Grip
80	233261434	Flange Elastic Nut M6
100	293200168	Oil Seal
110	293350115	Ball Bearing
120	504152576	Circlip
130	504152628	Shim
140	504153910	Sprocket 21 Teeth This part replaces 504096200.
280	504152784	Spring Washer M10
290	207503046	Hex. Flange Screw M10 X 30, Scotch Grip
1100	293200159	Oil Seal
1110	293350059	Ball Bearing
1120	504152582	Circlip
1130	861805539	Kit Sprocket This part replaces 504152581.
1140	504152572	Circlip
1150	293300201	O-Ring
1160a	504153697	Magnetic Cap
1500	504153393	Drive Chain, 114 Links
1510	414575600	Hair Pin
1520	504153760	Adjustment Screw
1540	250500013	Hex. Countersunk Drain Plug This part replaces 250500012.
1545	504153704	Magnetic Plug
1550	293300202	O-Ring
1600	504153559	Tensioner
1610	504153312	Slider Chain
1650	293370105	Circlip
1690	250000764	Hex. Button Head Screw M8 X 1.25 X 35
1700b	515178223	Clip Connector
1700c	415130141	Braided Sleeve
1710	293300200	O-Ring
1720	250001012	Torx T-30 Pan HD Taptite M6X20
1740a	504152860	Cap
1740b	414580700	Male Connector
1740c	219704410	Polyurethane Hose 10000Mm Long
1790	250001015	Hex. Flange Screw M6 X 35
2030	293300201	O-Ring
2040	504153697	Magnetic Cap
2050	504152572	Circlip
2500a	250300028	Clinch Stud, M8 X 25
2510	233281414	Hex. Flange Elastic Nut M8
3000a	504153886	Retaining Ring This part replaces 504153426.
3000b	293350059	Ball Bearing
3200a	415129528	Track Guide
3200b	504152651	Cleat This part replaces 415129529.
4000	250000764	Hex. Button Head Screw M8 X 1.25 X 35
