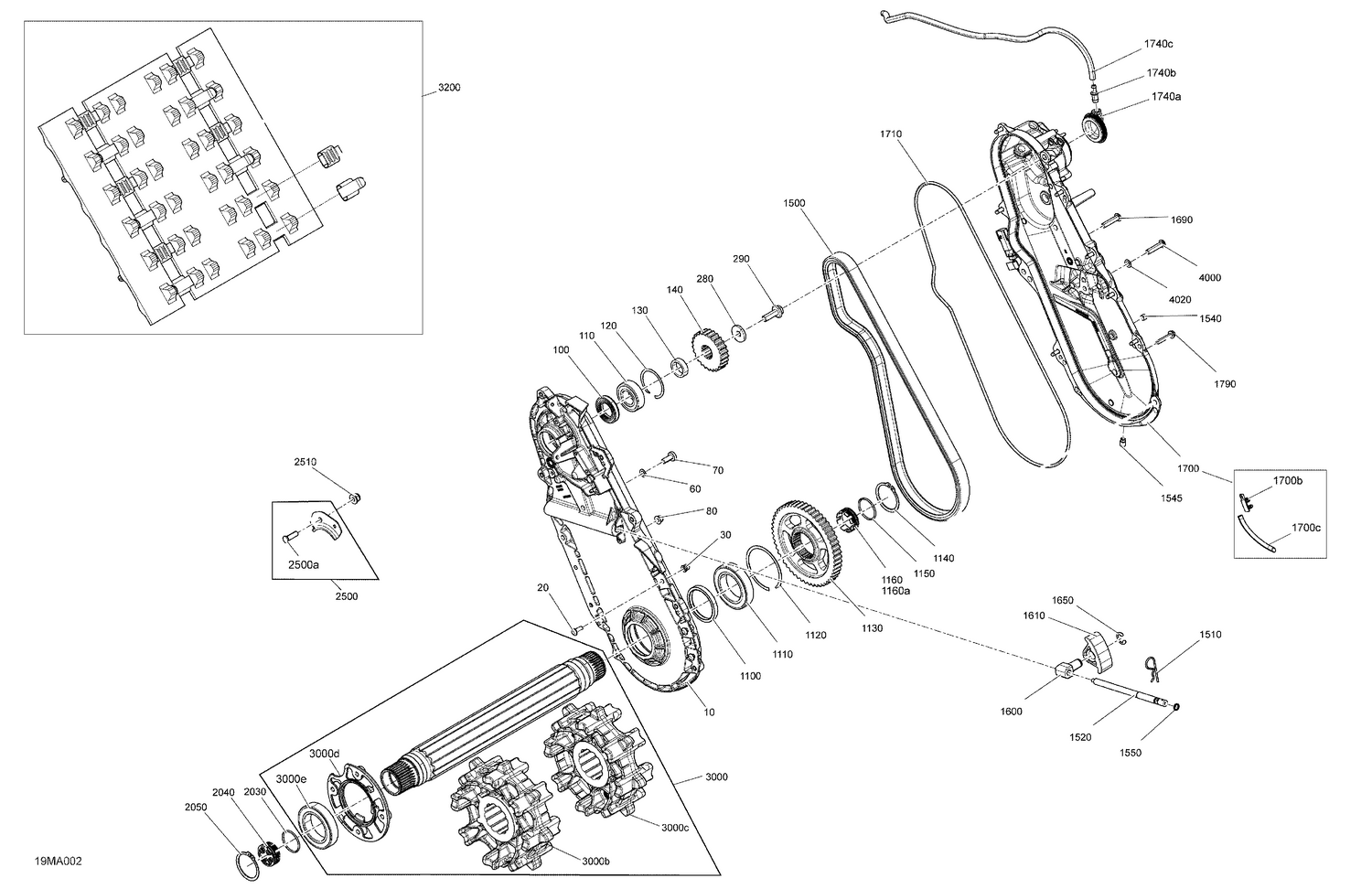

| Ref | Part Number | Description |
|---|
| 10 |
504154227 |
Black, Chain Case Ass'y |
| 20 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 30 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 60 |
504082900 |
Washer |
| 70 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 80 |
233261434 |
Flange Elastic Nut M6 |
| 100 |
293200168 |
Oil Seal |
| 110 |
293350115 |
Ball Bearing |
| 120 |
504152576 |
Circlip |
| 130 |
504152628 |
Shim |
| 140 |
504152031 |
Sprocket, 19 Teeth |
| 280 |
504152784 |
Spring Washer M10 |
| 290 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 1100 |
293200159 |
Oil Seal |
| 1110 |
293350059 |
Ball Bearing |
| 1120 |
504152582 |
Circlip |
| 1130 |
504153998 |
Sprocket 53 Teeth |
| 1140 |
504152572 |
Circlip |
| 1150 |
293300201 |
O-Ring |
| 1160a |
504154043 |
Cap |
| 1500 |
504153397 |
Drive Chain 116 Links |
| 1510 |
414575600 |
Hair Pin |
| 1520 |
504153760 |
Adjustment Screw |
| 1540 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1545 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1550 |
293300202 |
O-Ring |
| 1600 |
504153559 |
Tensioner |
| 1610 |
504153312 |
Slider Chain |
| 1650 |
293370105 |
Circlip |
| 1690 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
| 1700b |
515178223 |
Clip Connector |
| 1700c |
415130141 |
Braided Sleeve |
| 1710 |
293300200 |
O-Ring |
| 1740a |
504152860 |
Cap |
| 1740b |
414580700 |
Male Connector |
| 1740c |
219704410 |
Polyurethane Hose 10000Mm Long |
| 1790 |
250001015 |
Hex. Flange Screw M6 X 35 |
| 2030 |
293300201 |
O-Ring |
| 2040 |
504154043 |
Cap |
| 2050 |
504152572 |
Circlip |
| 2500a |
250300028 |
Clinch Stud, M8 X 25 |
| 2510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3000b |
504153880 |
Sprocket, 8 Teeth |
| 3000c |
504153881 |
Sprocket, 8 Teeth |
| 3000d |
504153886 |
Retaining Ring |
| 3000e |
293350059 |
Ball Bearing |
| 3200 |
504154391 |
Track 16 X 154 X 1,5 This part replaces 504152761. |
| 4000 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 |
