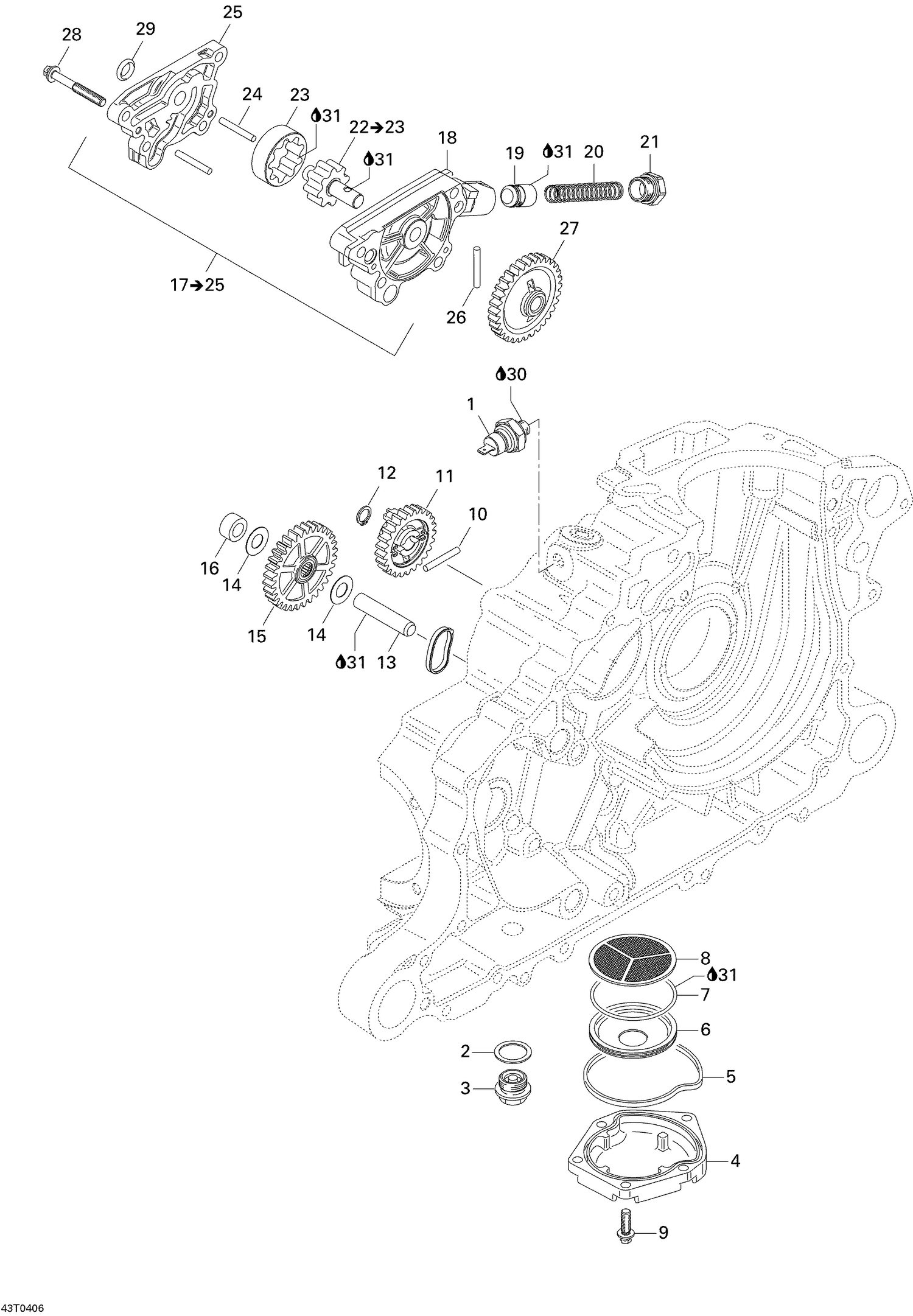

| Ref | Part Number | Description |
|---|
| 1 |
710000313 |
OIL PRESSURE SWITCH - Call your local BRP dealership |
| 2 |
420552280 |
Crush Washer |
| 3 |
420840278 |
Drain Plug M18 X 1.5 This part replaces 420840277. |
| 4 |
420211940 |
OIL SIEVE COVER - Call your local BRP dealership |
| 5 |
420650560 |
Rubber Ring |
| 6 |
420256650 |
Oil Collector |
| 7 |
420650697 |
O-Ring This part replaces 420650695. |
| 8 |
420256576 |
Oil Sieve This part replaces 420256575. |
| 9 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 10 |
420232431 |
Needle Pin This part replaces 420232430. |
| 11 |
420635191 |
Idle Gear, 25 Teeth |
| 12 |
420245330 |
Snap Ring |
| 13 |
420229300 |
LOCATION PIN - Call your local BRP dealership |
| 14 |
420927952 |
THRUST WASHER - Call your local BRP dealership |
| 15 |
420834267 |
SPROCKET, 32 TEETH - Call your local BRP dealership |
| 16 |
420247080 |
SPACER - Call your local BRP dealership |
| 18 |
420610221 |
Oil Pump Housing This part replaces 420610220. |
| 19 |
420256922 |
Piston Valve This part replaces 420256921. |
| 20 |
420238220 |
Compression Spring |
| 21 |
420641167 |
Plug Screw M16 |
| 23 |
420256935 |
Oil Pump Outer Rotor |
| 24 |
420232431 |
Needle Pin This part replaces 420232430. |
| 25 |
420610210 |
Oil Pump Cover |
| 26 |
420232431 |
Needle Pin This part replaces 420232430. |
| 27 |
420635220 |
Oil Pump Gear, 32 Teeth |
| 28 |
420440324 |
Torx Flange Screw M6 X 45 This part replaces 420440322. |
| 29 |
420250405 |
O-RING - Call your local BRP dealership |
| 30 |
293800060 |
Loctite 243, 10 ml |
