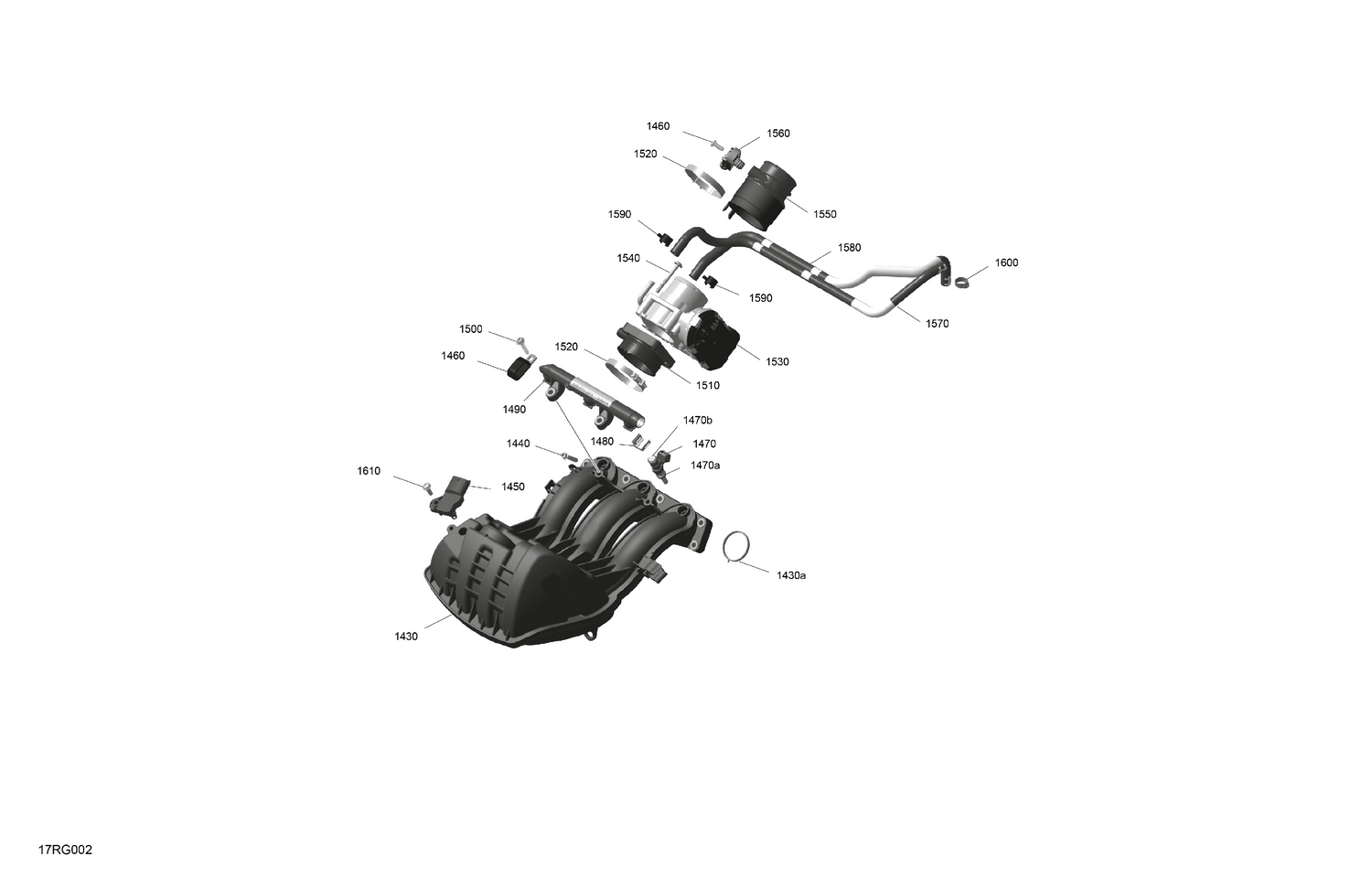

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1430a | 420431662 | Gasket |
| 1440 | 420440647 | Flanged Torx Screw M6 X 30 |
| 1450 | 420874651 | Pressure And Temperature Sensor |
| 1460 | 420841103 | Flanged Torx Screw M6 X 20 |
| 1470a | 420831050 | O-Ring |
| 1470b | 420430775 | O-Ring |
| 1480 | 420853030 | Clip |
| 1490 | 420874966 | Fuel Rail |
| 1500 | 420441575 | Flanged Torx Screw M6 X 30 |
| 1510 | 420867110 | Connecting Socket |
| 1520 | 420251834 | Hose Clamp 45-65/9 |
| 1530 | 420893148 | Throttle Body Ass'y |
| 1540 | 420441588 | Flanged Torx Screw M6 X 50 |
| 1550 | 420867556 | Connecting Socket |
| 1560 | 420274052 | Pressure Sensor |
| 1570 | 420201506 | Molded Hose |
| 1580 | 420201500 | Molded Hose (Water In) |
| 1590 | 420853511 | Clamp |
