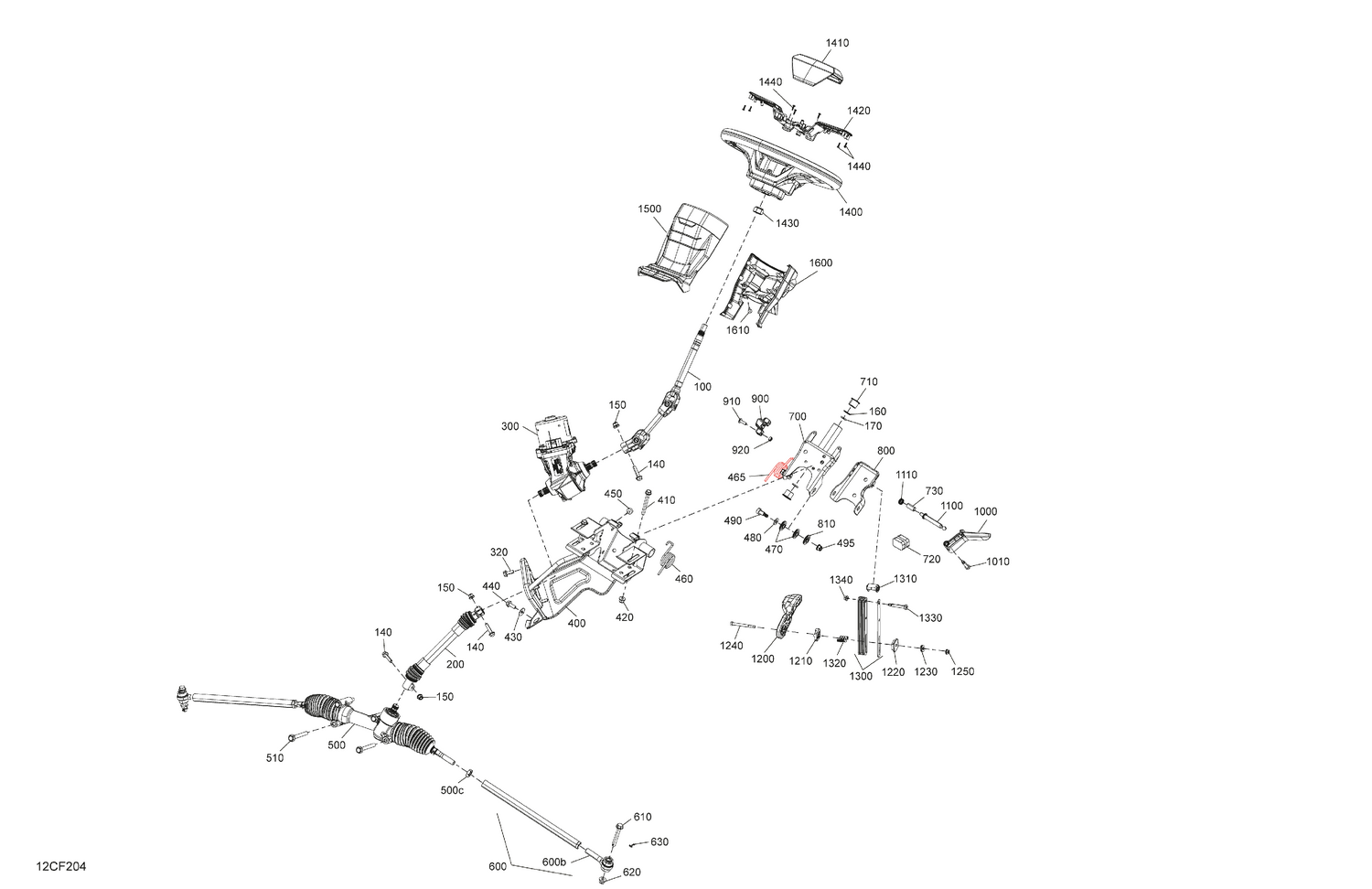

03- Mechanic - Steering
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 709402867 | Steering Column |
| 140 | 250001021 | Hex. Flange Screw M8 X 35 |
| 150 | 233281416 | Hex. Elastic Flange Nut M8 |
| 160 | 293370110 | Circlip |
| 170 | 293300144 | O-Ring |
| 200 | 709403014 | Steering Column |
| 300 | 709403006 | Power Steering Ass'y |
| 320 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 400 | 709402884 | Power Steering Support |
| 410 | 207687544 | Hex. Flange Screw M8 X 75 |
| 420 | 233281416 | Hex. Elastic Flange Nut M8 |
| 430 | 234082670 | Stainless Steel Flat Washer |
| 440 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 450 | 708003866 | Seat Stopper |
| 460 | 709403016 | LH Torsion Spring |
| 465 | 709403017 | RH Torsion Spring |
| 470 | 709402895 | Bushing |
| 480 | 234001410 | Flat Washer 10 mm |
| 490 | 709403059 | Socket Head Shoulder Screw |
| 495 | 233281416 | Hex. Elastic Flange Nut M8 |
| 500c | 715900238 | Steering Rod Nut |
| 510 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 600b | 709401991 | Ball Joint |
| 610 | 250000814 | Screw Hex Cap M10 X 75 |
| 620 | 233201466 | Flange Elastic Nut M10 |
| 630 | 211400017 | Cotter Pin |
| 700 | 709402898 | Steering Wheel Support |
| 710 | 709402725 | Steering Bushing |
| 720 | 709403455 | Rubber Stopper |
| 730 | 709403054 | Bushing |
| 800 | 709402879 | Mechanism Support |
| 810 | 709402895 | Bushing |
| 900 | 709403161 | Sliding Block |
| 910 | 250000722 | Torx Screw M6 X 20 |
| 920 | 232862412 | Square Nut M6 |
| 1000 | 709402896 | Coastal Gray, Latch Lever |
| 1010 | 709403007 | Socket Head Shoulder Screw S.Grip |
| 1100 | 709402897 | Locking Pin |
| 1110 | 709403070 | Compression Spring |
| 1200 | 709403141 | Coastal Gray, Latch Lever |
| 1210 | 709403143 | Locking Cam |
| 1220 | 709402658 | Latch Stopper |
| 1230 | 709403015 | Thrust Washer |
| 1240 | 207267044 | Hex. Screw S.Grip M6 X 70 |
| 1250 | 233061414 | Hex. Flange Nut M6 |
| 1300 | 709403414 | Lock Plate |
| 1310 | 709402709 | Lower Spacer |
| 1320 | 709402660 | Washer |
| 1330 | 709403007 | Socket Head Shoulder Screw S.Grip |
| 1340 | 233061414 | Hex. Flange Nut M6 |
| 1400 | 709403416 | Steering Wheel |
| 1410 | 709402880 | Central Steering Wheel Trim |
| 1420 | 709402881 | Deep Black, Steering Wheel Trim |
| 1430 | 232511414 | Elastic Lock Nut M16 |
| 1440 | 250001234 | Screw Plastite Torx K30 X 12 |
| 1500 | 707901197 | Upper Steering Column Trim |
| 1600 | 707901198 | Lower Steering Column Trim |
