Parts Catalog

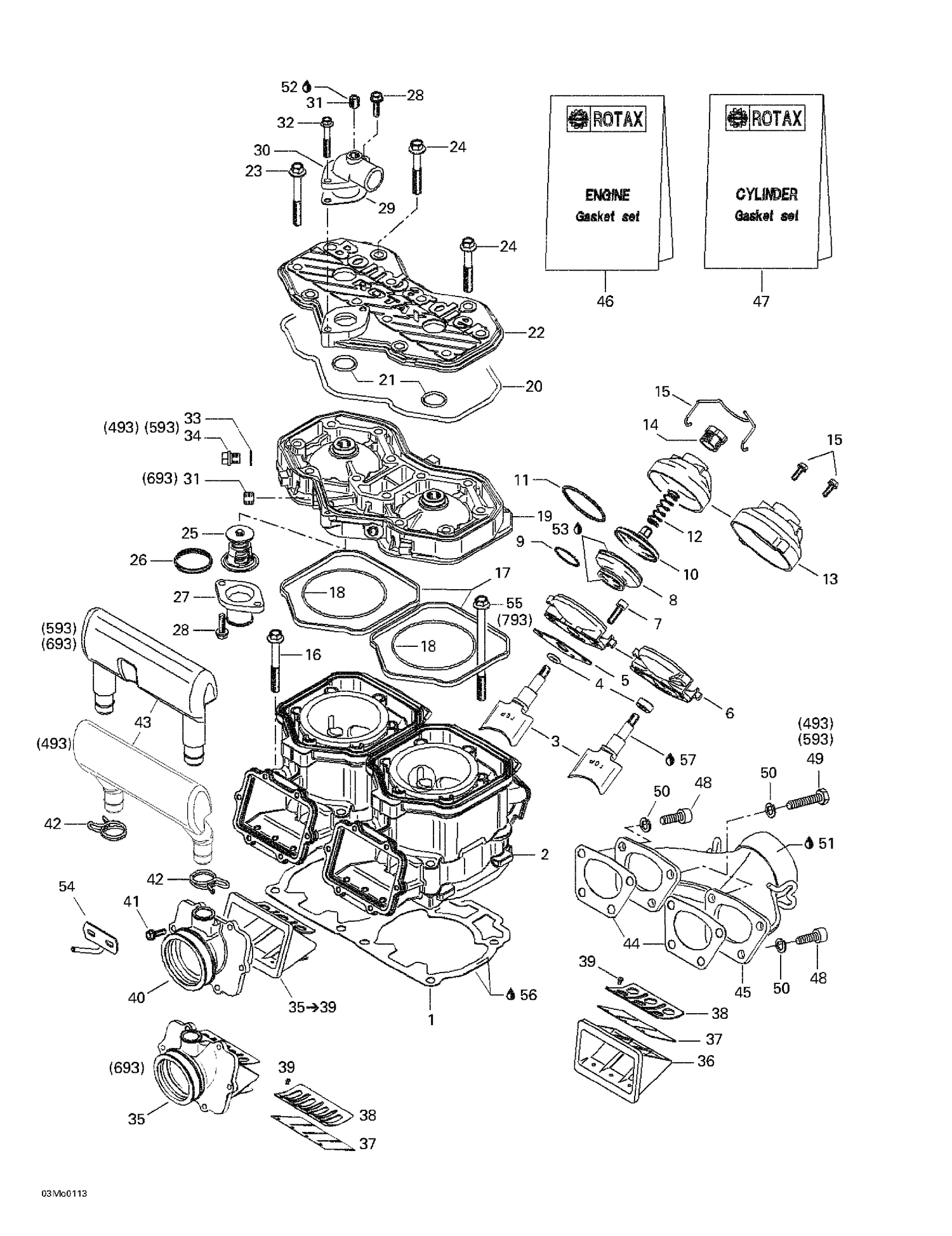

01- Cylinder, Exhaust Manifold, Reed Valve

Parts (35)

Ref	Part Number	Description
2	421000568	REBUILD-CYLINDER 493 2000 - Call your local BRP dealership
5	420250239	Gasket
7	205062044	Socket Head Screw M6 X 20
8	420260723	Exhaust Bellows This part replaces 290260723.
9	420838255	Hose Spring This part replaces 420838253.
10	420854449	Exhaust Valve
11	420939281	Hose Spring This part replaces 290239048.
14	420241221	Adjuster Screw
17	420931590	Rubber Ring
20	420950320	O-Ring This part replaces 290950320.
21	420430782	O-Ring
22	420923465	CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
23	420841307	Hex. Collar Screw M8 X 65 This part replaces 420841306.
24	420941627	Hex. Screw M8 X 56.5 This part replaces 420941621.
25	420922519	Thermostat This part replaces 420922515.
26	420931270	SEALING RING - Call your local BRP dealership
27	420922025	BENT OUTLET SOCKET - Call your local BRP dealership
28	420941251	SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
29	420850339	Gasket This part replaces 420850338.
30	420922062	BENT OUTLET SOCKET - Call your local BRP dealership
31	420240480	PLUG SCREW - Call your local BRP dealership
32	420941451	HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
41	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
42	420851440	CLAMP - Call your local BRP dealership
51	293800090	Sealant, Loctite, 80 ml This part replaces 413710300.
52	293800060	Loctite 243, 10 ml
53	413707000	Dow Corning 111, 150 g
54	512059369	Carburetor Bracket
420841555	Hex.	Tapping Screw M5 X 20 420841555
420841555	Vis	Hex. À Épaulement M5 X 20 420841555
420854266	Boîtier	De Valve 420854266
420854266	Valve	Housing 420854266
420911552	Couvercle	De Soupape 420911552
420911552	Valve	Cover 420911552
420950732	Oil	Seal This part replaces 420950730. 420950732
