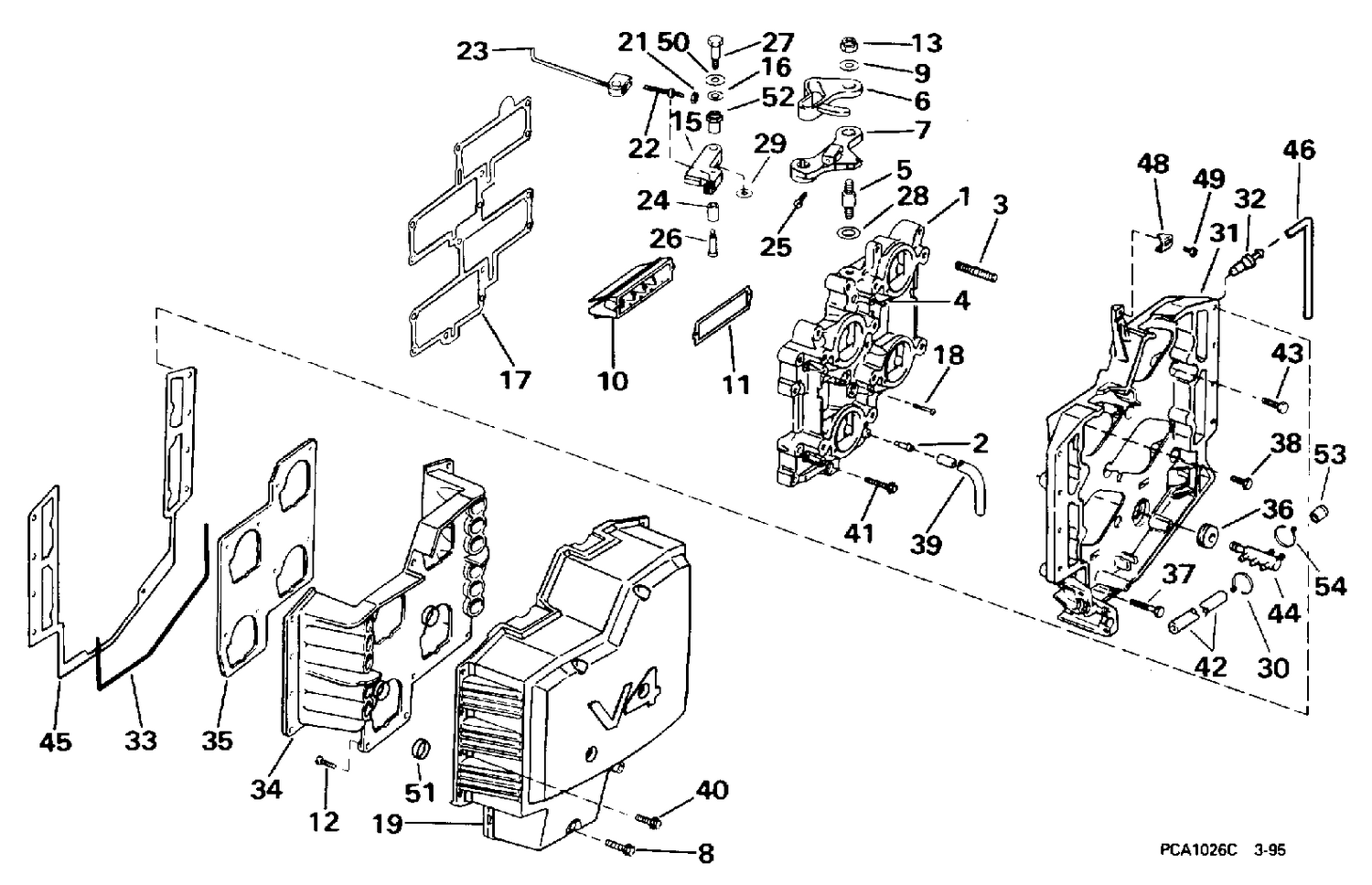

| Ref | Part Number | Description |
|---|
| 1 |
0437337 |
INTAKE MANIFOLD ASSY. |
| 3 |
0310872 |
STUD |
| 5 |
0333585 |
STUD, Throttle cam |
| 6 |
0333973 |
CAM, Spark |
| 7 |
0333974 |
CAM, Throttle |
| 8 |
0331102 |
SCREW, Coil to block |
| 10 |
0396201 |
LEAF PLATE ASSY. |
| 11 |
0328626 |
GASKET, Leaf plate |
| 15 |
0341026 |
LEVER, Spark |
| 17 |
0328622 |
GASKET, Manifold to crankcase |
| 18 |
0321707 |
SCREW, Leaf plate |
| 19 |
0436279 |
COVER & PLUG AY., Air silencer |
| 22 |
0333584 |
PIN, Slide adjustment |
| 23 |
0431822 |
PIVOT PIN & SLIDE |
| 24 |
0333589 |
ROLLER, Spark lever |
| 26 |
0341022 |
SCREW, Spark lever roller |
| 27 |
0333591 |
SCREW, Spark lever |
| 29 |
0305940 |
WASHER |
| 30 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 31 |
0432950 |
BASE, Air silencer |
| 33 |
SEAL, |
Cover to base, 14 1/2 in. (363mm) |
| 34 |
0339109 |
BAFFLE, Air silencer cover |
| 35 |
0339224 |
SEAL, Baffle to carb. |
| 37 |
0314610 |
SCREW |
| 39 |
0329695 |
HOSE |
| 40 |
0909533 |
SCREW, Pressure relief valve cover |
| 41 |
0307471 |
SCREW |
| 42 |
0331526 |
HOSE, Manifold to #1 carb. |
| 42 |
HOSE, |
Manifold to #2 carb., 5 1/2 in. (140mm |
| 43 |
0322831 |
SCREW |
| 44 |
0394385 |
FUEL MANIFOLD |
| 45 |
0331101 |
GASKET, Cover to base |
| 46 |
HOSE, |
Bearing vent, 9 1/2 in. (242mm) |
| 48 |
0343985 |
POINTER, Timing This part replaces 0341513. |
| 49 |
0328696 |
SCREEN, Ground lead |
| 51 |
0339263 |
SEAL, Cover to baffle |
| 53 |
0333264 |
CAP, Fuel manifold |
