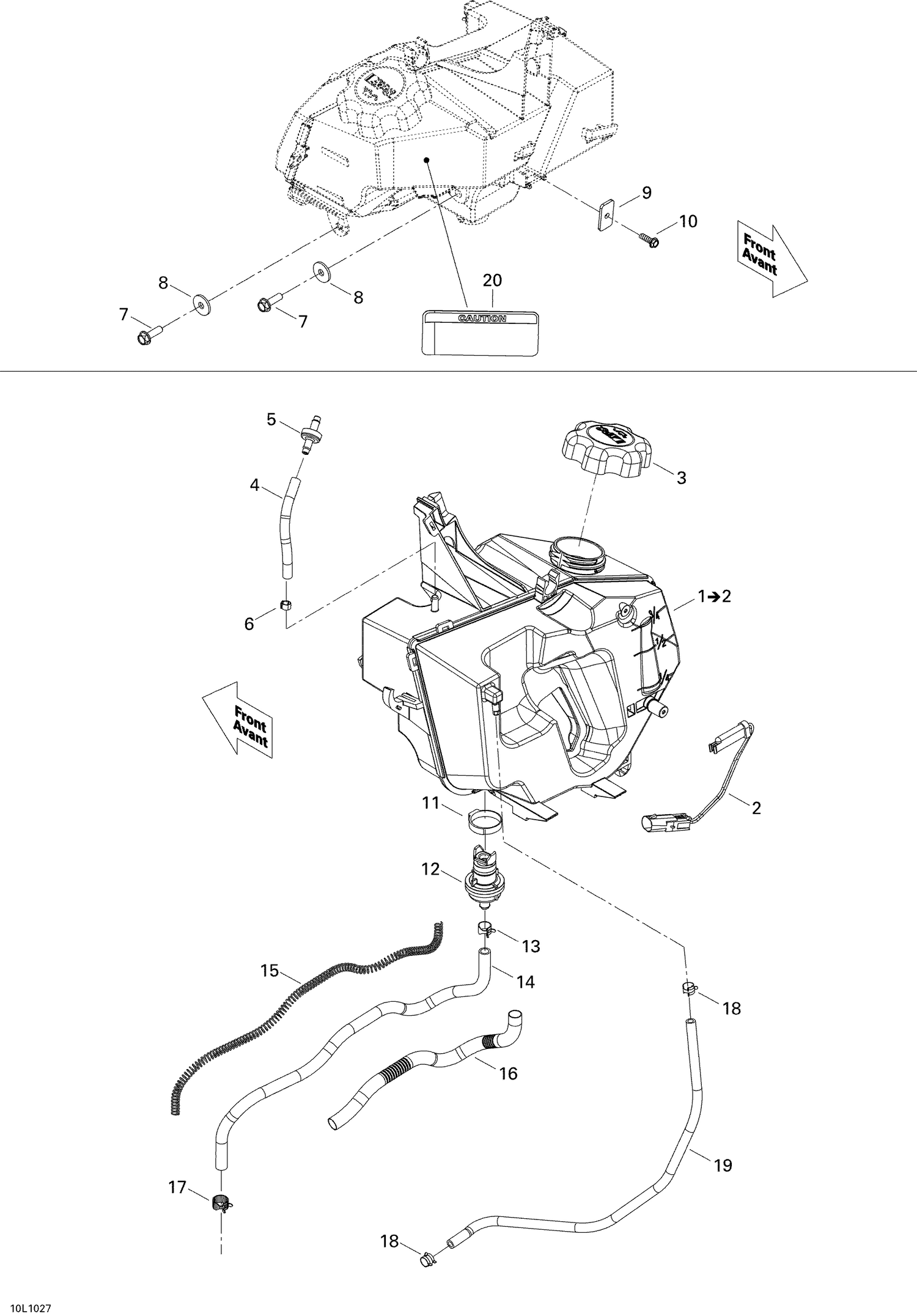

02- Oil System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515176508 | Level Sensor |
| 3 | 519000194 | CAP - Call your local BRP dealership |
| 4 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 5 | 275500398 | Check Valve |
| 6 | 414554800 | Spring Clamp |
| 7 | 250000331 | Hex. Head Flanged Forming Screw M6X20 |
| 8 | 224061201 | Flat Washer |
| 9 | 519000179 | Bracket |
| 10 | 241151640 | Hex. Flanged Screw K50 X 16 |
| 11 | 293650099 | Oetiker Gear Clamp |
| 12 | 519000242 | Oil Filter |
| 13 | 414415200 | Universal Spring Clamp |
| 14 | 415080700 | Polyurethane Hose, 8 mm |
| 15 | 519000196 | Spring |
| 16 | 415079900 | Tubing 10 mm |
| 17 | 414420700 | Universal Spring Clamp |
| 18 | 414554800 | Spring Clamp |
| 19 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
