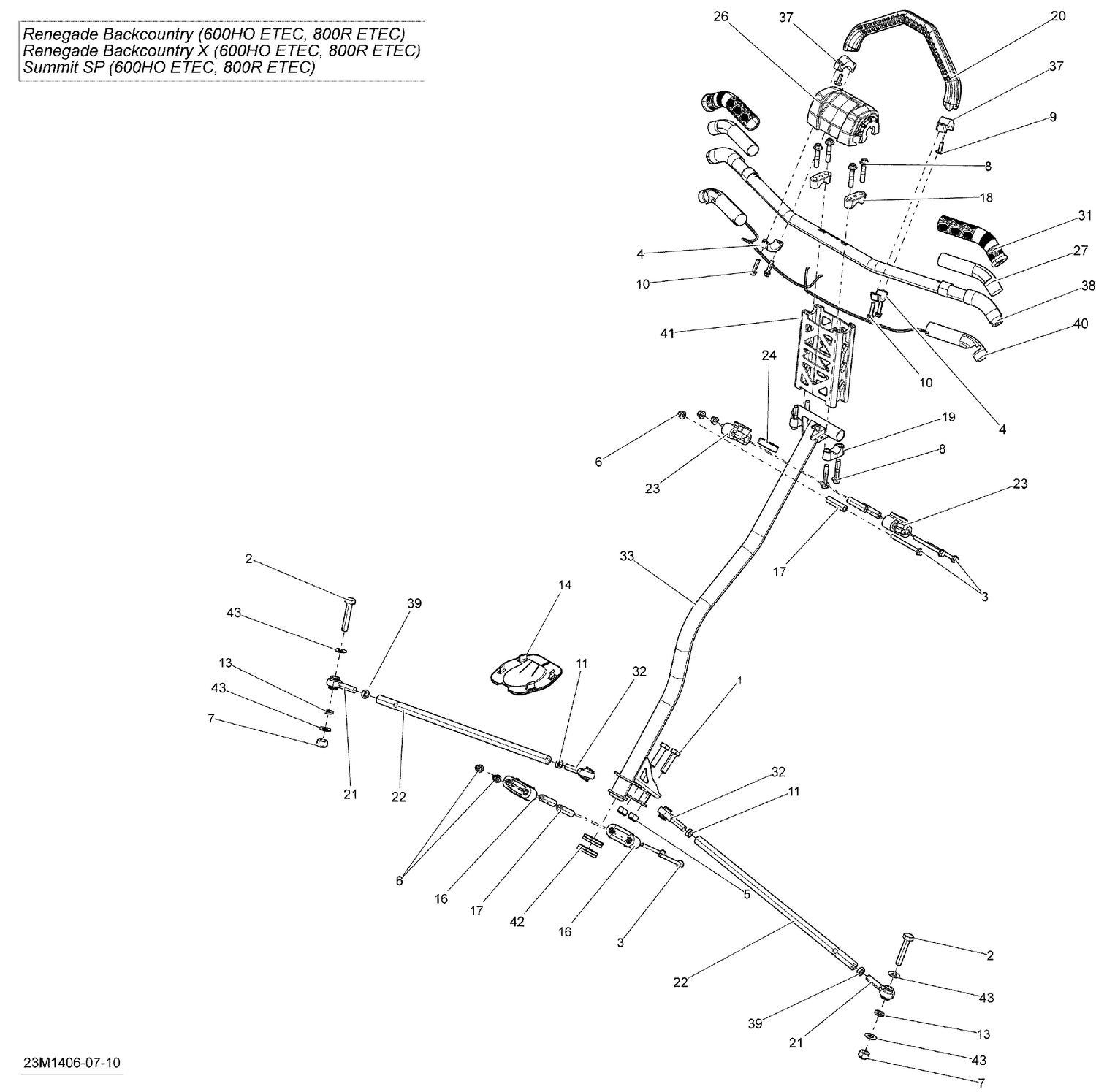

07- Steering — Parts Catalog

Ref	Part Number	Description
1	207004034	Hex. Screw M10 X 1.5 X 40
2	207005554	Hex Screw M10 X 1.5 X 55
3	207667056	Hex. Flange Screw M6 X 70 This part replaces 207667086.
4	719000049	Clamps
5	232500416	Elastic Stop Nut M10
6	233261416	Elastic Flange Nut M6 X 1.0
7	233601466	Elastic Locking Nut M10
8	250000352	Hex. Flange Screw M8 X 40
9	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
10	250000447	Hex. Flange Screw M6 X 25
11	250100016	LH Threaded Hex. Jam Nut M10
13	XXX	Not Available As Spare Parts
14	506152163	Plate
16	506152217	Lower Half-Housing
17	506152297	Housing Bushing
18	506152751	Steering Support This part replaces 506152395.
19	506152751	Steering Support This part replaces 506152395.
20	506152460	Moulding Strap
21	506152019	RH Threaded Ball Joint
22	506152498	Tie-Rod
23	506152508	Upper Half-Housing
24	506152509	Upper Anti-Vibration Gasket
26	506152541	Deep Black, Steering Pad
27	506153176	Thermal Insulation This part replaces 506152548.
31	506152560	Grip 148mm
32	506152081	LH Thread Ball Joint
33	506152962	Steering Column This part replaces 506152584.
37	506152703	Black Support Plate
38	506152709	Handle Bar, Non Dyed Clear Anodizing
39	732610010	RH Threaded Hex. Jam Nut M10
40	506152798	Heating Element 32 Watt 3 Wires This part replaces 506152665.
41	506152617	Black Handlebar Extension
42	506152518	Lower Vibration Ring
