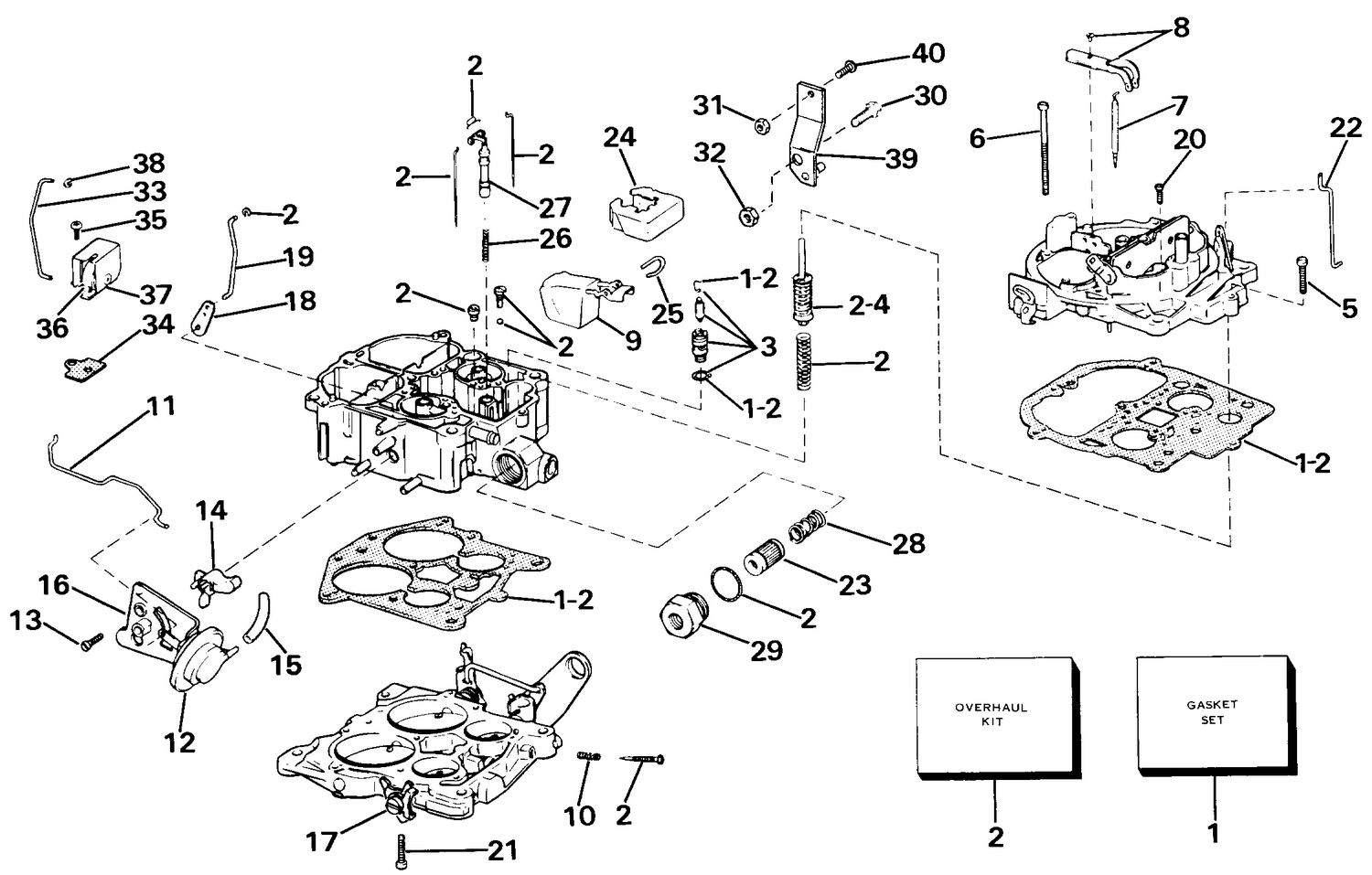

| Ref | Part Number | Description |
|---|
| 1 |
0983864 |
CARB. REPAIR KIT This part replaces 0983075. |
| 2 |
0983864 |
CARB. REPAIR KIT |
| 3 |
0983873 |
NEEDLE & SEAT ASSY |
| 4 |
0983872 |
FLOAT & INSERT PKG |
| 5 |
17063591 |
SCREW, Air horn |
| 6 |
17063592 |
SCREW, Air horn |
| 7 |
0910332 |
METERING ROD, Secondary |
| 8 |
0911652 |
HOLDER KIT, Secondary metering rod |
| 9 |
0983871 |
FLOAT & INSERT ASSY. This part replaces 0383087. |
| 10 |
17062909 |
SPRING, Idle needle |
| 11 |
0314527 |
ROD VACUUM BREAK |
| 12 |
0981789 |
VACUUM BREAK ASSY |
| 13 |
7031925 |
SCREW, Control attaching |
| 14 |
0316523 |
CAM, Fast idle This part replaces 0910141. |
| 15 |
0314531 |
HOSE, Vacuum |
| 16 |
0981788 |
BACKET ASSEMBLY VACUUM BREAK CONTROL |
| 17 |
7010435 |
SCREW, Idle lever |
| 18 |
0314534 |
LEVER, Intermediate choke |
| 19 |
0314535 |
ROD, Choke |
| 20 |
17073293 |
SCREW, Air horn |
| 21 |
7063590 |
SCREW, Throttle body |
| 22 |
0314556 |
PUMP ROD |
| 23 |
0983870 |
FILTER, Fuel inlet This part replaces 0910139. |
| 24 |
0314551 |
INSERT, Float bowl |
| 25 |
0314541 |
HINGE PIN, Float assembly |
| 26 |
0983868 |
POWER PISTON ASSY This part replaces 0910140. |
| 27 |
0983868 |
POWER PISTON ASSY This part replaces 0980912. |
| 28 |
0314548 |
SPRING, Fuel filter |
| 30 |
0310859 |
BOLT, Throttle lever to carb |
| 32 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 33 |
3998966 |
CHOKE, Rod |
| 34 |
0909793 |
ISOLATER, Automatic choke |
| 35 |
0273513 |
SCREW, Choke |
| 36 |
0326079 |
THERM ASSY, Choke |
| 37 |
3998944 |
COVER, Bi-metal choke |
| 38 |
3989067 |
CLIP, Bi-metal choke |
| 39 |
0382822 |
THROTTLE LEVER & PIN |
| 0982223 |
0982223 |
CARBURETOR ASSY |
