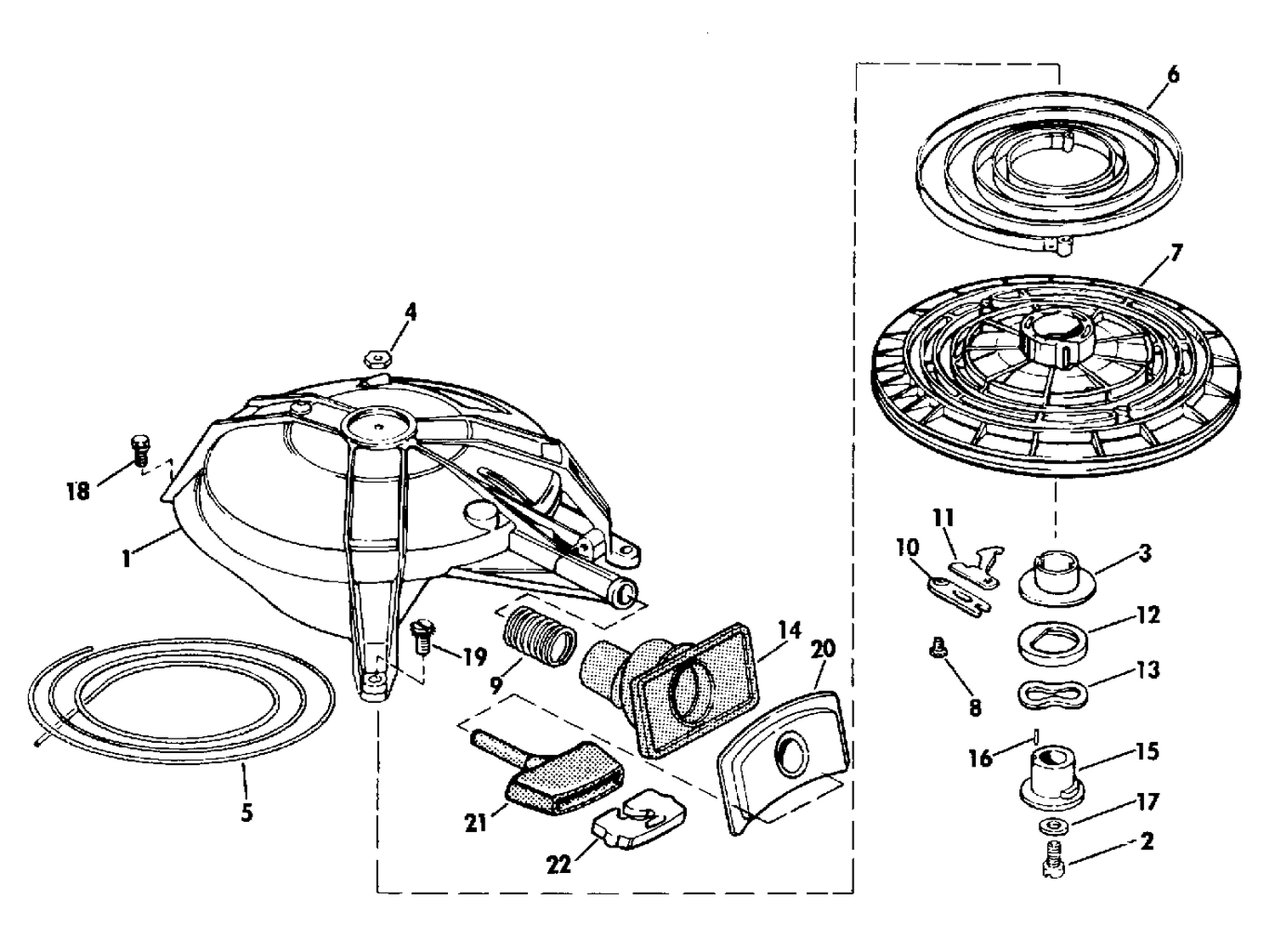

| Ref | Part Number | Description |
|---|
| 1 |
0385566 |
HOUSING STARTER |
| 2 |
0336135 |
SCREW, Flywheel This part replaces 0306284. |
| 3 |
0309513 |
BUSHING, Spindle |
| 5 |
ROPE |
Ref: 6 0375836 SPRING Starter 0375836 |
| 7 |
0385690 |
PULLEY, Starter |
| 8 |
0307163 |
SCREW |
| 10 |
0202317 |
RETAINER, Starter pawl |
| 11 |
0327398 |
PAWL, Starter This part replaces 0202470. |
| 15 |
0379067 |
SPINDLE & PIN ASSY |
| 18 |
0308375 |
SCREW, Housing to cylinder |
| 19 |
0311563 |
SCREW |
| 20 |
0207272 |
PLATE, Handle |
| 21 |
0329970 |
HANDLE, Starter This part replaces 0206843. |
| 0385565 |
0396775 |
REWIND STARTER ASSY. This part replaces 0385565. |
