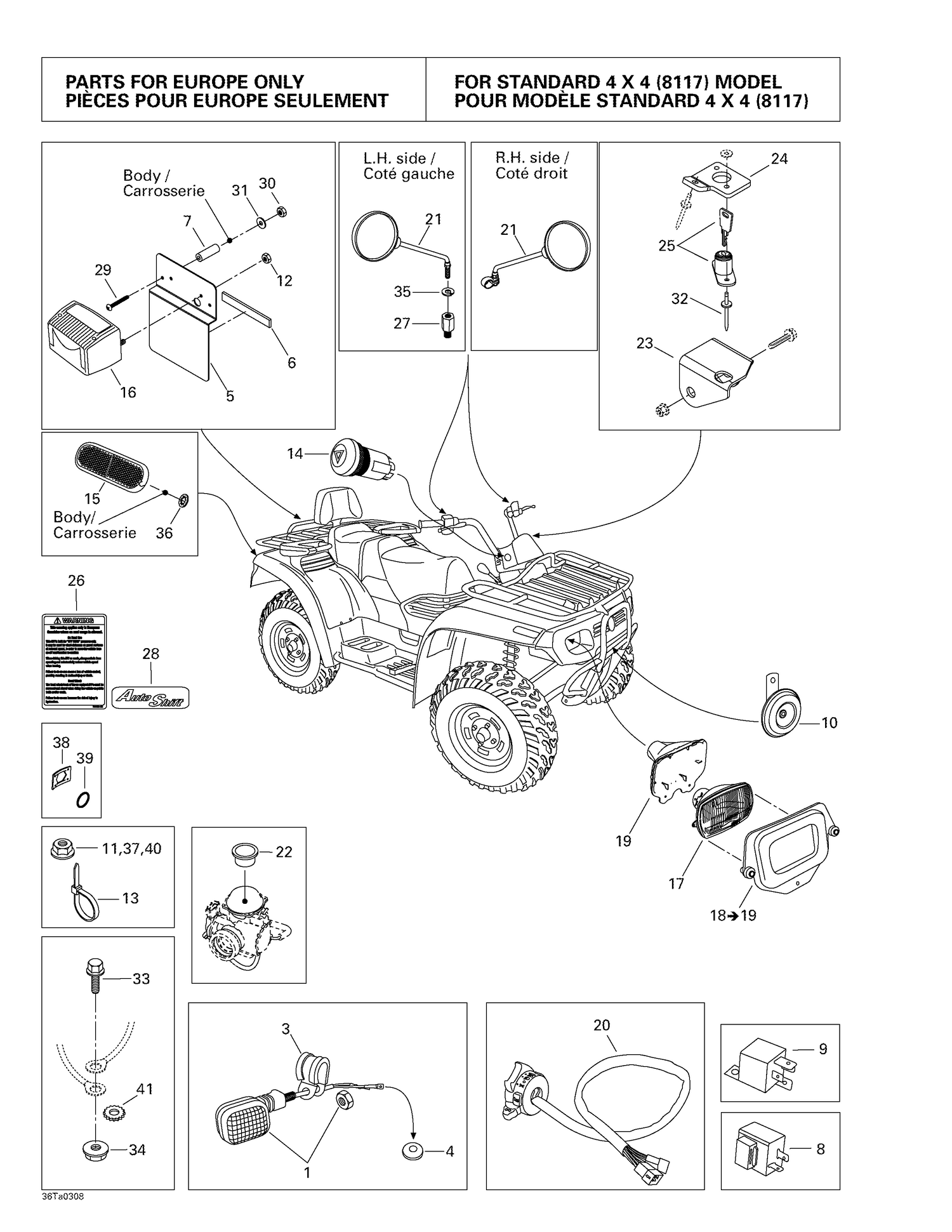

10- Homologation Kit For Europe
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710000360 | Flashing Light |
| 2 | 710000385 | Female Terminal (not shown) |
| 3 | 710000362 | Collar |
| 4 | 414036300 | Grommet |
| 5 | 705000658 | Tail light support |
| 6 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 7 | 705000659 | Spacer |
| 8 | 710000363 | Flasher Unit |
| 9 | 710000364 | RELAY 12 V. - Call your local BRP dealership |
| 10 | 710000365 | Horn |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 13 | 414115200 | Tie-Rap 180 mm |
| 14 | 710000367 | EMERGENCY SWITCH - Call your local BRP dealership |
| 15 | 705000660 | Reflector |
| 16 | 710000368 | Tail Light |
| 17 | 710000369 | FRONT LIGHT - Call your local BRP dealership |
| 19 | 705000023 | Protector |
| 20 | 710000370 | LIGHT/HORN SWITCH - Call your local BRP dealership |
| 21 | 709400207 | Mirror |
| 22 | 710000371 | Power reductor |
| 23 | 707000286 | Bracket |
| 24 | 707000287 | Locking plate |
| 25 | 707000288 | Locking device (with key) |
| 26 | 704901444 | WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership This part replaces 704900400. |
| 27 | 705000673 | MIRROR SUPPORT - Call your local BRP dealership |
| 28 | 704900069 | Shift Label |
| 29 | 208656091 | PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 30 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 31 | 234051410 | Flat Washer M5 |
| 32 | 390402300 | Pop Rivet 3/16" |
| 33 | 207662044 | Hex. Flange Screw M6 X 20 |
| 34 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 35 | 234180411 | WASHER-LOCK HELICAL DIN.127B - Call your local BRP dealership |
| 36 | 250100034 | Push Nut |
| 37 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 38 | 250100043 | Push-nut |
| 39 | 293300097 | O-ring |
| 40 | 233201414 | Hex. Flange Elastic Nut M10 |
| 710000361 | Flashing | Light 710000361 |
