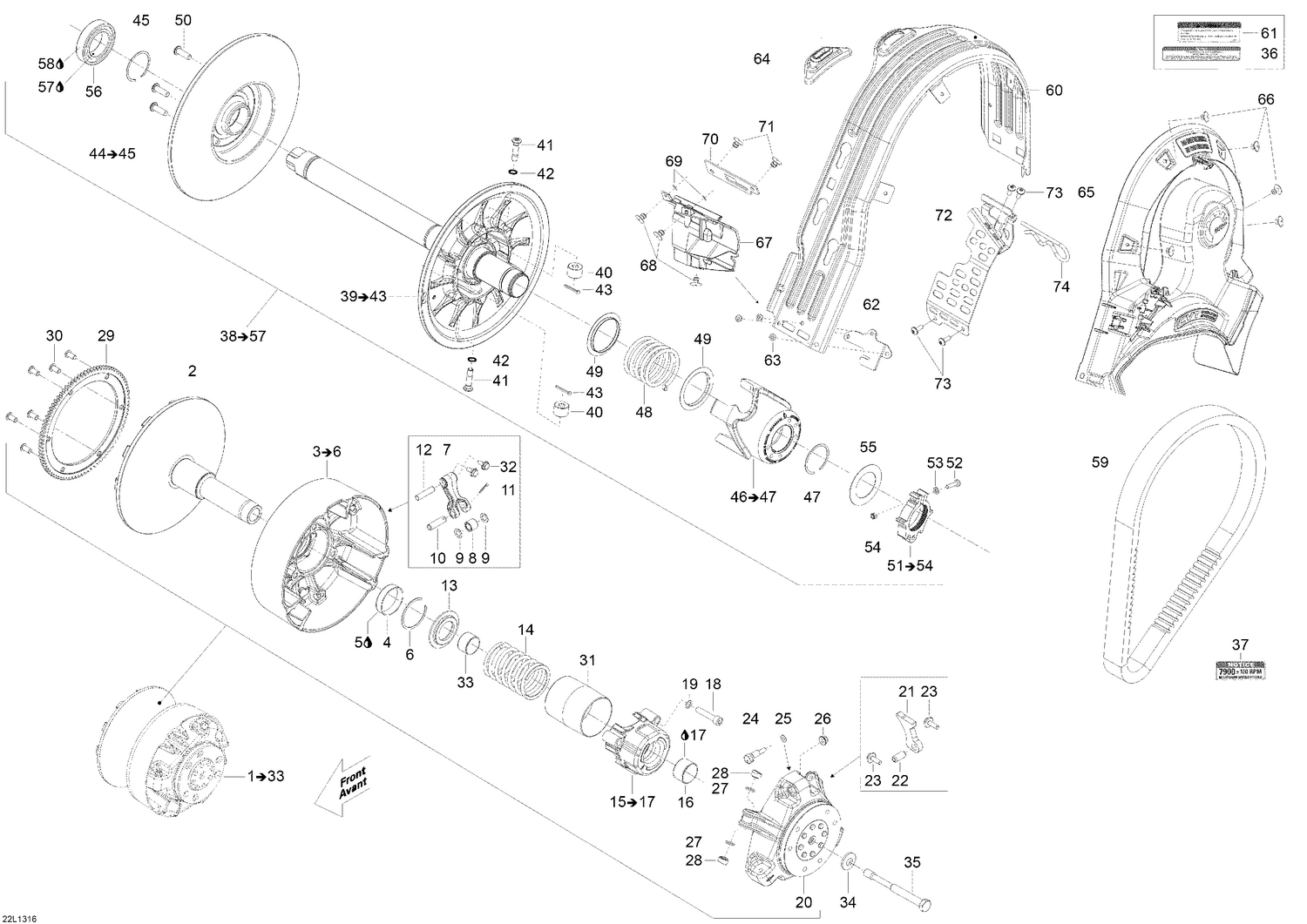

| Ref | Part Number | Description |
|---|
| 2 |
417223232 |
Fixed Flange Ass'y |
| 4 |
417223086 |
Bushing |
| 5 |
619600012 |
Loctite 609, 50ml |
| 6 |
293370071 |
Circlip |
| 7 |
417222671 |
Lever Ass´y |
| 8 |
417222947 |
Roller |
| 9 |
417004302 |
Stopper Washer |
| 10 |
417222594 |
Pin |
| 11 |
250400060 |
Cotter Pin |
| 12 |
417223164 |
Axle Lever |
| 13 |
417222312 |
Spring Seat |
| 14 |
415034900 |
Spring, Purple / Blue (712-1290N) |
| 16 |
417009204 |
Bushing |
| 17 |
619600012 |
Loctite 609, 50ml |
| 18 |
205084044 |
Socket Head Screw M8 x 40 |
| 19 |
250200009 |
Lock Washer 8mm |
| 20 |
417223666 |
Governor Cup |
| 21 |
417222508 |
Ramp 413 |
| 22 |
250400050 |
Spring Pin M10 x 22 |
| 23 |
250000418 |
Hex. Flanged Screw M6 x 18, Scotch Grip |
| 24 |
417223501 |
Calibration Screw |
| 25 |
417005600 |
Washer |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
732401030 |
O Ring |
| 28 |
417223271 |
Slider Shoe |
| 29 |
417225071 |
Ring Gear_Starter This part replaces 417222952. |
| 30 |
250000533 |
Hex. Flanged Screw M8 x 16, Scotch Grip |
| 31 |
417009205 |
Guard |
| 32 |
250000416 |
Hex. Flanged Screw M6 x 16, Scotch Grip |
| 33 |
417223471 |
Bushing |
| 34 |
250200006 |
Conical Spring Washer |
| 35 |
417300409 |
Drive Pulley Bolt, TRA 7 |
| 36 |
516005503 |
Decal, Notice, Drive Pulley Bolt |
| 37 |
516005507 |
RPM Decal |
| 40 |
417127016 |
Roller |
| 41 |
417127294 |
Stud |
| 42 |
250200009 |
Lock Washer |
| 43 |
250400061 |
Spring Pin M3 x 18 |
| 45 |
293370049 |
Spacer (1.91/2.21mm) |
| 47 |
293370049 |
Spacer (1.91/2.21mm) |
| 48 |
417127137 |
Spring, Green / Green (800 / 1350N) |
| 49 |
417127116 |
Swivel Abutment |
| 50 |
250000283 |
Button Head Torx Screw M8 x 25, Scotch Grip |
| 52 |
205052544 |
Socket Head Screw M10 x 1.5 |
| 53 |
234051410 |
Flat Washer M5 |
| 54 |
232551414 |
Elastic Stop Nut M5 |
| 55 |
417127155 |
Washer |
| 56 |
504152574 |
Ball Bearing |
| 57 |
619600012 |
Loctite 609, 50ml |
| 58 |
619600013 |
Loctite 8151 (Antiseize), 400ml Spray |
| 59 |
417300571 |
Drive Belt This part replaces 417300391. |
| 60 |
417300357 |
Belt Guard |
| 61 |
516004649 |
Warning Decal, Security Belt Guard |
| 62 |
417300423 |
Front Bracket |
| 63 |
390909200 |
Avex Rivet |
| 64 |
417300381 |
Guide |
| 65 |
417300439 |
CVT Air Duct |
| 66 |
293150103 |
Pop Rivet 3/16 |
| 67 |
417300422 |
Front Support |
| 68 |
293150104 |
Pop Rivet 3/16 |
| 69 |
517225900 |
Flat Washer |
| 70 |
417300421 |
Reinforcement |
| 71 |
390909100 |
Avex Rivet |
| 72 |
417300448 |
BELT GUARD BRACKET - Call your local BRP dealership |
| 73 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
