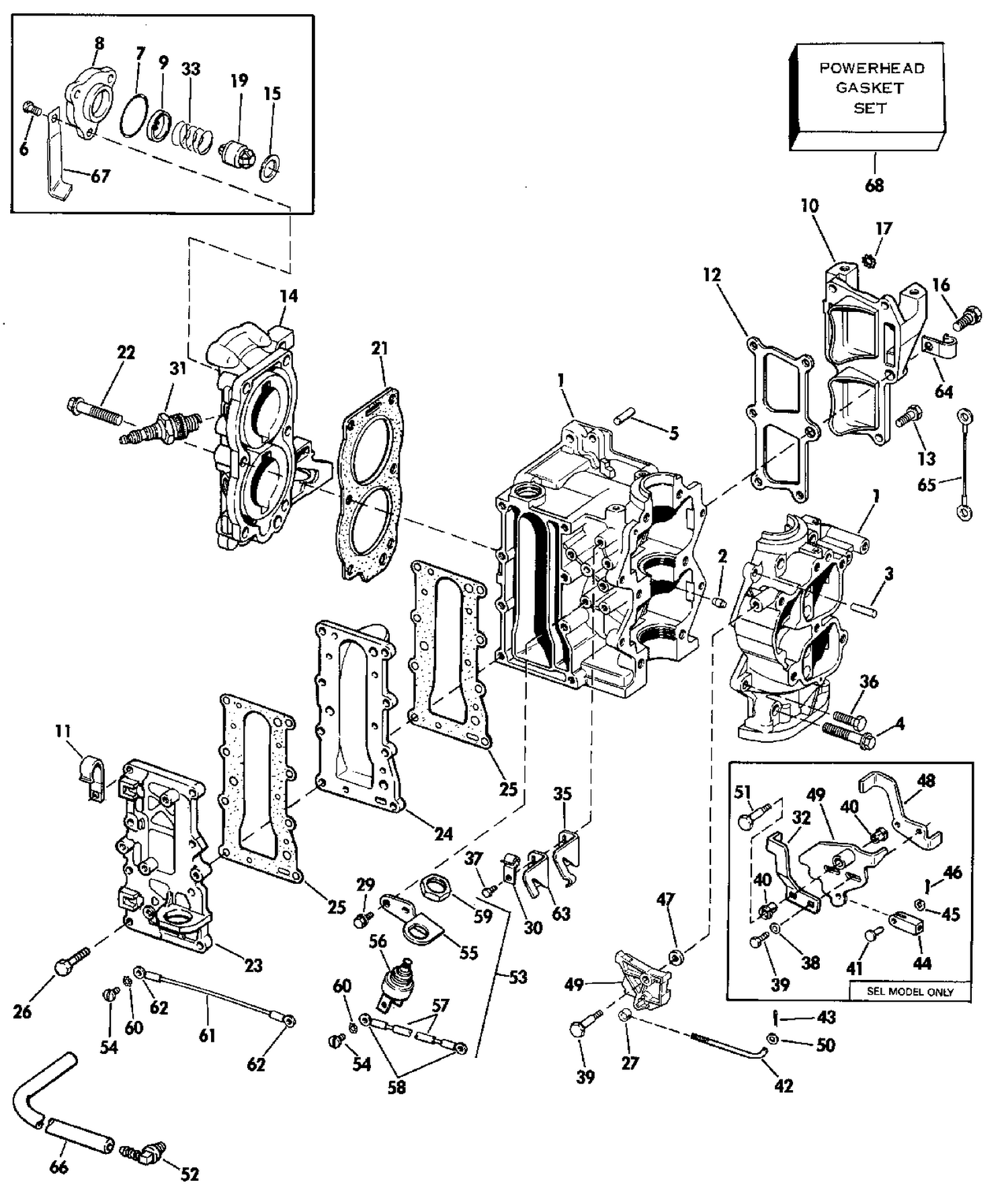

| Ref | Part Number | Description |
|---|
| 1 |
0396010 |
CYLINDER & C'CASE ASSY. |
| 7 |
0331188 |
O-Ring |
| 8 |
0331189 |
COVER, Thermostat |
| 9 |
0331241 |
ISOLATOR |
| 10 |
0319350 |
BY-PASS COVER |
| 10 |
0336637 |
BYPASS COVER This part replaces 0333733. |
| 11 |
0330151 |
CLAMP, Harness to oil tank boss |
| 12 |
0319332 |
GASKET, By-pass cover |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0432765 |
CYL. HEAD & SEAT This part replaces 0432764. |
| 15 |
0334742 |
GASKET, Thermostat |
| 16 |
0332203 |
SCREW, By-pass cover |
| 19 |
0433379 |
THERMOSTAT This part replaces 0432759. |
| 21 |
0330818 |
GASKET, Cylinder head |
| 22 |
0319226 |
SCREW, Cylinder head |
| 23 |
0322404 |
EXHAUST COVER, Outer |
| 24 |
0318926 |
EXHAUST COVER, Inner |
| 25 |
0318925 |
GASKET, Exhaust cover |
| 26 |
0314951 |
SCREEN, Mfld. to c'case |
| 27 |
0323655 |
PIVOT NUT, Link to shift lever |
| 29 |
0315287 |
SCREW |
| 31 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 31 |
0432424 |
SPARK PLUG , QL16V |
| 31 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 31 |
0502894 |
SPARK PLUG, Champion, L16V This part replaces 0433627. |
| 32 |
0123024 |
SHIFT LOCK STOP |
| 33 |
0331186 |
SPRING |
| 35 |
0319414 |
DETENT, Shift hook |
| 36 |
0306049 |
SCREW |
| 37 |
0315287 |
SCREW |
| 38 |
0306413 |
WASHER |
| 41 |
0319127 |
PIN, Clevis lever to lock lever |
| 42 |
0319066 |
LINK, Shift lever to lock lever |
| 42 |
0323656 |
LINK, Shift lever to lock lever |
| 44 |
0318955 |
CLEVIS, Link to bellcrank |
| 47 |
0306407 |
LOCCKWASHER,Cover latch |
| 48 |
0322407 |
STOP, Shift lock |
| 49 |
0323657 |
SHIFT LEVER |
| 49 |
0387257 |
LEVER & HUB ASSY., Shift lock |
| 51 |
0319415 |
SCREW |
| 53 |
0583053 |
BRACKET & SW. AY., Neutral start |
| 56 |
0395699 |
STARTER SWITCH |
| 57 |
0583052 |
LEAD ASSY., Switch to terminal block |
| 63 |
0320890 |
SUPPORT, Detent |
| 64 |
0314254 |
CLAMP |
| 65 |
0376349 |
FIL, masse |
| 66 |
0321887 |
HOSE, Indicator |
