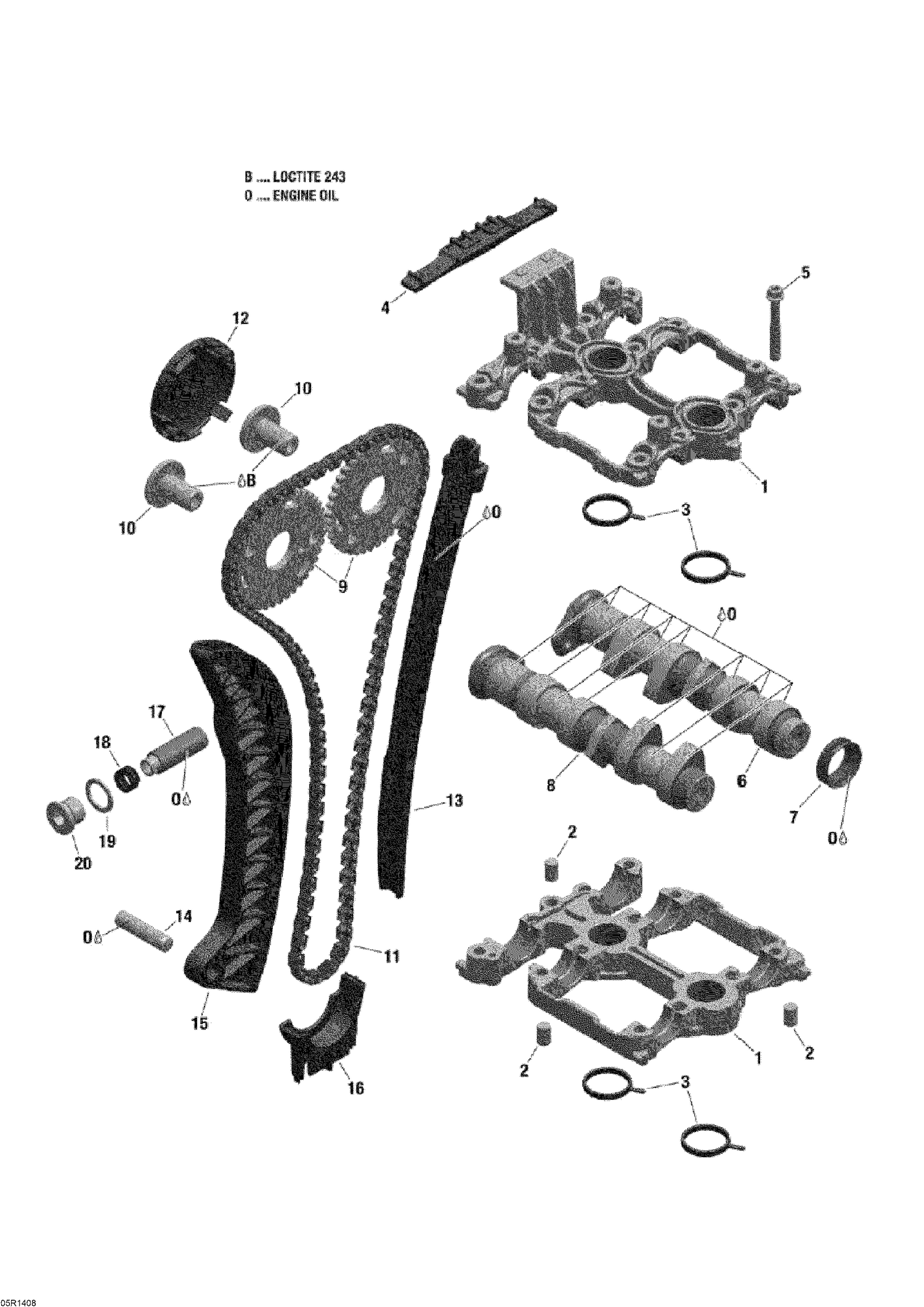

01- Camshafts And Timing Chain
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| 2 | 420632010 | Center Pin 8 X 12 |
| 4 | 420936500 | Chain Guide, Upper |
| 6 | 420820112 | Camshaft Exhaust This part replaces 420820111. |
| 8 | 420820102 | Camshaft Intake This part replaces 420820101. |
| 9 | 420855120 | Camshaft Sprocket 40 T |
| 11 | 420297086 | Camshaft Chain 6,35X8,25X142 |
| 12 | 420460920 | Cover |
| 13 | 420936010 | Chain Guide |
| 14 | 420929937 | Needle Pin DIN 7979-D 10X40-ST |
| 15 | 420936020 | Chain Tension Guide |
| 16 | 420936510 | Chain Guide |
| 17 | 420236395 | Chain Tensioner This part replaces 420236256. |
| 18 | 420238732 | Compression Spring DM12,6 D1,6 L12,5 |
