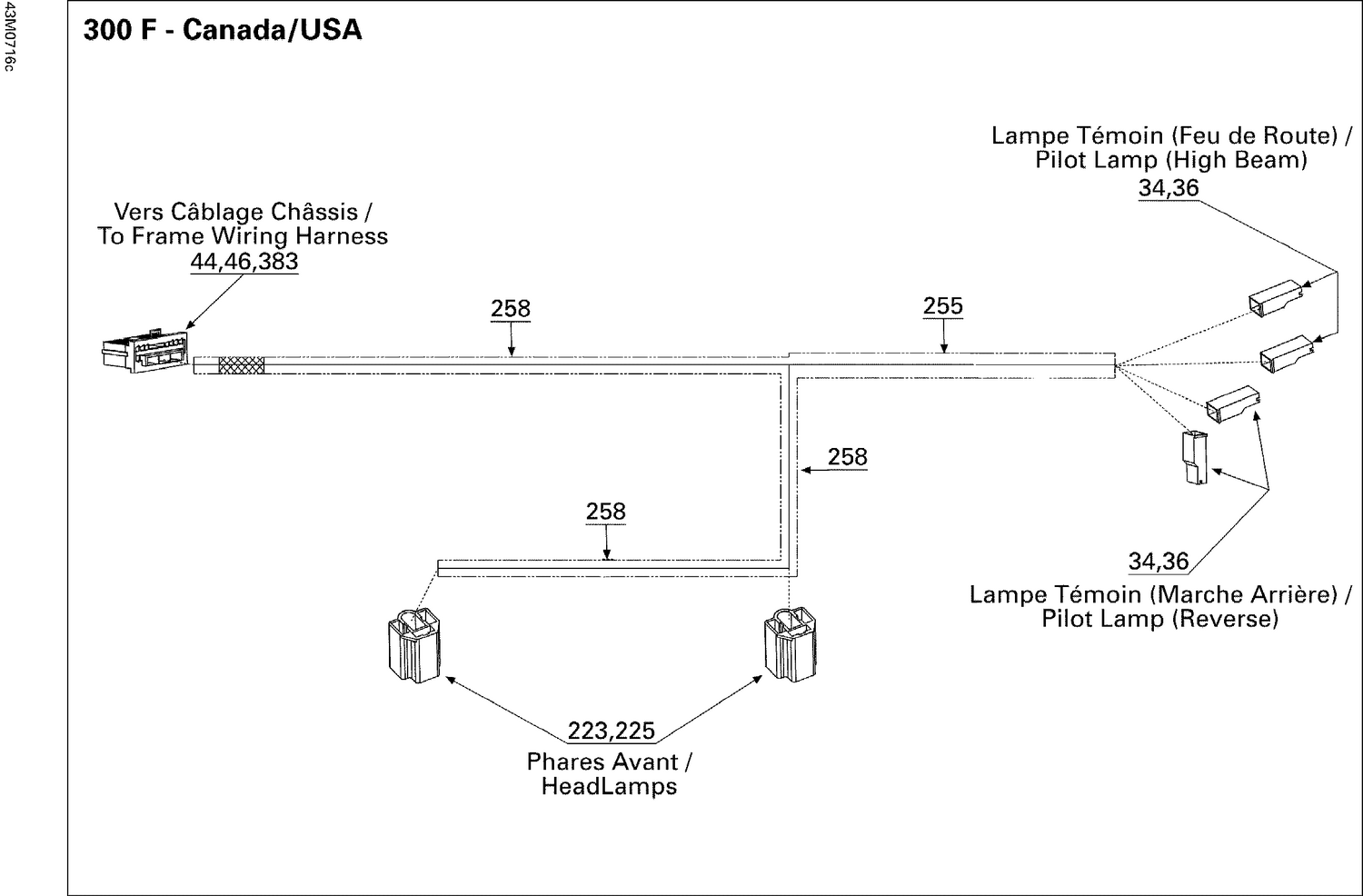

10- Electrical Harness Hood CU
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 34 | 409010100 | Female Terminal |
| 36 | 409010400 | Female Terminal Housing, 1 Circuit |
| 44 | 515175231 | Female Terminal |
| 46 | 515175282 | Female Terminal |
| 223 | 515175320 | FEMALE TERMINAL - Call your local BRP dealership |
| 225 | 409202700 | FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 255 | 219704400 | Was 409901800 Tubing (13 mm) |
| 258 | 219704407 | Tubing 10 MM 1000MM Long |
