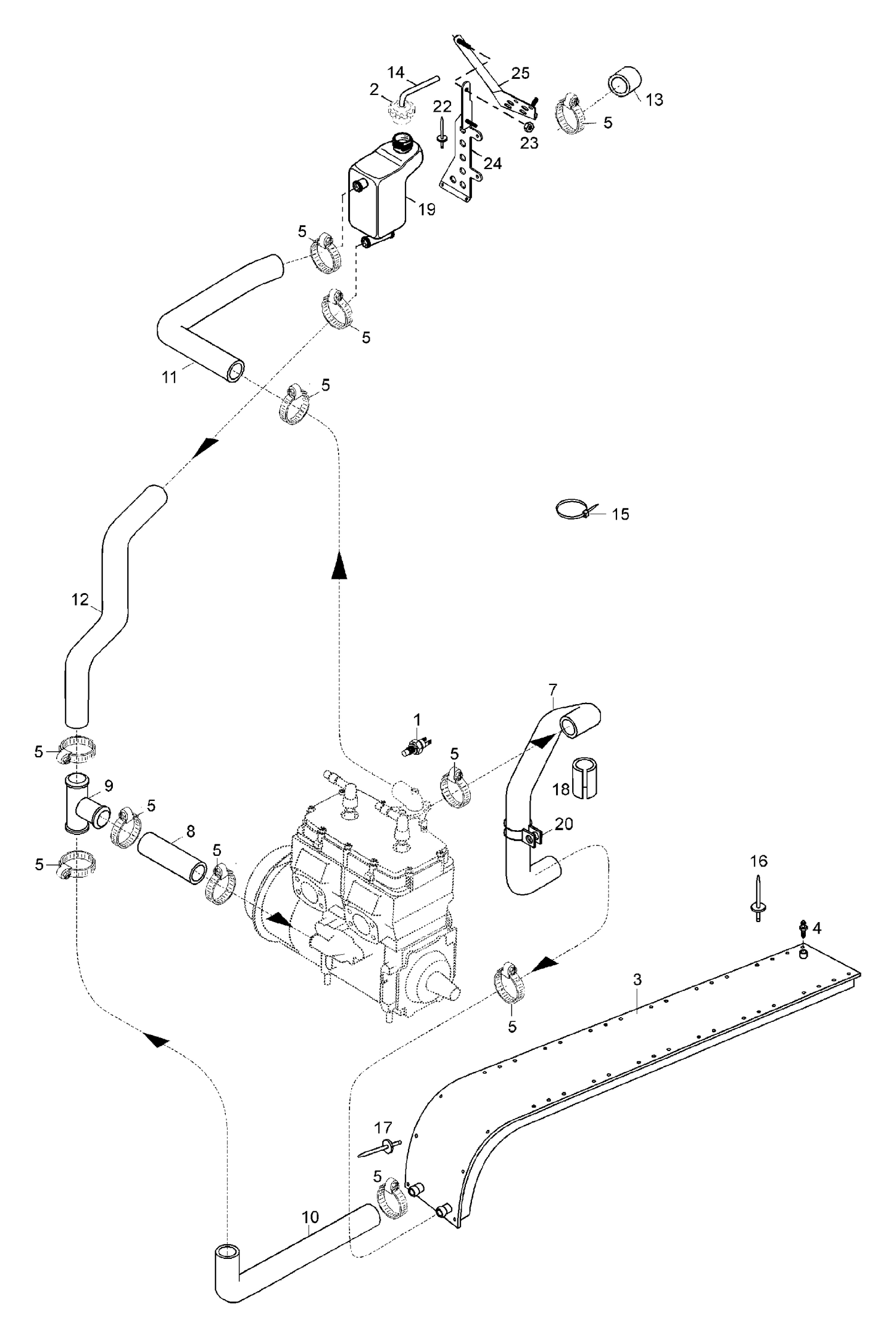

| Ref | Part Number | Description |
|---|
| 1 |
512047000 |
Sender temperature |
| 2 |
21018 |
Cap pressure |
| 3 |
5240977 |
Radiator |
| 4 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 5 |
27003 |
Hose clamp |
| 7 |
5243707 |
Radiator Outlet Hose |
| 8 |
5441471 |
Hose |
| 9 |
509000219 |
T-Fitting This part replaces 414619900. |
| 10 |
5341186 |
Hose |
| 11 |
5444043 |
Hose |
| 12 |
5344044 |
Hose |
| 13 |
5441703 |
Hose plug |
| 14 |
39038 |
Overflow hose 9.5/6.5 |
| 15 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 16 |
36083 |
Rivet |
| 17 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 18 |
548754 |
Cover hose |
| 19 |
5142859 |
Coolant-tank |
| 20 |
27011 |
Clamp |
| 22 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 24 |
5343835 |
Coolant tank support |
