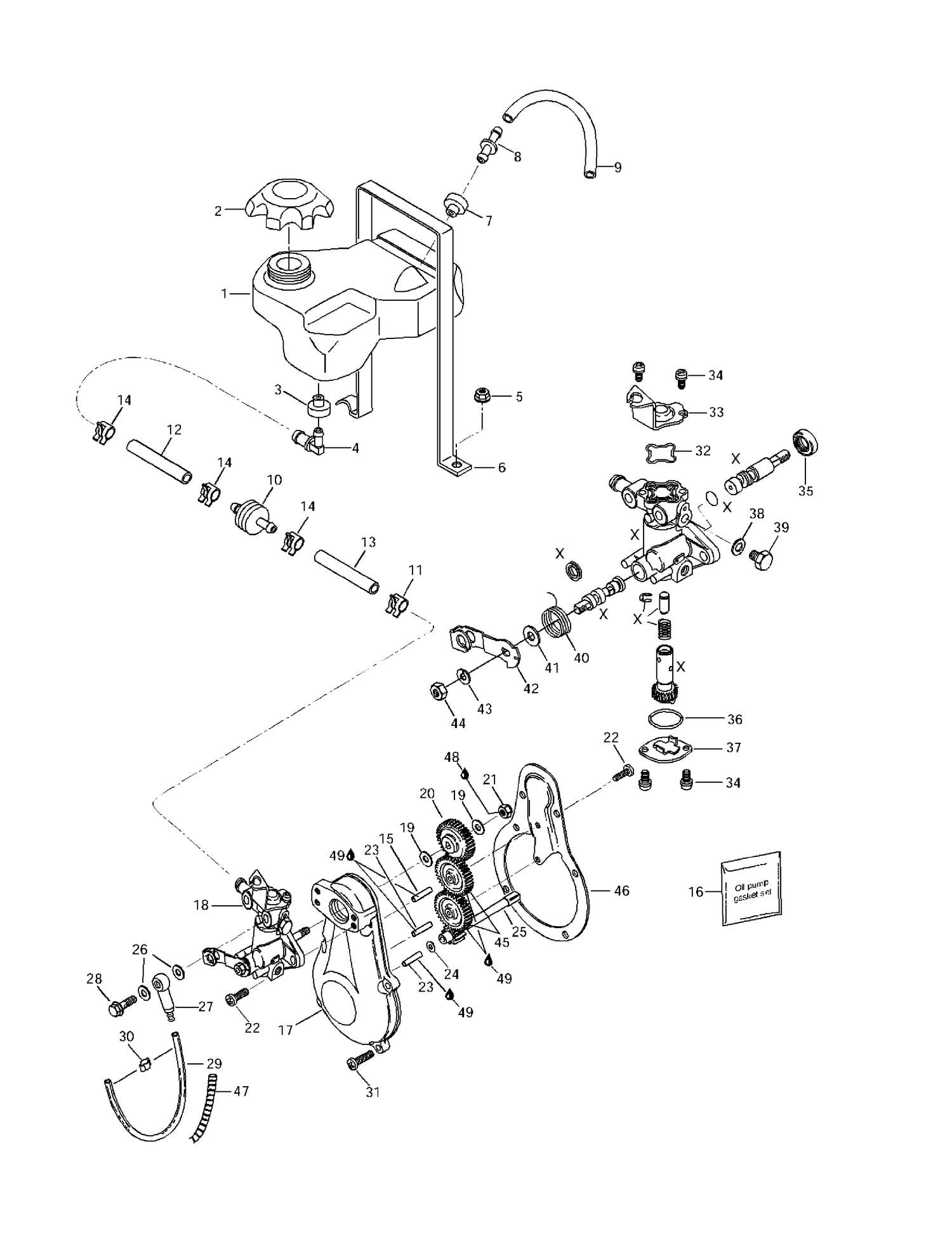

02- Oil Injection System
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 571008600 | Injection Oil Tank |
| 2 | 513033025 | Fuel Tank Cap This part replaces 572039600. |
| 3 | 709200285 | Grommet This part replaces 570135100. |
| 4 | 414650200 | Elbow Fitting 90 Deg |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 6 | 517263400 | Retainer Strip |
| 7 | 570027700 | GROMMET - Call your local BRP dealership |
| 8 | 275501246 | Check Valve This part replaces 414824700. |
| 9 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 10 | 414536500 | Filter |
| 11 | 414420700 | Spring Clamp |
| 12 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 13 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 14 | 414415200 | Spring Clamp |
| 15 | 420232971 | NEEDLE PIN - Call your local BRP dealership This part replaces 420232970. |
| 16 | 420995040 | Oil Pump Gasket Set |
| 17 | 420810110 | FLANGED PUMP - Call your local BRP dealership |
| 18 | 404045900 | Oil Pump Ass'y |
| 19 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 20 | 420935930 | Oil Pump Gear, 27 Teeth |
| 21 | 232561434 | Elastic Stop Nut M6 This part replaces 228561045. |
| 22 | 420841971 | Screw This part replaces 420841970. |
| 23 | 420232420 | Needle Pin |
| 24 | 420244072 | Flat Washer 4 This part replaces 420244073. |
| 25 | 420935975 | GEAR, 9 TEETH - Call your local BRP dealership |
| 26 | 404146600 | Sealing Washer |
| 27 | 420956010 | Valve Ass’Y |
| 28 | 404146800 | Banjo Bolt M6 X 16 |
| 29 | 219704404 | Oil Hose 1500Mm Long |
| 30 | 420853840 | Clamp |
| 31 | 420841976 | SCREW - Call your local BRP dealership This part replaces 420841975. |
| 32 | 420230477 | O-Ring |
| 33 | 420956032 | Plate |
| 34 | 420841620 | Screw with Lock Washer |
| 35 | 404157800 | Oil Seal |
| 36 | 420230370 | O-Ring |
| 37 | 420256077 | Cam Casing Plate |
| 38 | 420227505 | GASKET - Call your local BRP dealership |
| 39 | 420841580 | Hex. Screw M6 X 8 |
| 40 | 420239670 | Spring |
| 41 | Not | Available As Spare Part - Washer |
| 42 | 404146500 | Control Lever |
| 43 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 44 | 420242621 | Hex. Nut M6 |
| 45 | 420834210 | OIL PUMP GEAR - Call your local BRP dealership |
| 46 | 420810122 | FLANGED PUMP - Call your local BRP dealership |
| 47 | 276000048 | Hose 6 mm This part replaces 420960725. |
| 48 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
