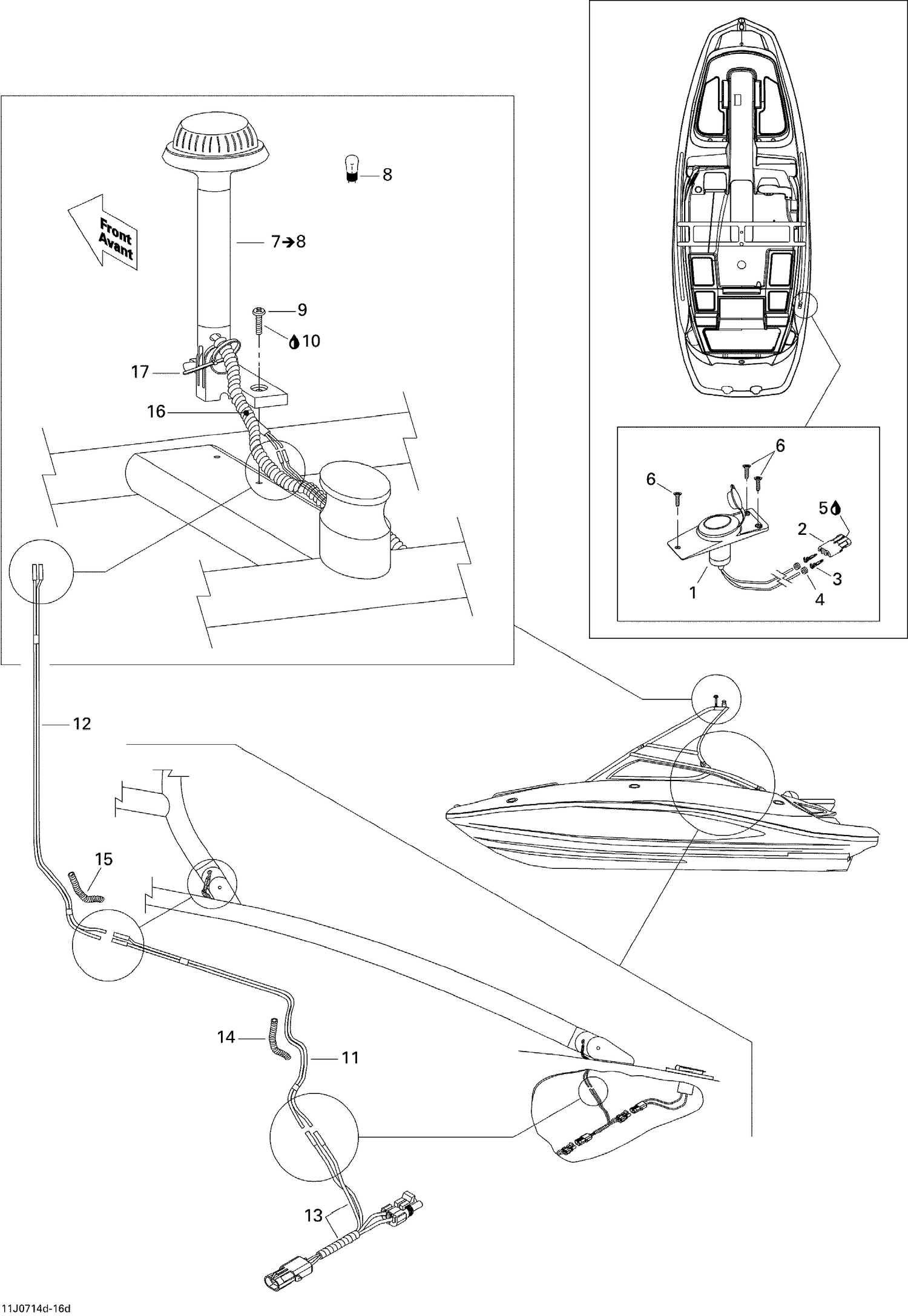

10- Electrical Accessories 4
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204470990 | REAR LIGHT BASE - Call your local BRP dealership |
| 2 | 278000217 | Female Housing, 2 Circuits |
| 3 | 278000222 | Male Terminal |
| 4 | 278000218 | Wire Seal |
| 5 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 6 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 8 | 204470053 | Bulb |
| 9 | 208641660 | Phillips Screw M4 X 16 |
| 10 | 293800060 | Loctite 243, 10 ml |
| 11 | 204471184 | Lower Tower Harness |
| 12 | 204471185 | Upper Tower Harness |
| 13 | 204471186 | Tower Light Harness |
| 14 | 204050326 | SPLIT LOOM 3/8, METER - Call your local BRP dealership |
| 15 | 204050326 | SPLIT LOOM 3/8, METER - Call your local BRP dealership |
| 16 | 204050326 | SPLIT LOOM 3/8, METER - Call your local BRP dealership |
