Parts Catalog

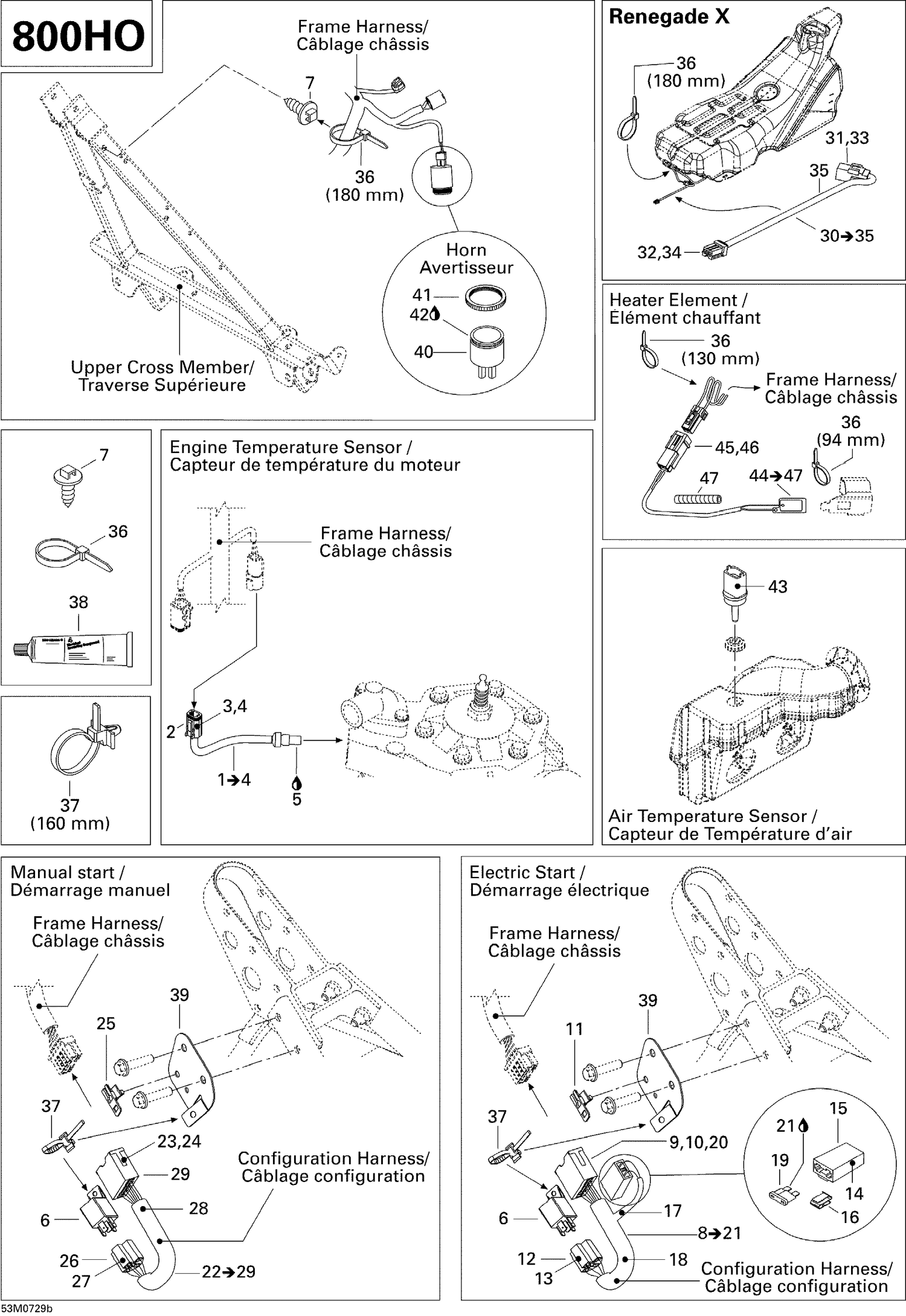

10- Electrical Accessories 2, RENX 800

Parts (44)

Ref	Part Number	Description
2	278000739	Male Connector, 4 Circuits
3	278000632	Female Terminal
4	515175677	MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
5	219704455	Was 293800018 Loctite 592, 50 ml
6	710010053	Relay This part replaces 410113200.
7	293730040	Mount Dart This part replaces 293730018.
9	515175232	Male Terminal
10	515175273	MALE TERMINAL - Call your local BRP dealership
11	515175283	Housing Support
12	409209900	Female Housing, 5 Circuits
13	561503100	FEMALE TERMINAL - Call your local BRP dealership
14	409011600	Female Terminal
15	409004000	Fuse Holder
16	409014200	CLIP - Call your local BRP dealership
17	219704425	Tubing 6 Mm 3000Mm Long
18	219704400	Was 409901800 Tubing (13 mm)
19	278000344	Fuse, 5 Amperes
20	515175720	MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
21	219704453	Was 293550004 Dielectric Grease, 150 g
22	XXX	Not Available As Spare Parts
23	XXX	Not Available As Spare Parts
24	XXX	Not Available As Spare Parts
25	XXX	Not Available As Spare Parts
26	XXX	Not Available As Spare Parts
27	XXX	Not Available As Spare Parts
28	XXX	Not Available As Spare Parts
29	XXX	Not Available As Spare Parts
31	515175232	Male Terminal
32	515175231	Female Terminal
33	515175494	Male Housing, 3 Circuits
34	515175495	Female Housing, 3 Circuits
35	219704424	Vinyl Tubing, Low Temp 3000Mm Long
36	293750001	Tie Wrap 94 mm
36	293750002	Tie Wrap 142 mm
36	414115200	Tie-Rap 180 mm
37	293750009	Tie-Rap 173 mm
38	219704453	Was 293550004 Dielectric Grease, 150 g
39	515176020	HARNESS SUPPORT - Call your local BRP dealership
40	515176035	HORN - Call your local BRP dealership
41	414805101	PLASTIC NUT - Call your local BRP dealership
42	296000309	Silicone Sealant 51388, 300 ml
43	270600000	AIR TEMPERATURE SENSOR - Call your local BRP dealership
45	515175654	Male Terminal Housing, 2 Circuits
46	515175232	Male Terminal
