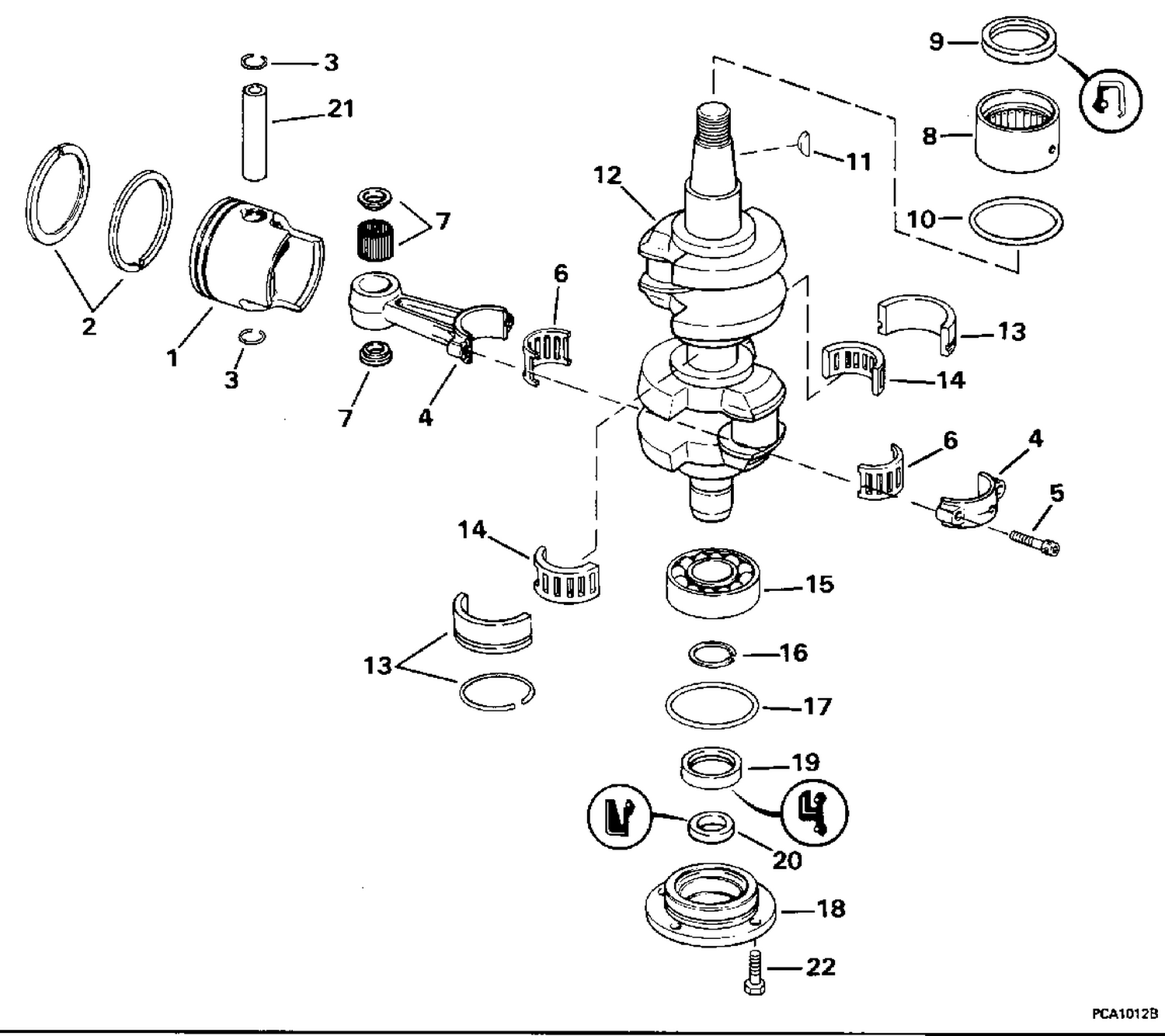

CRANKSHAFT & PISTON
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0435546 | PISTON & PIN ASSY., Standard |
| 1 | 5006689 | Piston & Ring Kit This part replaces 0436734. |
| 2 | 0436972 | JEU DE SEGMENTS, standard |
| 3 | 0317831 | Circlip |
| 4 | 0395861 | CONNECTING ROD |
| 6 | 0437088 | BEARING Assy This part replaces 0388344. |
| 7 | 0395627 | BEARING & RETAINER |
| 8 | 0398529 | BEARING & SEAL ASSY., Crankshaft |
| 10 | 0313754 | O RING |
| 11 | 0120395 | KEY |
| 12 | 0338267 | CRANKSHAFT |
| 13 | 0310433 | SLEEVE |
| 14 | 0378252 | BEARING ASSY., Needle |
| 17 | 0308876 | O RING CRANKCASE HEAD LOWER |
| 18 | 0435702 | CRANKCASE HEAD ASSY. |
| 20 | 0339014 | SEAL |
| 21 | 0322188 | WRIST PIN |
