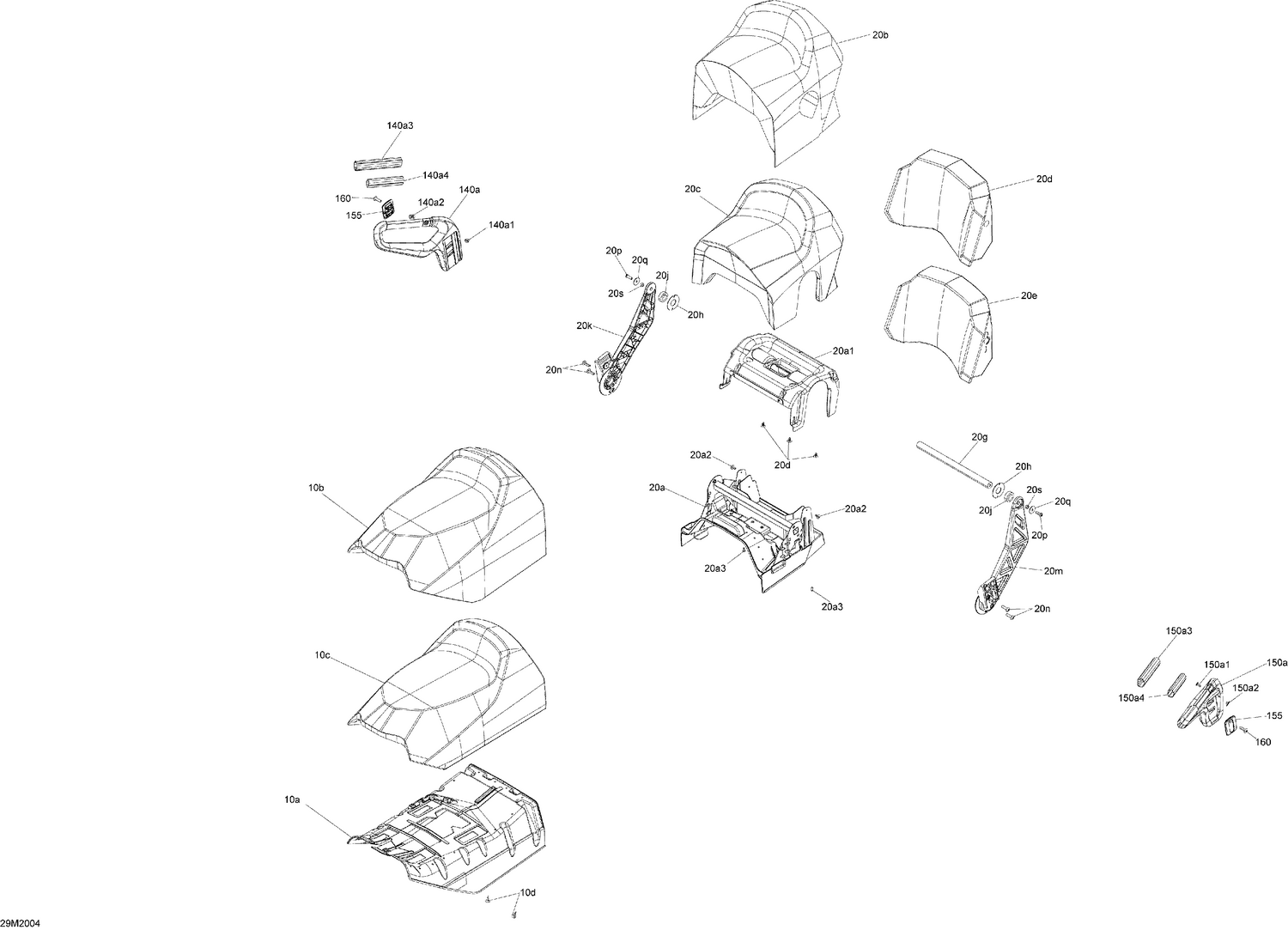

09- Seat
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510004775 | Front Seat Base |
| 10b | 510005181 | Seat Cover |
| 10c | 510004777 | Front Seat Foam |
| 10d | 708000759 | Rubber Stopper |
| 20a1 | 510004423 | Foam Support |
| 20a2 | 293150104 | Pop Rivet 3/16" |
| 20a3 | 390402300 | Pop Rivet 3/16" |
| 20b | 510005399 | Rear Seat Cover |
| 20c | 510004791 | Rear Seat Foam |
| 20d | 414644300 | Black, Dart |
| 20e | 510004782 | Backrest Foam |
| 20g | 510004377 | Upper Backrest Axle |
| 20h | 510004379 | Washer |
| 20j | 510004378 | Rubber Shim |
| 20k | 510005539 | RH Arm, Black |
| 20m | 510005538 | LH Arm, Black |
| 20n | 250000745 | Hex Torx Truss M8 X30 |
| 20p | 250000745 | Hex Torx Truss M8 X30 |
| 20q | 250200128 | Flat Washer 8 mm |
| 20s | 271000558 | Spacer |
| 140a1 | 250000721 | Torx Truss Screw M6 X 16 |
| 140a2 | 293100003 | Nut Welded, M6 |
| 140a3 | 510004449 | Handle Grip |
| 140a4 | 510005814 | Reinforcement Handle |
| 150a1 | 250000721 | Torx Truss Screw M6 X 16 |
| 150a2 | 293100003 | Nut Welded, M6 |
| 150a3 | 510004449 | Handle Grip |
| 150a4 | 510005814 | Reinforcement Handle |
| 155 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 160 | 250000745 | Hex Torx Truss M8 X30 |
