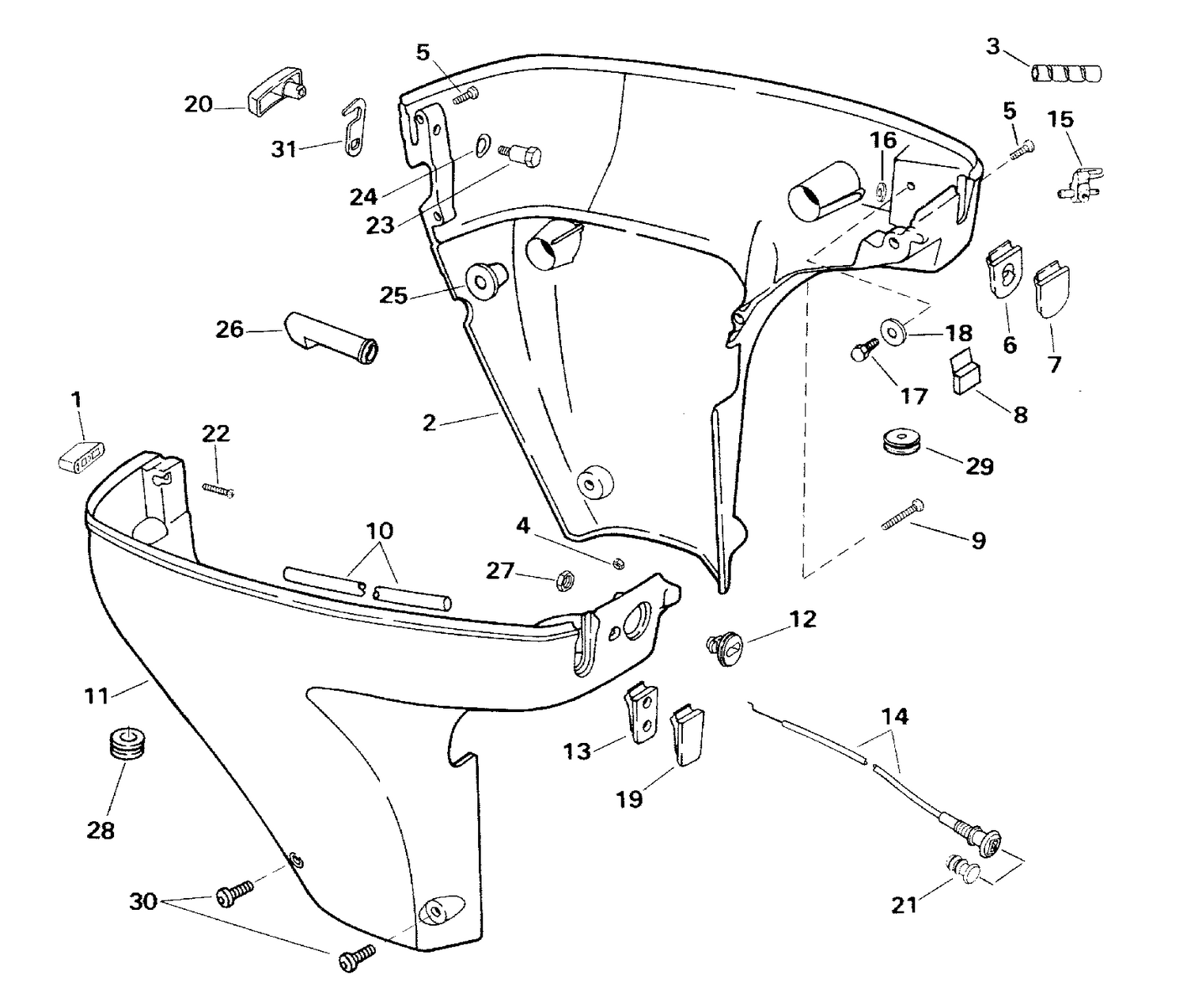

LOWER ENGINE COVER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0337413 | BUMPER, Cover |
| 2 | 0438924 | ENGINE COVER, Lower, port |
| 4 | 0337415 | NUT |
| 5 | 0339019 | SCREW, Front, lower cover, M6x40 |
| 9 | 0337417 | SCREW, Cover, lower, front, M6x90 |
| 10 | 0332414 | SEAL |
| 11 | 0337406 | ENGINE COVER, Lower, stbd. |
| 20 | 0437002 | HANDLE ASSY. |
| 23 | 0337465 | SCREW, Handle |
| 25 | 0332413 | MOUNT |
| 26 | 0338911 | GROMMET, Exhaust relief |
| 28 | 0342186 | GROMMET, Muffler drain |
