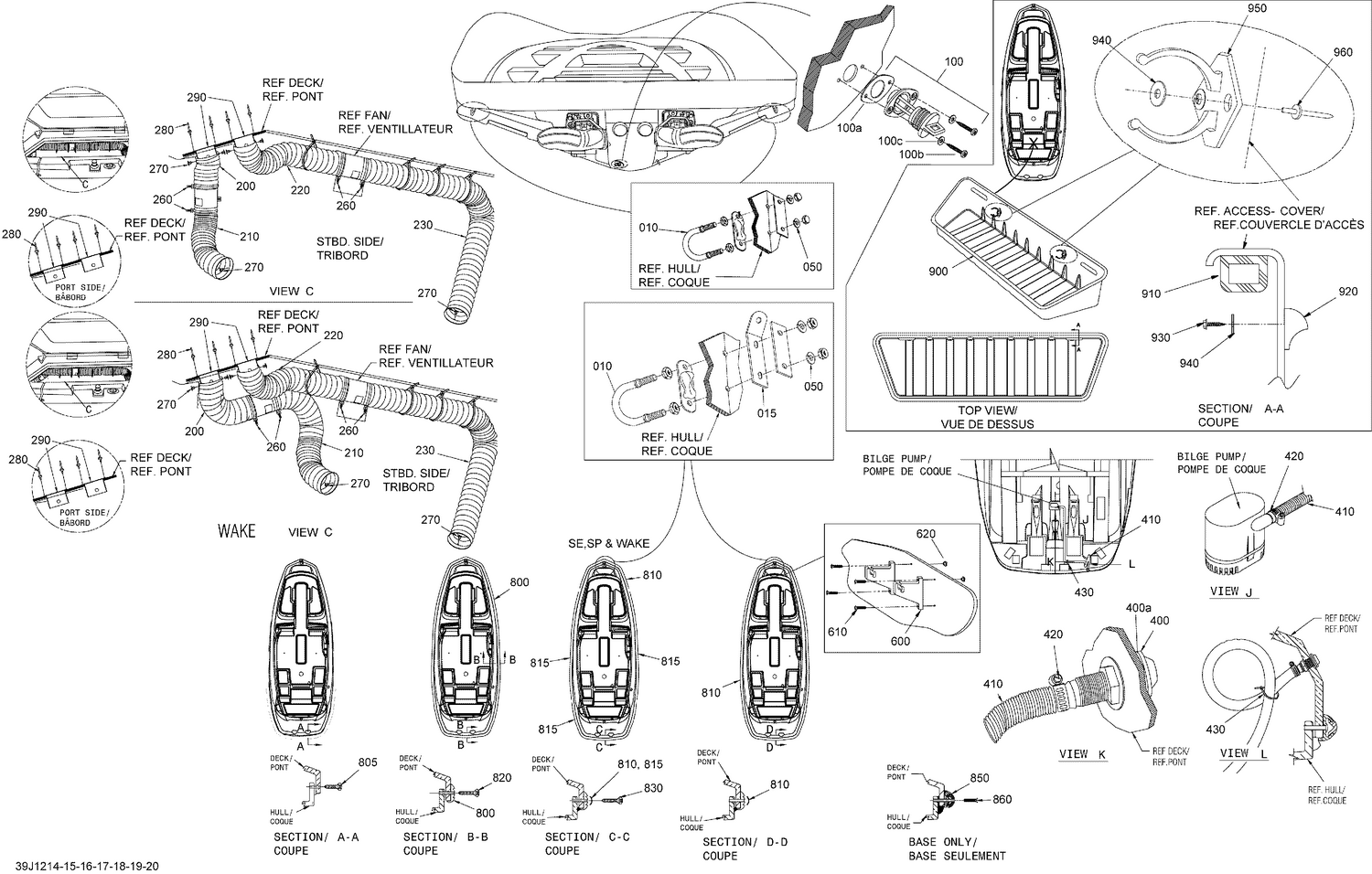

| Ref | Part Number | Description |
|---|
| 10 |
204050336 |
BOW EYE KIT 1/2? - Call your local BRP dealership |
| 15 |
204050722 |
BRACKET-TIE DOWN - Call your local BRP dealership |
| 50 |
204100048 |
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership |
| 100 |
292000187 |
Drain Plug |
| 100a |
293250030 |
GASKET - Call your local BRP dealership |
| 100b |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 100c |
234041600 |
Flat Washer 4 mm, Stainless |
| 200 |
219704358 |
Was 204050122 Vent Hose 4" |
| 210 |
219704358 |
Was 204050122 Vent Hose 4" |
| 220 |
219704358 |
Was 204050122 Vent Hose 4" |
| 230 |
219704358 |
Was 204050122 Vent Hose 4" |
| 260 |
293750047 |
Tie Rap, 533 mm |
| 270 |
293730006 |
Black, Dart |
| 280 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 290 |
204050637 |
VENT GRILL 4 - Call your local BRP dealership |
| 400 |
293710162 |
Fitting This part replaces 293710015. |
| 400a |
292001486 |
Gasket |
| 410 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 420 |
293650016 |
Tridon Clamp |
| 430 |
414115200 |
Tie-Rap 180 mm |
| 600 |
204050723 |
ANCHOR BRACKET - Call your local BRP dealership |
| 610 |
204100201 |
PHILLIPS SCREW 1/4-20 X 1-1/4 - Call your local BRP dealership |
| 620 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 805 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 820 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 900 |
292001385 |
ACCESS COVER 230 - Call your local BRP dealership |
| 910 |
219704368 |
Seal Tray 1000Mm Long |
| 920 |
291000608 |
HANDLE, WHITE - Call your local BRP dealership |
| 930 |
241141660 |
Hex. Flange Screw K40 X 16 |
