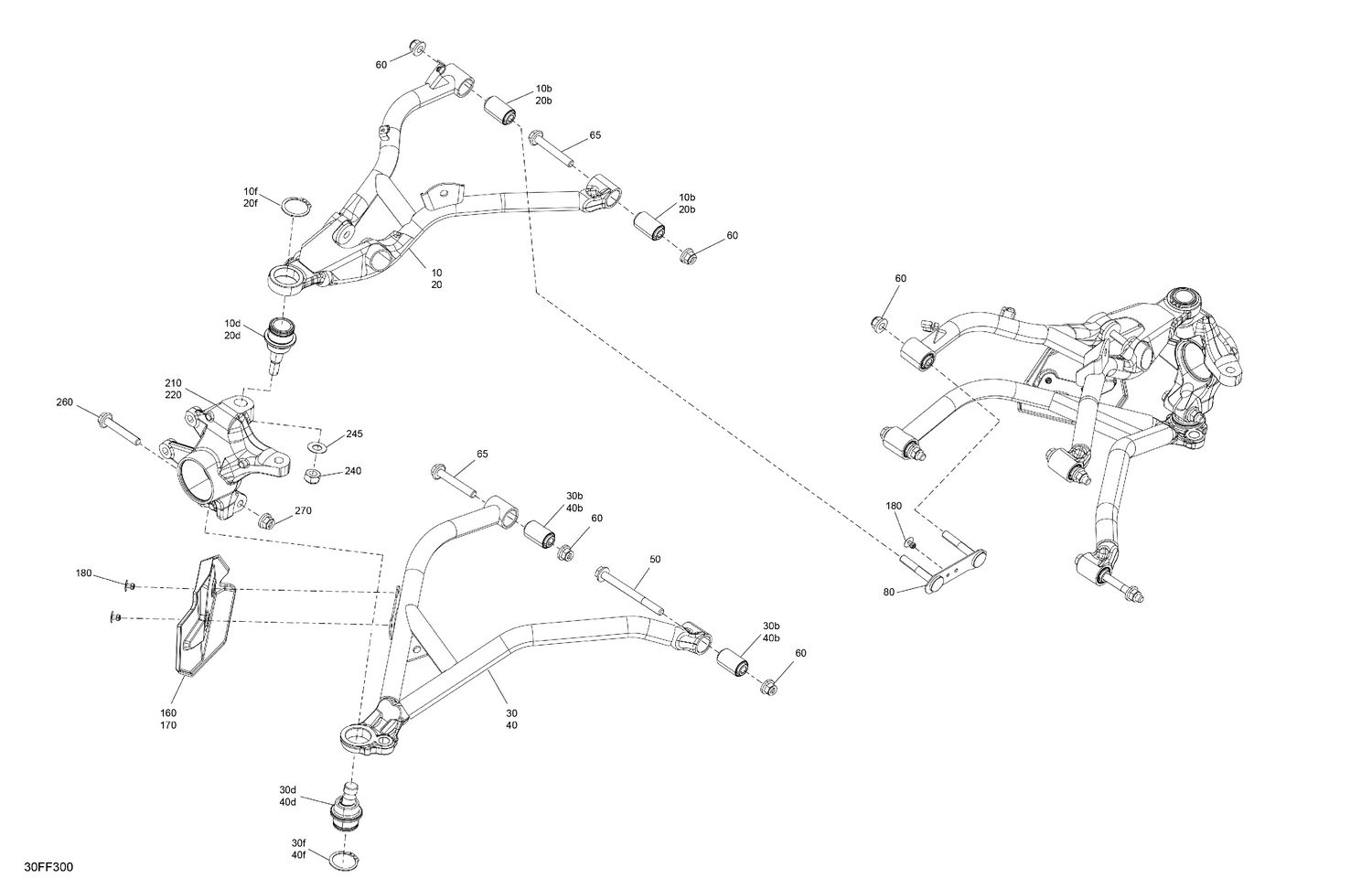

05- Suspension - Front Components
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 706004511 | Suspension Arm Bushing |
| 10d | 706202044 | Ball Joint |
| 10f | 293370035 | Circlip |
| 20b | 706004511 | Suspension Arm Bushing |
| 20d | 706202044 | Ball Joint |
| 20f | 293370035 | Circlip |
| 30b | 706004511 | Suspension Arm Bushing |
| 30d | 706202045 | Ball Joint |
| 30f | 293370035 | Circlip |
| 40b | 706004511 | Suspension Arm Bushing |
| 40d | 706202045 | Ball Joint |
| 40f | 293370035 | Circlip |
| 50 | 230601046 | Hex Flange Screw DIN.6921 |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 65 | 207606536 | Hex. Flange Screw M10 X 65 |
| 80 | 705208352 | Suspension Arm Anchorage |
| 160 | 706202134 | LH CV joint Guard |
| 170 | 706202135 | RH CV joint Guard |
| 180 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 210 | 706203212 | LH Knuckle |
| 220 | 706203213 | RH Knuckle |
| 240 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 245 | 706200281 | Hardened Washer |
| 260 | 207606044 | Hex. Flange Screw M10 X 60 |
