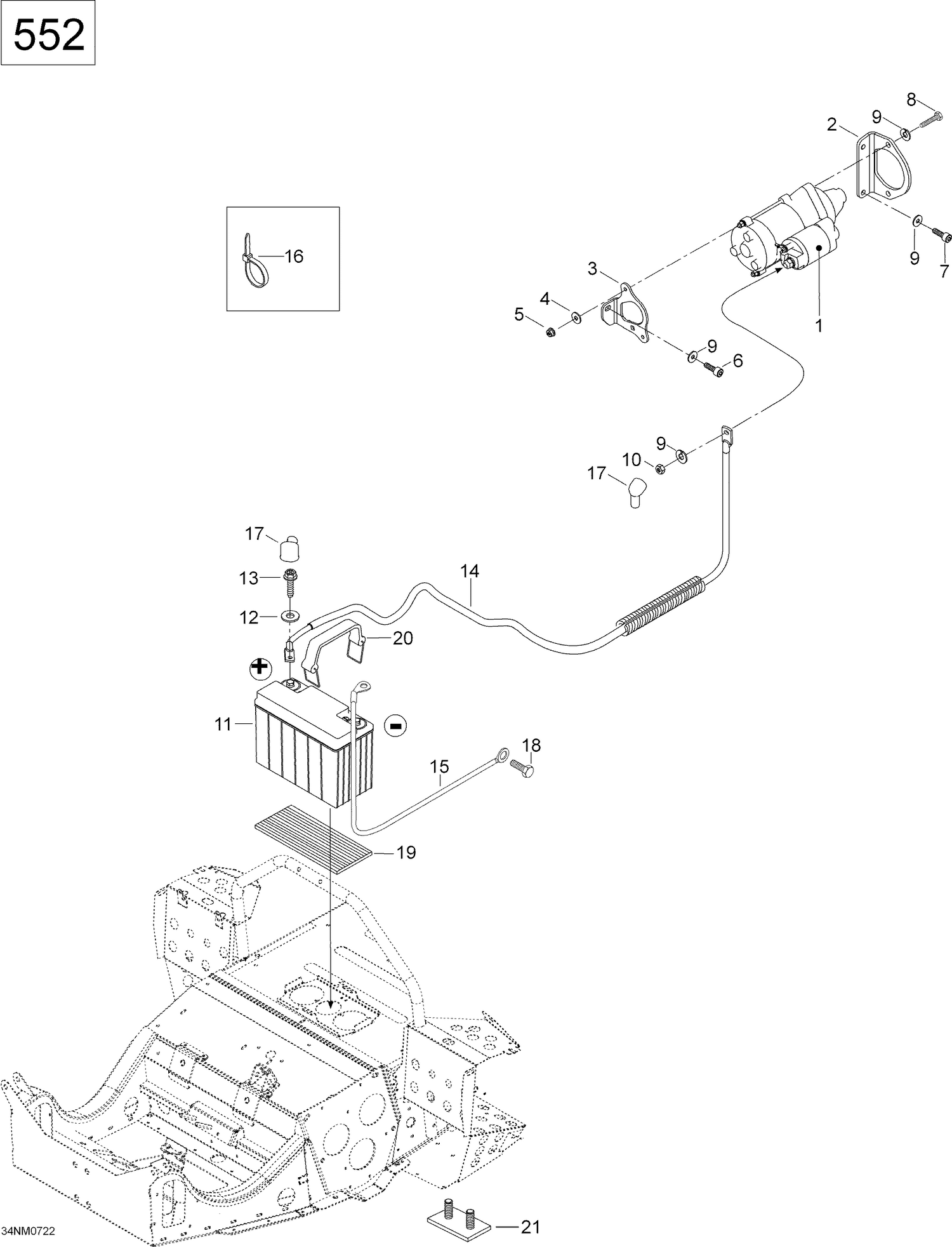

| Ref | Part Number | Description |
|---|
| 1 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 2 |
515175652 |
STARTER BRACKET - Call your local BRP dealership |
| 3 |
420951415 |
STARTER BRACKET, P.T.O. - Call your local BRP dealership |
| 4 |
20008 |
Washer A5,3 |
| 5 |
33009 |
Nut M5 |
| 6 |
40066 |
Allen sc. M8 x 16 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 7 |
40305 |
Socket head screw M8 x 20 |
| 8 |
40036 |
Hex. screw M8 x 20 |
| 9 |
20014 |
Spring washer |
| 10 |
33003 |
Nut M8 |
| 12 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 13 |
207161644 |
Screw M6 x 16 |
| 14 |
605349434 |
BATTERY WIRE - Call your local BRP dealership |
| 15 |
549887 |
Ground wire |
| 16 |
414115200 |
Tie-Rap 180 mm This part replaces 27026. |
| 17 |
570151000 |
Cap protection |
| 18 |
40327 |
Hex. screw M6 x 12 |
| 19 |
605350237 |
BATTERY CARPET - Call your local BRP dealership |
| 20 |
515176044 |
Retainer strap This part replaces 515175475. |
