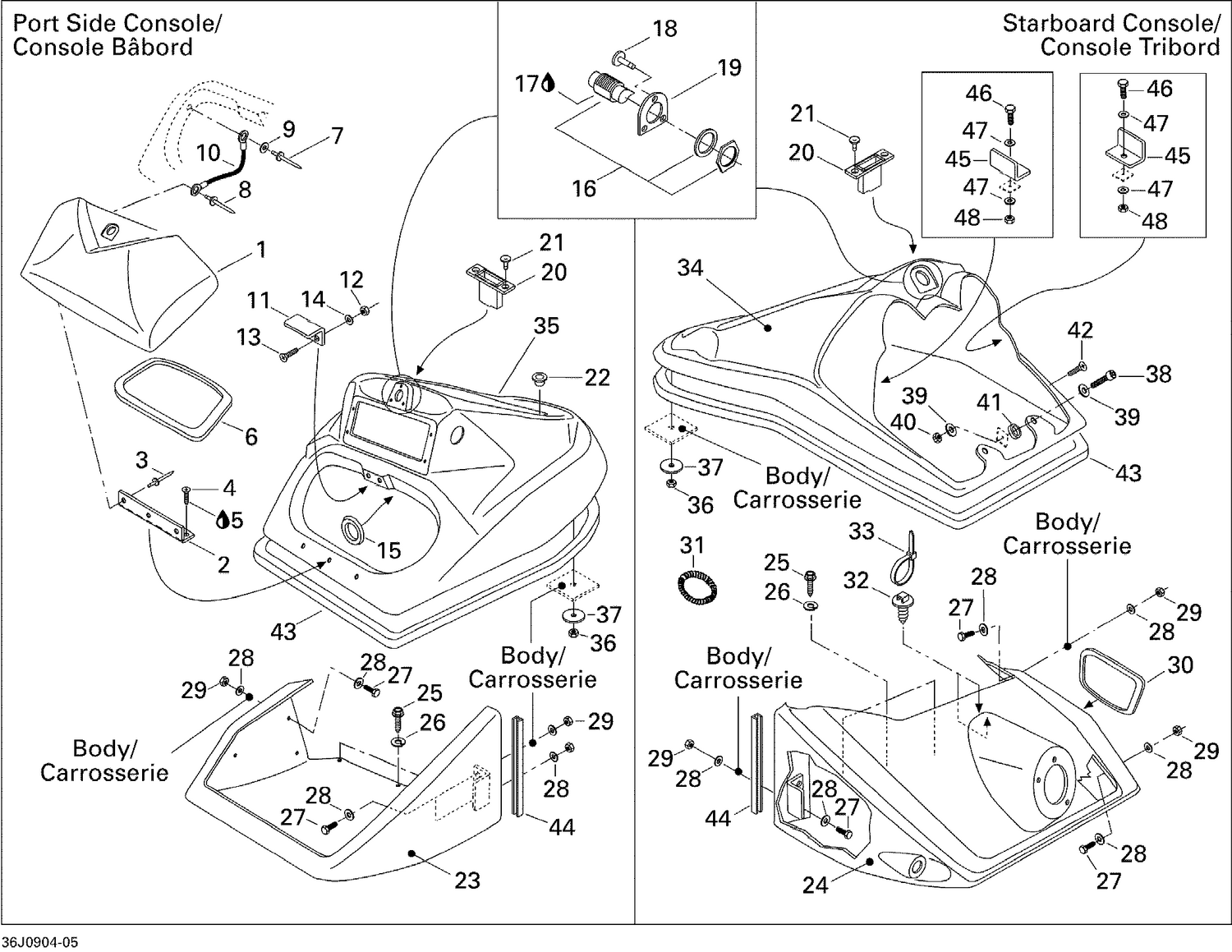

| Ref | Part Number | Description |
|---|
| 1 |
204073349 |
GLOVE BOX TRAY - Call your local BRP dealership |
| 2 |
204071945 |
Hinge, Black |
| 3 |
293150088 |
Pop Rivet 3/16" |
| 4 |
250000169 |
Phillips Pan Head Screw M4 X 40 |
| 5 |
293800060 |
Loctite 243, 10 ml |
| 6 |
219704368 |
Seal Tray 1000Mm Long |
| 7 |
293150008 |
Pop Rivet 3/16" |
| 8 |
293150088 |
Pop Rivet 3/16" |
| 9 |
234052600 |
Flat Washer 5 mm, Stainless |
| 10 |
204071498 |
RETAINER CABLE - Call your local BRP dealership |
| 11 |
204072476 |
KEEPER - Call your local BRP dealership |
| 12 |
232541600 |
Elastic Stop Nut M4 |
| 13 |
208641660 |
Phillips Screw M4 X 16 |
| 14 |
234040600 |
Flat Washer 4 mm |
| 15 |
204050326 |
SPLIT LOOM 3/8, METER - Call your local BRP dealership |
| 16 |
204071838 |
LATCH KIT, 3 LATCHES - Call your local BRP dealership |
| 18 |
204130080 |
RIVET_PLASTIC - Call your local BRP dealership |
| 19 |
204070304 |
LATCH PLATE - Call your local BRP dealership |
| 20 |
204072064 |
LATCH GUIDE - Call your local BRP dealership |
| 21 |
204130080 |
RIVET_PLASTIC - Call your local BRP dealership |
| 22 |
204072468 |
DRAIN FITTING - Call your local BRP dealership |
| 23 |
204072762 |
Lower Console Ass'y, Port Side |
| 24 |
204073147 |
Starboard Console Ass'y |
| 25 |
204050138 |
SCREW-SELF DRILL(HEX WASHER HEAD) - Call your local BRP dealership |
| 26 |
211200025 |
Lock Washer 1/4” |
| 27 |
207163560 |
Hex. Screw M6 X 35 |
| 28 |
234062600 |
Flat Washer M6, Stainless |
| 29 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 30 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 31 |
204550015 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 32 |
293730040 |
Mount Dart |
| 33 |
414115200 |
Tie-Rap 180 mm |
| 34 |
204072337 |
UPPER CONSOLE, STARBOARD - Call your local BRP dealership |
| 35 |
204072341 |
Upper Console Ass'y, Port Side |
| 36 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 37 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 38 |
207064560 |
HEX. SCREW M6 X 45 - Call your local BRP dealership |
| 39 |
234062600 |
Flat Washer M6, Stainless |
| 40 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 41 |
204071928 |
ALUMINUM SPACER - Call your local BRP dealership |
| 42 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 43 |
204072752 |
TRIM, BLACK, 7/16?, METER - Call your local BRP dealership |
| 44 |
204072759 |
Trim, White, 7/16”, Meter |
| 45 |
Not |
Available As Spare Part - Angled Support |
| 46 |
207064560 |
HEX. SCREW M6 X 45 - Call your local BRP dealership |
| 47 |
234062600 |
Flat Washer M6, Stainless |
