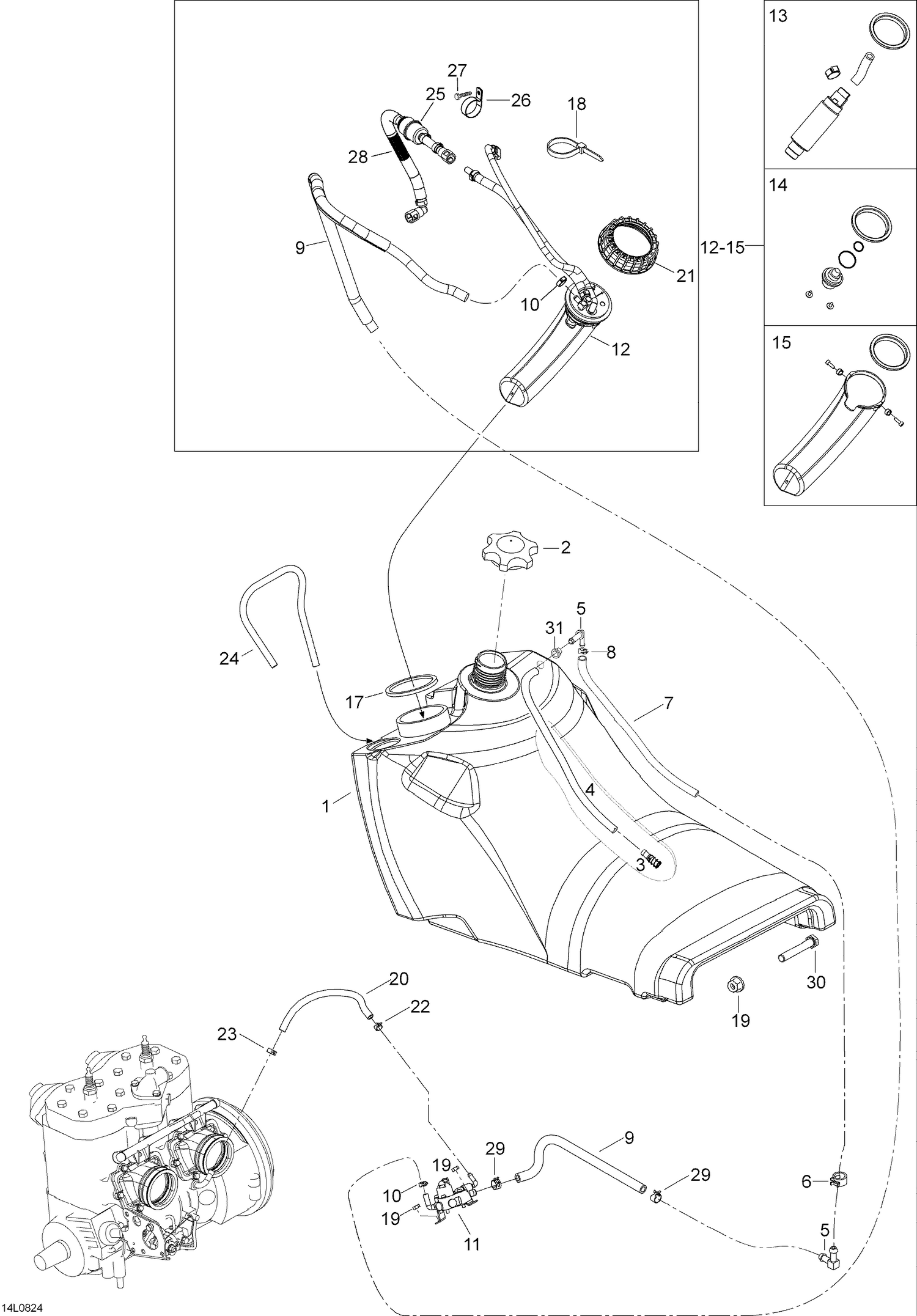

02- Fuel System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605253345 | Fuel tank |
| 2 | 709000059 | FUEL CAP - Call your local BRP dealership |
| 3 | 414872100 | Fuel filter |
| 4 | 39048 | Hose |
| 5 | 5341709 | CONNECTOR-MALE - Call your local BRP dealership |
| 6 | 605627003 | Clamp |
| 7 | 513033374 | Formed Hose This part replaces 513033027. |
| 8 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 9 | 513033022 | HOSE 8 MM, METER - Call your local BRP dealership |
| 10 | 414655700 | Clamp |
| 11 | 403901812 | Fuel pump |
| 13 | 861302700 | PUMP KIT - Call your local BRP dealership |
| 14 | 861302100 | REGULATOR KIT - Call your local BRP dealership |
| 15 | Not | Available As Spare Part - Reservoir kit |
| 17 | 513033039 | SEAL - Call your local BRP dealership |
| 18 | 414115200 | Tie-Rap 180 mm This part replaces 27026. |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 20 | 513033035 | HOSE - Call your local BRP dealership |
| 21 | 513033040 | Cover |
| 22 | 414415200 | Clamp |
| 23 | 513033029 | Clamp |
| 24 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 25 | 513033133 | Fuel line + filter |
| 26 | 513033047 | Clamp |
| 27 | 40327 | Hex, screw M6 x 12 |
| 28 | 27127 | Tubing |
| 29 | 414420700 | Universal Spring Clamp |
| 30 | 40110 | Hex, screw M6 x 35 |
