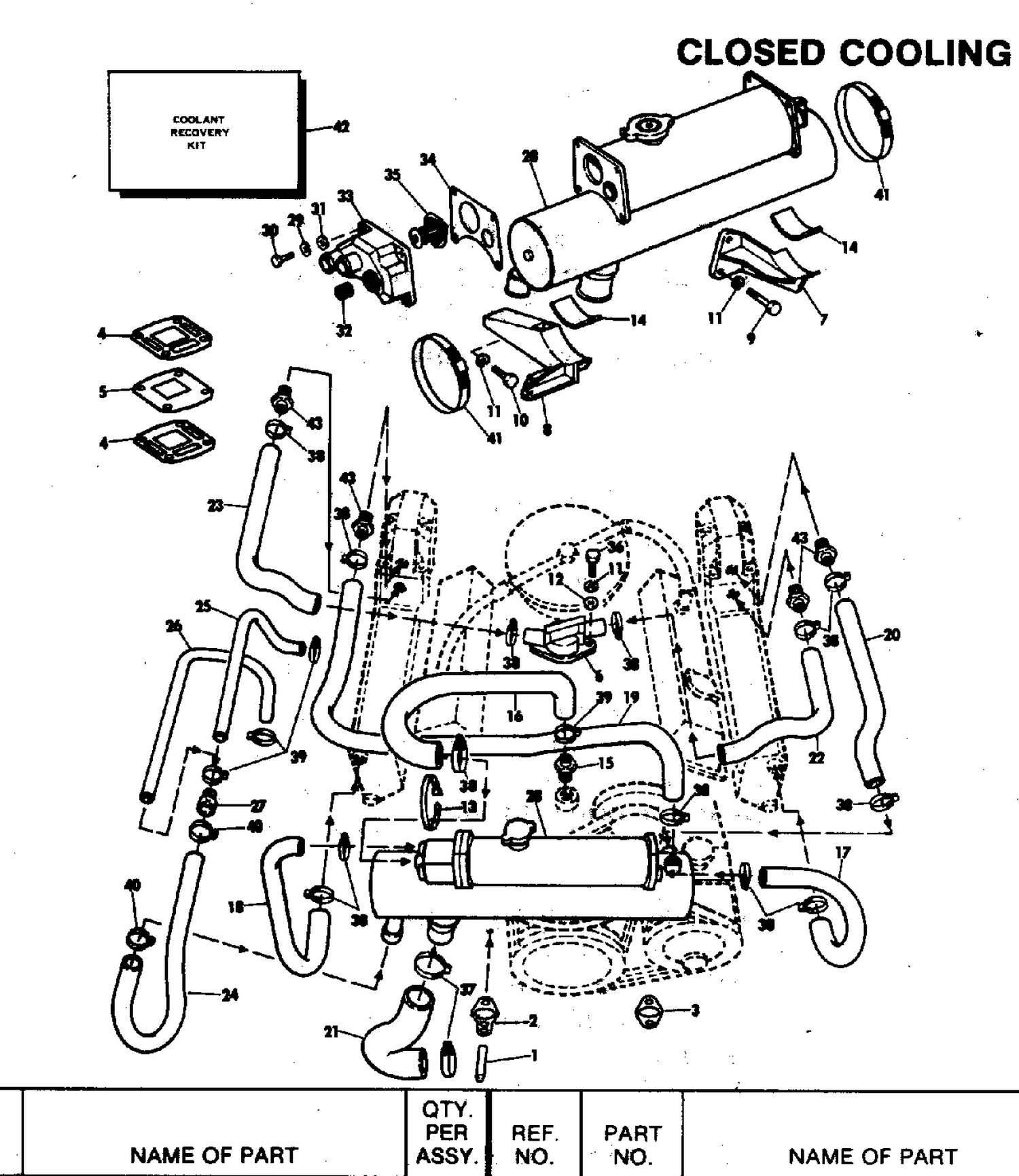

| Ref | Part Number | Description |
|---|
| 1 |
0310956 |
DRIVE PIN |
| 2 |
3852477 |
GASKET, Pump to block This part replaces 0909835. |
| 3 |
0909852 |
GASKET, Port |
| 4 |
0910113 |
GASKET, Elbow |
| 5 |
0910176 |
PLATE, Manifold to elbow |
| 6 |
0910416 |
HOUSING, Block outlet |
| 7 |
0910419 |
BRACKET, Heat exchange port |
| 8 |
0910422 |
BRACKET, Heat exchange starboard |
| 9 |
0301431 |
SCREW |
| 10 |
0306414 |
SCREW |
| 11 |
0120177 |
L'WASHER, Alternator to brkt |
| 14 |
0909842 |
PAD, Bracket, heat exchanger |
| 15 |
9096864 |
NIPPLE, Water pump by-pass |
| 16 |
0910400 |
HOSE, Thermostat housing to water pump |
| 17 |
0910401 |
HOSE, Heat exchanger to manifold, port |
| 18 |
0910402 |
HOSE, Thermostat housing to manifold, starboa |
| 19 |
0910407 |
HOSE, Heat exchanger to high rise, starboard |
| 20 |
0910408 |
HOSE, Heat exchanger to high rise, port |
| 21 |
0910410 |
HOSE, Heat exchange to water pump |
| 22 |
0910464 |
HOSE, Manifold to block housing, port |
| 23 |
0910465 |
HOSE, Manifold to block housing, starboard |
| 24 |
0910628 |
HOSE, Reducer to heat exchanger |
| 25 |
0910627 |
HOSE, Oil cooler to reducer |
| 27 |
0910629 |
REDUCER, Hose |
| 28 |
0982889 |
HEAT EXCHANGER & THERMOSTAT HOUSING |
| 30 |
0306450 |
SCREW |
| 31 |
0306453 |
LOCKWASHER, Fuel pump |
| 32 |
0908276 |
CAP PLUG |
| 33 |
0910398 |
THERMOSTAT HOUSING |
| 34 |
0910399 |
GASKET, Thermostat housing |
| 35 |
0981966 |
TERHMOSTAT |
| 36 |
0306414 |
SCREW |
| 38 |
0912627 |
CLAMP This part replaces 0313851. |
| 39 |
0979803 |
CLAMP |
| 40 |
3853786 |
CLAMP INSTRUMENT CABLE This part replaces 0980577. |
| 41 |
3852604 |
CLAMP, Exhaust This part replaces 0981323. |
| 42 |
0982013 |
COOLANT RECOVERY KIT |
