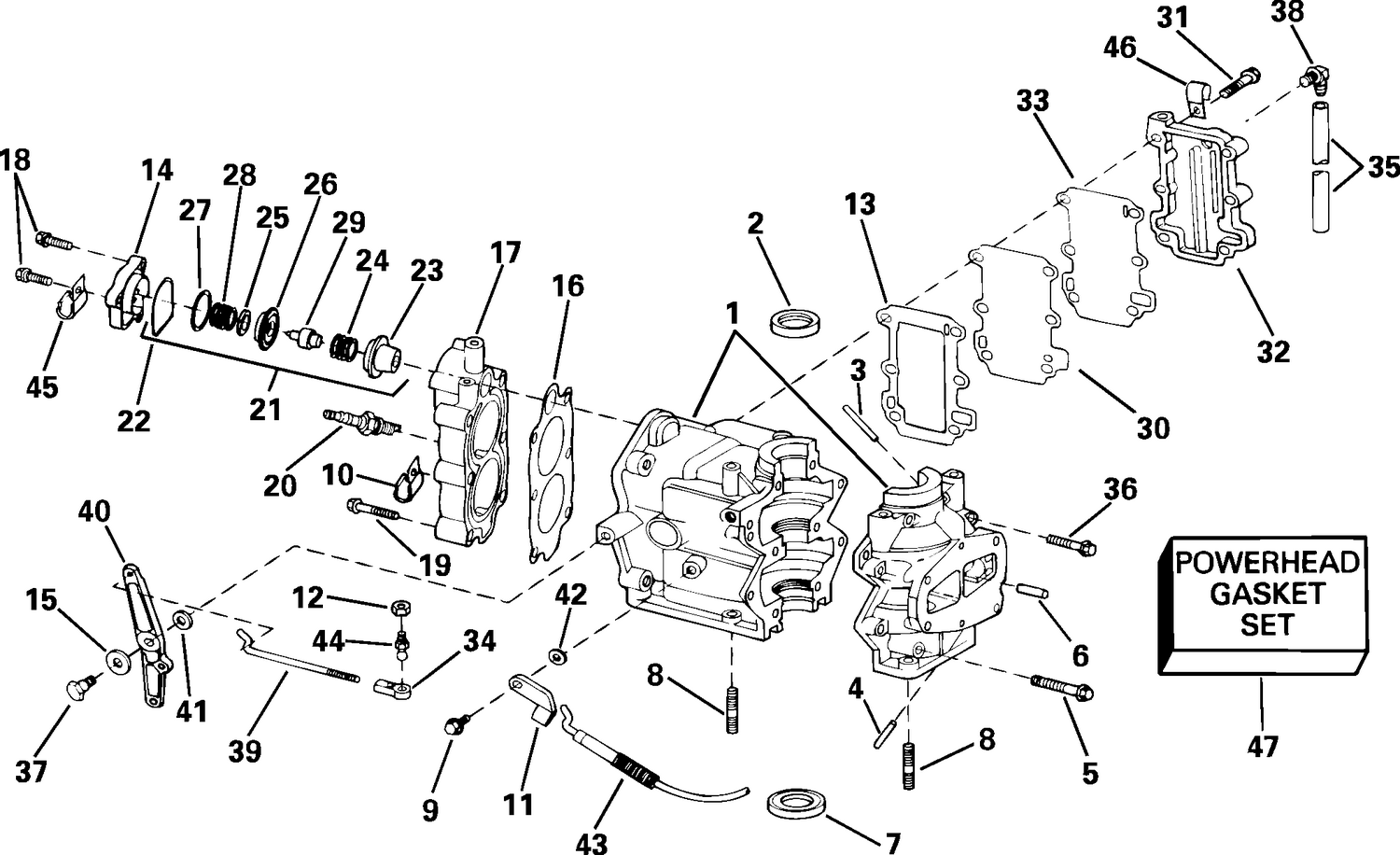

| Ref | Part Number | Description |
|---|
| 1 |
0437977 |
CYLINDER & C'CASE Assy, 8 HP |
| 1 |
0437978 |
CYLINDER & C'CASE Assy, 6 HP |
| 13 |
0329080 |
GASKET, Cover 8 models |
| 14 |
0336181 |
COVER, Thermostat |
| 15 |
0330995 |
RONDELLE, levier |
| 16 |
0325273 |
GASKET, Cylinder head |
| 17 |
0335895 |
CYLINDER HEAD |
| 19 |
0319226 |
SCREW, Cylinder head |
| 20 |
0437682 |
SPARK PLUG, Champion QL86C |
| 21 |
0434067 |
THERMOSTAT Assy |
| 30 |
0329048 |
EXHAUST COVER, Inner |
| 31 |
0307471 |
SCREW |
| 32 |
0327259 |
EXHAUST COVER, Outer |
| 33 |
0325271 |
GASKET Cover |
| 34 |
0332947 |
CONNECTOR, Throttle cable |
| 35 |
0331838 |
HOSE, Adapter to control valve |
| 36 |
0314951 |
SCREEN, Mfld. to c'case |
| 39 |
0336157 |
LINK, Throttle lever |
| 40 |
0336028 |
COVER, Shift link |
| 41 |
0329241 |
RONDELLE |
| 42 |
0324956 |
RONDELLE, câble d'accélérateur |
| 43 |
0433325 |
CABLE ASSY., Throttle |
| 44 |
0332946 |
SCREW, Ball joint |
| 45 |
0330151 |
CLAMP, Harness to oil tank boss |
| 46 |
0330151 |
CLAMP, Harness to oil tank boss |
