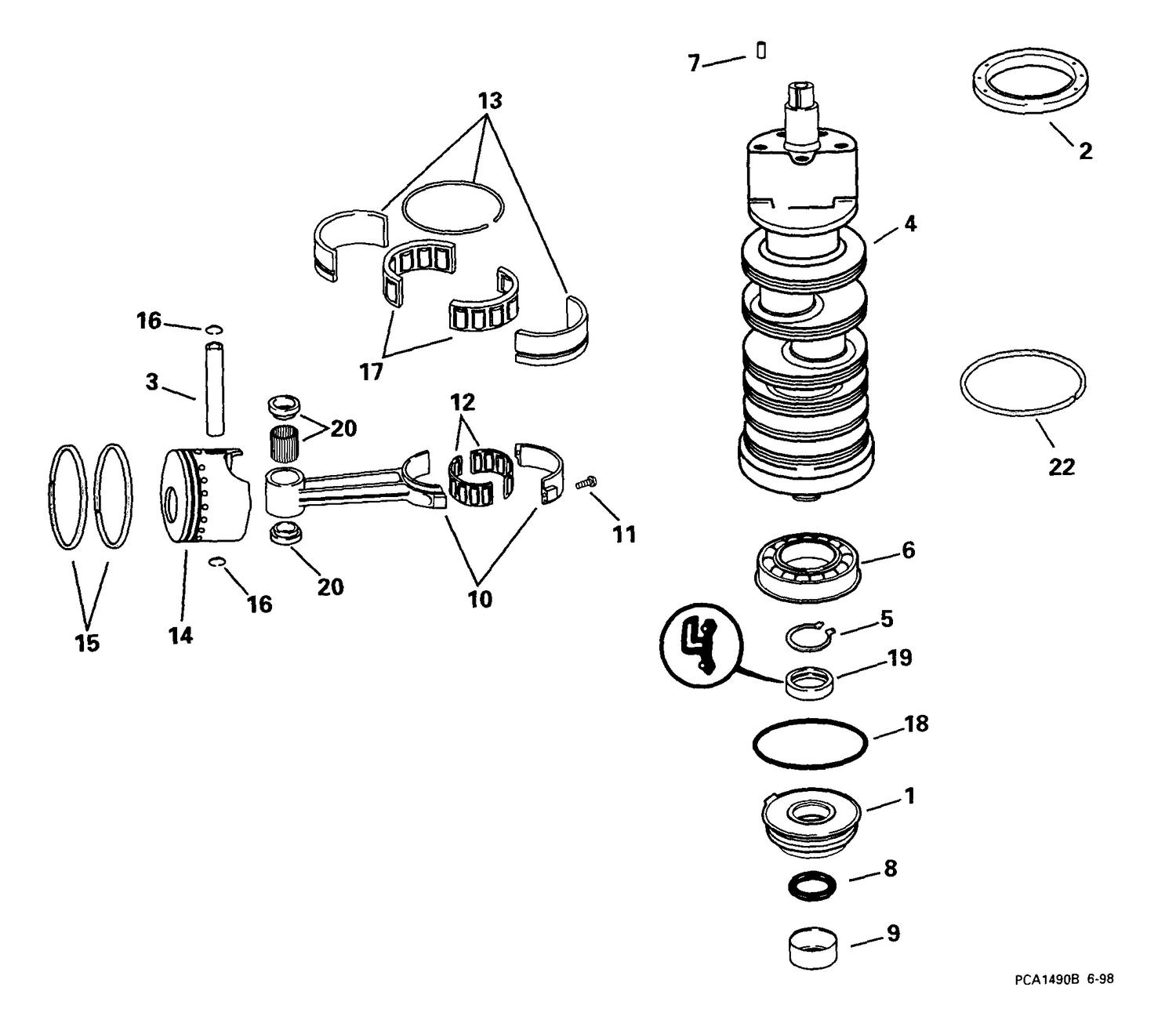

| Ref | Part Number | Description |
|---|
| 1 |
0340559 |
CORPS, joint, palier inférieur |
| 3 |
0327861 |
Wrist Pin |
| 4 |
0439568 |
CRANKSHAFT Assy |
| 5 |
0326047 |
Retaining Ring |
| 8 |
0337087 |
O-Ring |
| 9 |
0337030 |
Sleeve, Crankshaft |
| 10 |
5006383 |
CONNECTING ROD This part replaces 0392591. |
| 12 |
0387787 |
BEARING Assembly, Connecting rod |
| 13 |
0352960 |
BEARING RACE, Center main This part replaces 0320499. |
| 14 |
5006717 |
Kit This part replaces 0439527. |
| 14 |
5006718 |
Kit This part replaces 0439528. |
| 14 |
5006719 |
Pstn&Rng Kit This part replaces 0439867. |
| 14 |
5006720 |
Pstn&Rng Kit This part replaces 0439868. |
| 16 |
0317831 |
Circlip |
| 17 |
5007190 |
BEARING Assembly, Center main This part replaces 0387041. |
| 20 |
0395627 |
BEARING & RETAINER |
