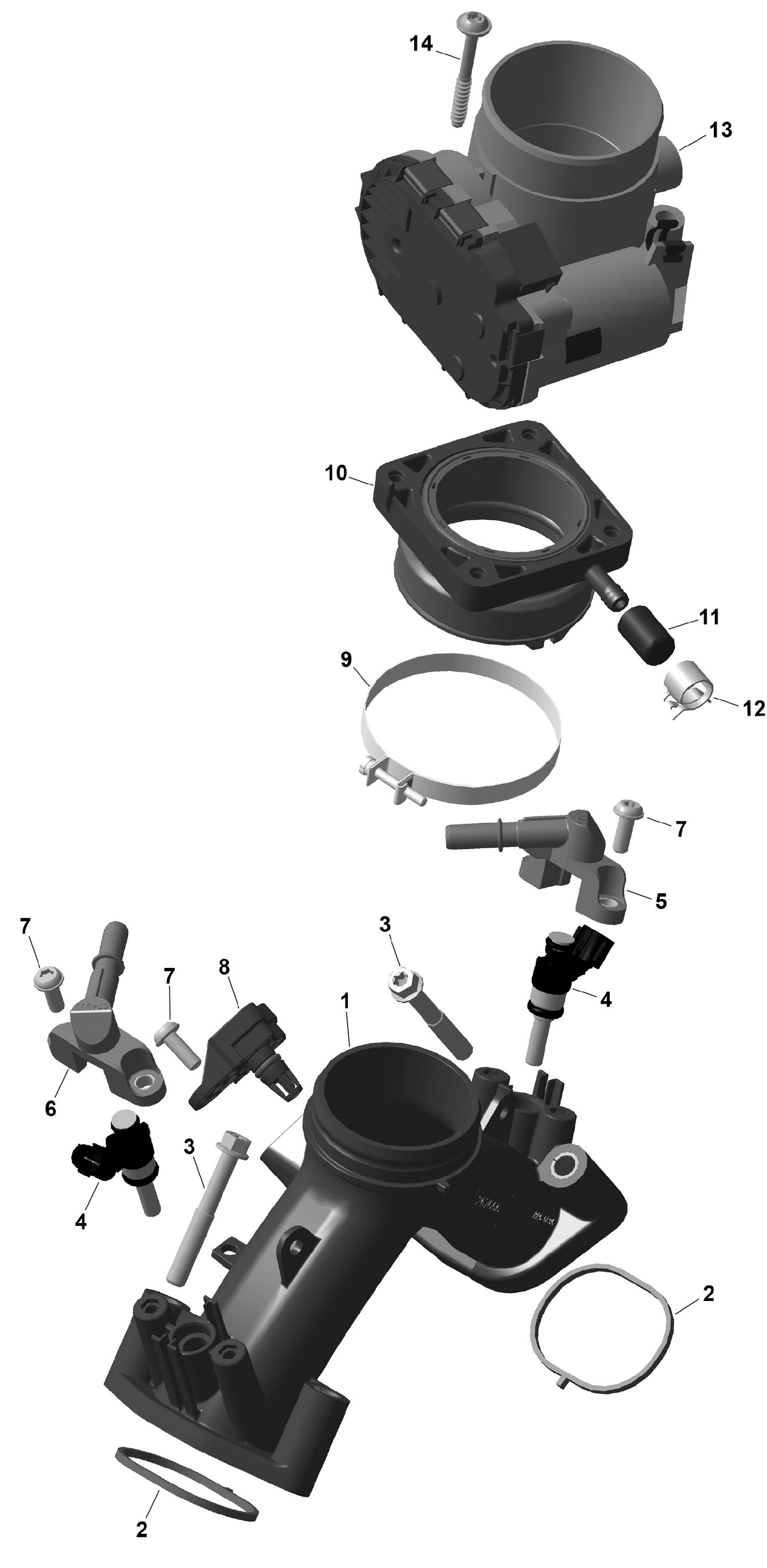

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420267556 | Air Intake Manifold |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 420874873 | Fuel Injector Ev-Se |
| 5 | 420874935 | Fuel Rail |
| 6 | 420874939 | Fuel Rail |
| 7 | 420641589 | Torx-Pt-Screw |
| 8 | 420874658 | Pressure And Temperature Sensor |
| 9 | 420251209 | Clamp |
| 11 | 420201911 | Closure Cap |
| 12 | 420853512 | Spring Type Clamp 14 |
| 13 | 420892596 | Throttle Body Socket Ass'y |
