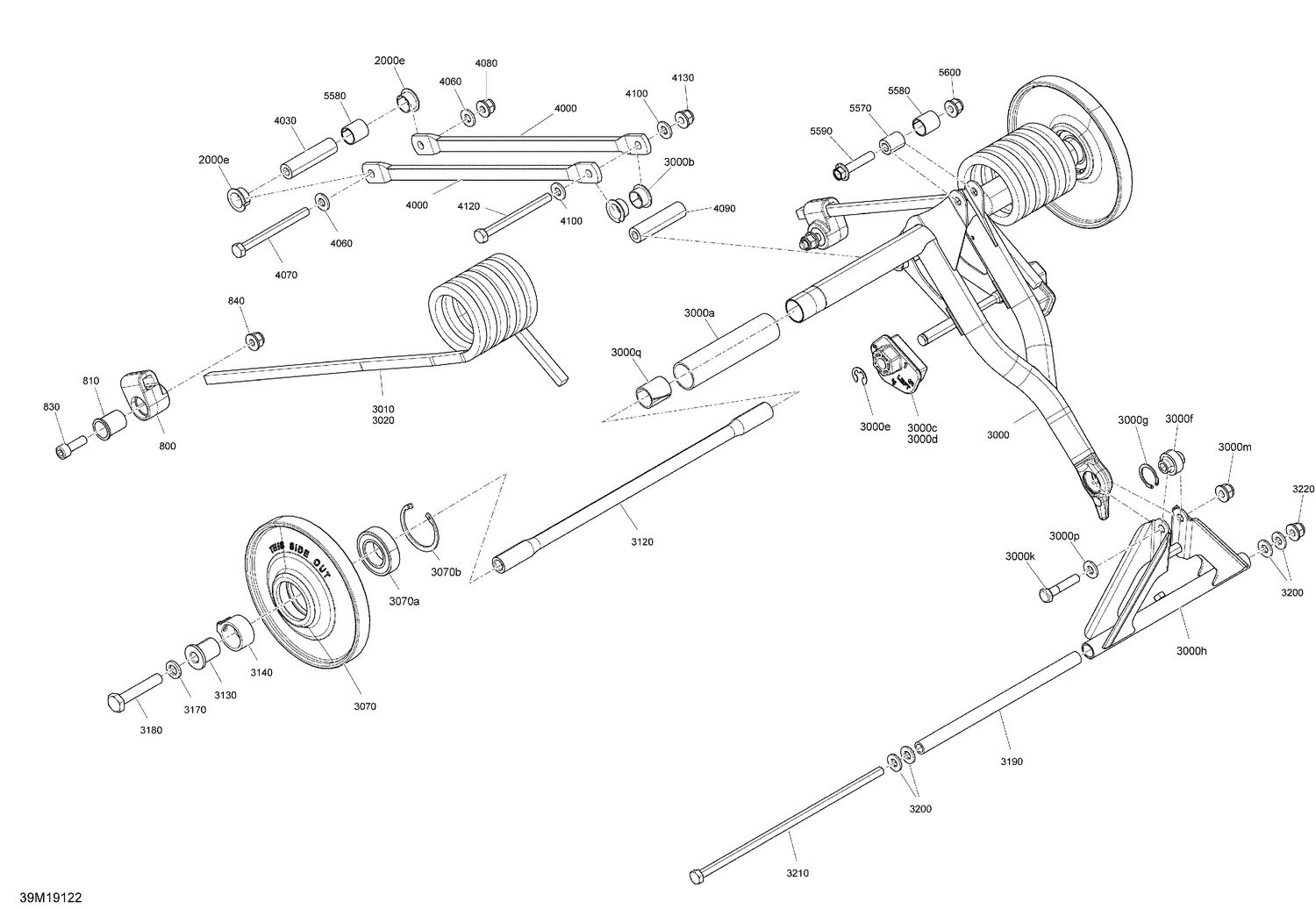

08- Rear Suspension - Upper Section - SP 146
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 861805547 | Spring Support Kit This part replaces 503195351. |
| 810 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 2000e | 503191555 | Swivel Bushing |
| 3000a | 503193218 | Bushing |
| 3000b | 503191555 | Swivel Bushing |
| 3000c | 503191565 | LH Cam Adjuster |
| 3000d | 503191566 | RH Cam Adjuster |
| 3000e | 293370013 | E-Circlip |
| 3000f | 503194035 | Radial Joint |
| 3000g | 293370114 | Inner Circlip |
| 3000h | 503193699 | Pivot Arm |
| 3000k | 207084056 | Hex. Screw M8 X 1.25 X 40 |
| 3000m | 233281466 | Elastic Flange Nut M8 |
| 3000p | 503192494 | Washer |
| 3000q | 503191556 | Extended Bushing |
| 3010 | 503193158 | Black, LH Spring Square This part replaces 503192136. |
| 3020 | 503193159 | Black, RH Spring Square This part replaces 503192137. |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3120 | 503193441 | Upper Shaft |
| 3130 | 503194970 | Bushing |
| 3140 | 503193439 | Retaining Ring |
| 3170 | 503192496 | Washer |
| 3180 | 250000605 | Hex. Screw S.Grip M10 X 55 |
| 3190 | 503189156 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503192900 | Acceleration Link Rod |
| 4030 | 503193993 | Axle |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503193993 | Axle |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 5570 | 503196509 | Axle Shock Absorber This part replaces 503192606. |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
