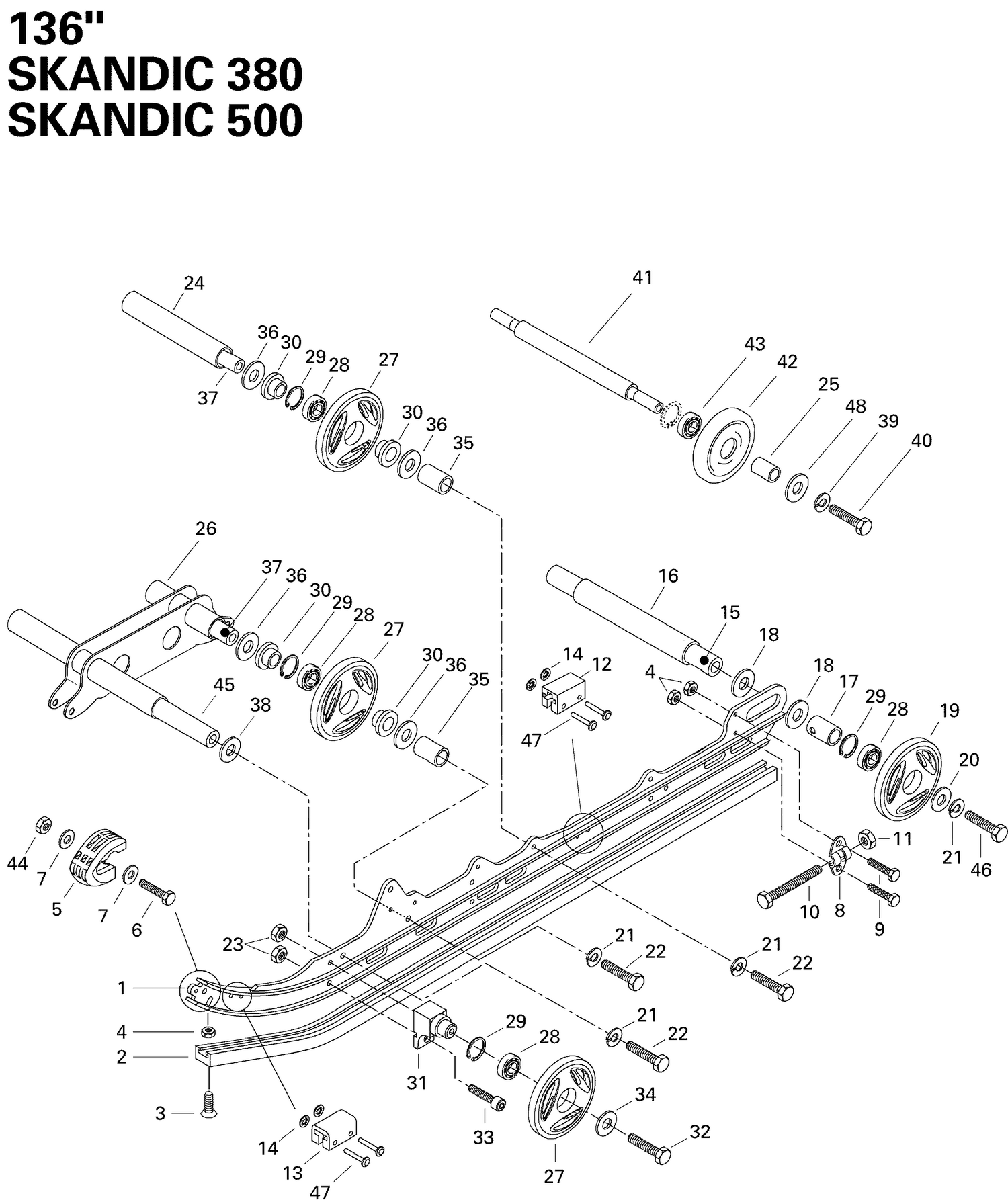

| Ref | Part Number | Description |
|---|
| 1 |
503166700 |
Runner (136”) |
| 2 |
605355362 |
Slide Shoe This part replaces 560102300. |
| 3 |
208562560 |
Phillips Screw M6 X 25 This part replaces 216362560. |
| 4 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 5 |
572075400 |
RUNNER PROTECTOR - Call your local BRP dealership |
| 6 |
222052565 |
SCREW-HEX.CAP DIN.933 - Call your local BRP dealership |
| 7 |
391301600 |
Washer |
| 8 |
503155300 |
Tensioner |
| 9 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 10 |
732601017 |
Hex. Screw M10 x 110 |
| 11 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 12 |
570036700 |
Rubber Stopper |
| 13 |
570048000 |
Rubber Stopper |
| 14 |
389804300 |
Push Nut |
| 15 |
503162400 |
REAR AXLE - Call your local BRP dealership |
| 16 |
503155500 |
Spacer |
| 17 |
503189809 |
Outer Spacer This part replaces 503154800. |
| 18 |
504108200 |
SHIM - Call your local BRP dealership |
| 19 |
570045322 |
Bond Wheel |
| 20 |
503183300 |
Washer This part replaces 503164300. |
| 21 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 22 |
207103544 |
Hex. Screw M10 X 35 This part replaces 222003565. |
| 23 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 24 |
503153100 |
Spacer |
| 25 |
572048300 |
Spacer |
| 26 |
503152100 |
Welded Shock Support |
| 27 |
503190797 |
Wheel 135 This part replaces 570045222. |
| 28 |
293350115 |
Ball Bearing This part replaces 405404500. |
| 29 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 30 |
503189534 |
Cushion This part replaces 414888400. |
| 31 |
503163600 |
Support |
| 32 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership This part replaces 222087565. |
| 33 |
205082544 |
Socket Head Screw M8 X 25 This part replaces 222982565. |
| 34 |
517078700 |
WASHER - Call your local BRP dealership |
| 35 |
503151000 |
Spacer |
| 36 |
503154000 |
WASHER - Call your local BRP dealership |
| 37 |
503152800 |
Axle Wheel |
| 38 |
503007900 |
Hard Washer |
| 39 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 40 |
207183044 |
Hex. Screw M8 X 30 This part replaces 222083065. |
| 41 |
503153600 |
Wheel Support Axle |
| 43 |
405404600 |
Ball Bearing |
| 44 |
232551414 |
Elastic Stop Nut M5 This part replaces 228551045. |
| 45 |
503152800 |
Axle Wheel |
| 46 |
250000019 |
Hex. Screw With Nylon This part replaces 732601002. |
| 47 |
390908700 |
Rivet 3/16 x 1-3/8 |
