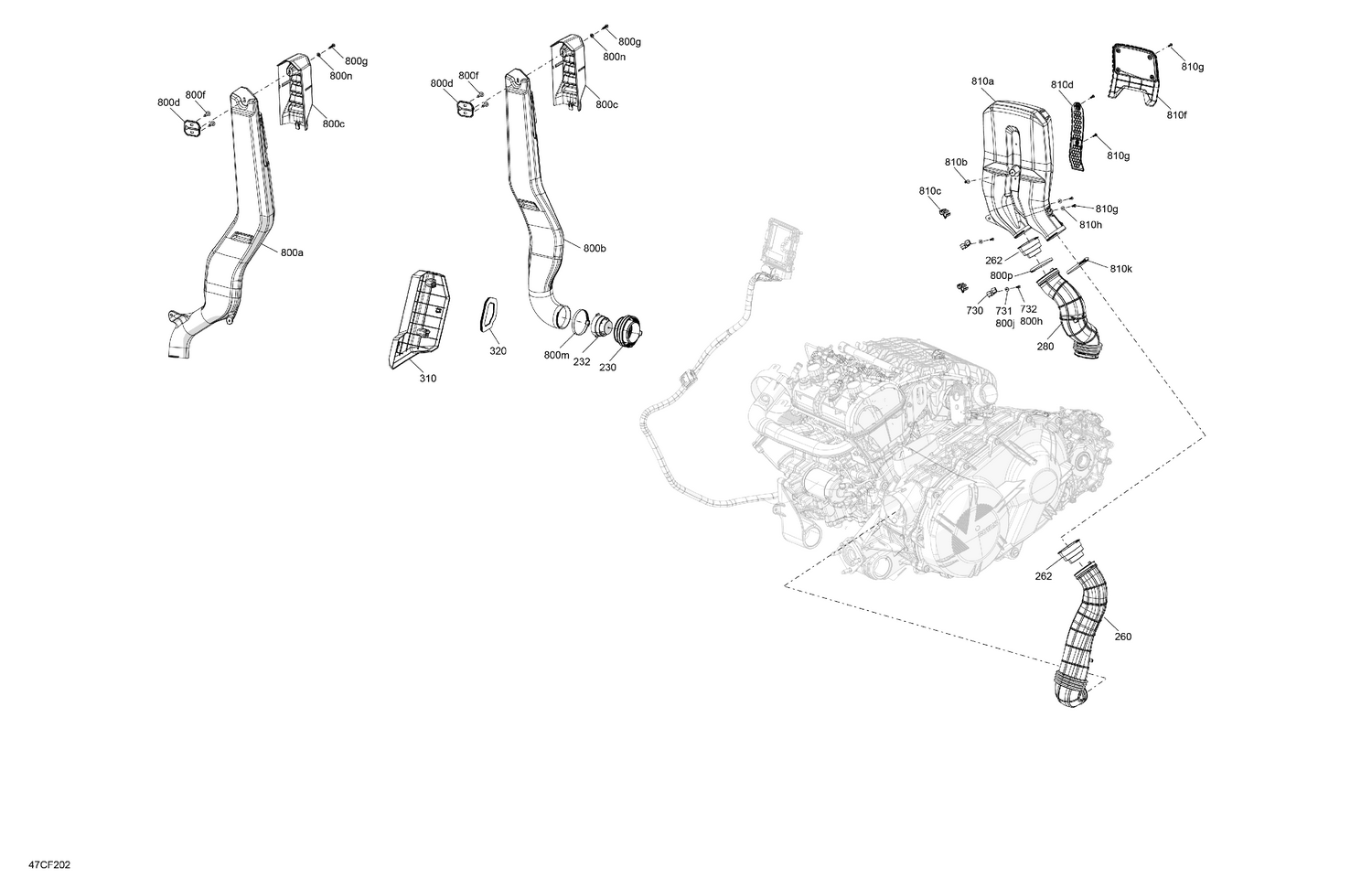

07- Body - Snorkel
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 230 | 706600441 | Adapter |
| 232 | 293000148 | CAP |
| 260 | 706600458 | CVT Cooling Duct |
| 262 | 293000148 | CAP |
| 280 | 706600456 | Adapter |
| 310 | 706600435 | RH Cover |
| 320 | 706600464 | Plug |
| 730 | 709001652 | Fastener |
| 731 | 250200025 | Washer M5 |
| 732 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 800a | 706600472 | Snorkel |
| 800b | 706600459 | Pipe In |
| 800c | 706600462 | Air Inlet Grille |
| 800d | 705801451 | Cap |
| 800f | 250000874 | Torx Truss M8 X 25 |
| 800g | 250001378 | Screw Pt Hex. K60 X 25 |
| 800h | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 800j | 250200025 | Washer M5 |
| 800m | 293650091 | Norma Clamp |
| 800n | 549011524 | Retaining Ring |
| 800p | 514052983 | Norma Gear Clamp |
| 810a | 706600457 | CVT Cooling Duct |
| 810b | 293150307 | Black, Ornit Rivet 3/16 X ,925 This part replaces 293150307. |
| 810c | 709001653 | Fastener |
| 810d | 707003662 | Ventillation Cover |
| 810f | 706600471 | Ventilation Cover |
| 810g | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 810h | 250200025 | Washer M5 |
