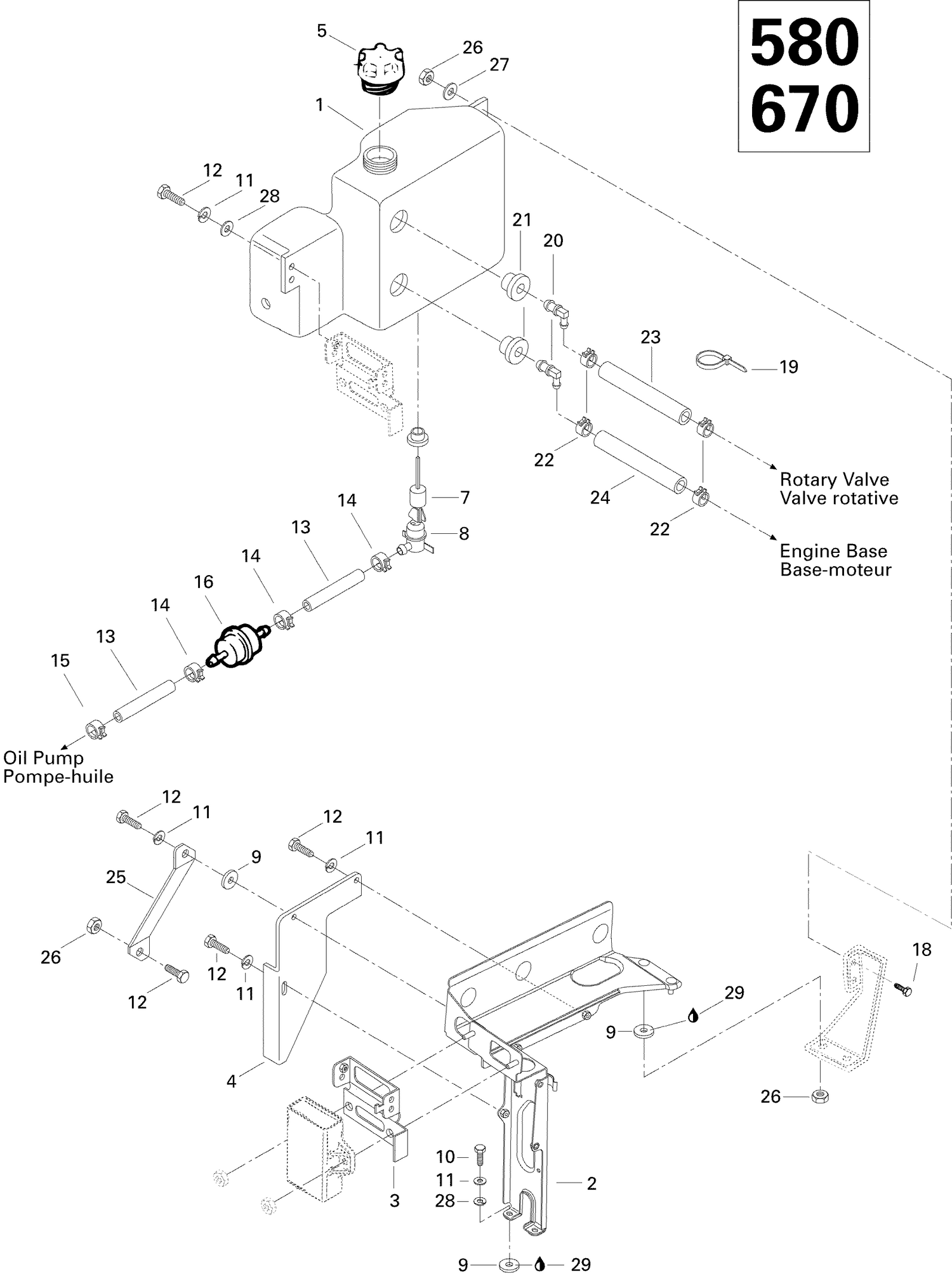

02- Oil Tank And Support 580
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572043102 | Injection Oil Tank |
| 2 | 517281200 | Support |
| 3 | 517260300 | Upper Support |
| 4 | 517249100 | Deflector |
| 5 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 6 | 570023000 | Insulating Ring |
| 7 | 414681900 | Float |
| 8 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 9 | 414454400 | Rubber Spacer |
| 10 | 207162044 | Hex. Screw M6 X 20 This part replaces 222062065. |
| 11 | 234161471 | Lock Washer M6, Black This part replaces 224761110. |
| 12 | 207161644 | Hex. Screw M6 X 16 This part replaces 222061665. |
| 13 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 14 | 414415200 | Spring Clamp |
| 15 | 414420700 | Spring Clamp |
| 16 | 414536500 | Filter |
| 17 | 408801100 | SPRING CLIP - Call your local BRP dealership |
| 18 | 207762044 | Carriage Bolt M6 X 20 This part replaces 222262065. |
| 19 | 414115200 | Tie-Rap 180 mm |
| 20 | 414523600 | Elbow Fitting |
| 21 | 707800347 | Grommet This part replaces 570273900. |
| 22 | 414655700 | Spring Clamp |
| 23 | Not | Available As Spare Part - Oil Line |
| 24 | 414644800 | OIL LINE - Call your local BRP dealership |
| 25 | 504098900 | Side Support |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 27 | 224061201 | Flat Washer |
| 28 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
