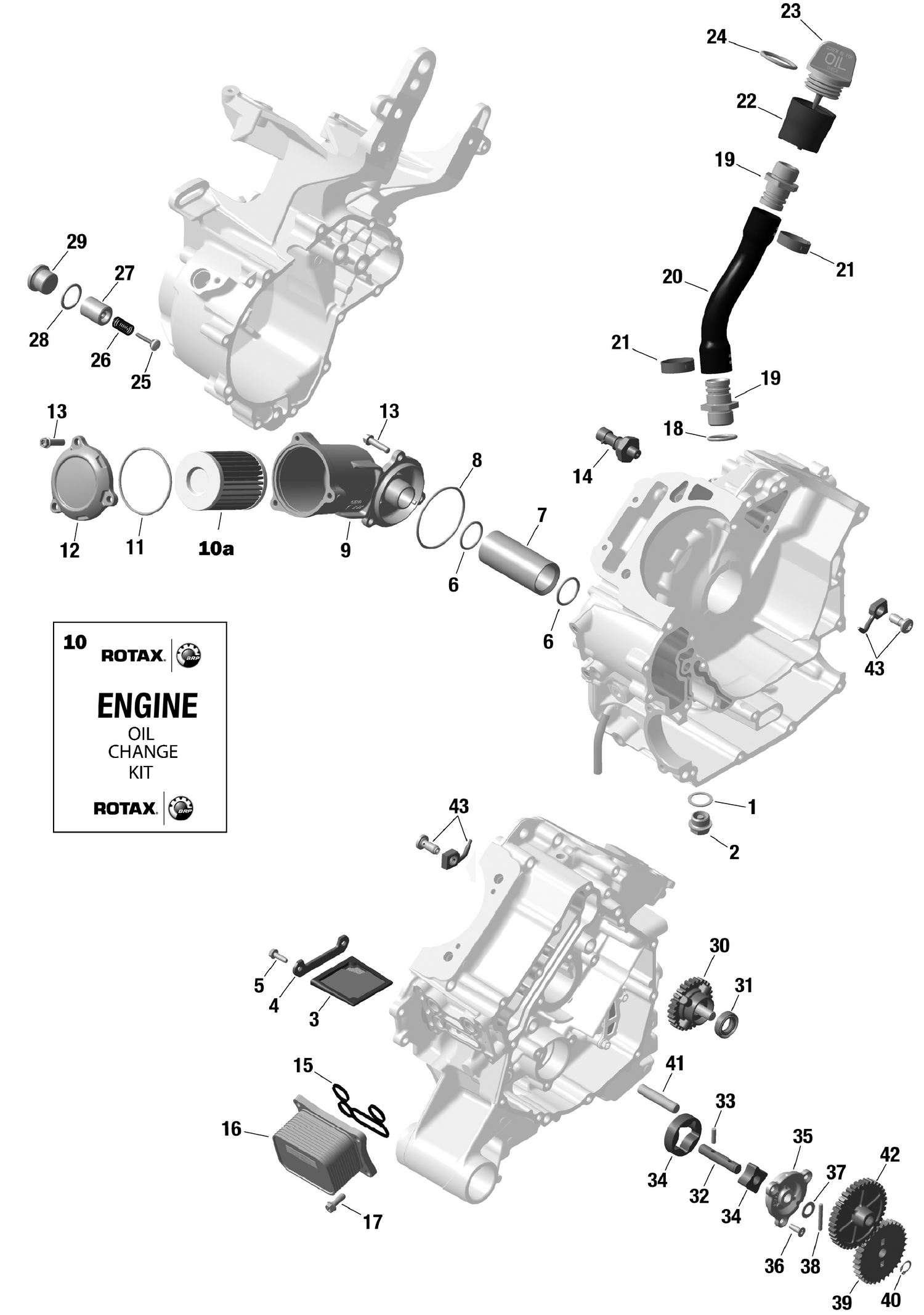

01- ROTAX - Engine Lubrication
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420840278 | Drain Plug M18 X 1.5 This part replaces 420840277. |
| 3 | 420256322 | Oil Sieve |
| 4 | 420612070 | Cover Sieve |
| 5 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 7 | 420856880 | Oil Pipe |
| 8 | 420230923 | O-Ring This part replaces 420230921. |
| 9 | 420611210 | Oil Filter Housing |
| 10 | 9779259 | Can-Am Oil Change Kit 0W40 500 Cc + |
| 10 | 9779488 | Can-Am Oil Change Kit 5W40 500 CC + This part replaces 9779258. |
| 10a | 420256188 | Oil Filter |
| 12 | 420612135 | Oil Filter cover |
| 13 | 420440234 | Torx Flange Screw M6 X 25 |
| 14 | 420256915 | Oil Pressure Switch |
| 16 | 420890181 | Radiator |
| 17 | 420440164 | Torx Flange Screw M6 X 16 |
| 19 | 420856610 | Adaptor |
| 20 | 420201950 | Oil Tube |
| 21 | 420853163 | Clamp |
| 22 | 420856615 | Adaptor |
| 23 | 420956934 | Oil Level Gauge |
| 24 | 420250320 | O-Ring |
| 25 | 420656370 | Pressure Relief Valve |
| 26 | 420939485 | Compression Spring |
| 27 | 420256487 | Housing |
| 28 | 420650465 | Gasket Ring |
| 29 | 420640271 | Plug Screw |
| 32 | 420237059 | Oil Pump Shaft |
| 33 | 420232731 | Needle Pin |
| 34 | 420256348 | Oil Pump Rotor |
| 35 | 420210646 | Oil Pump Cover |
| 36 | 420640823 | Torx Head Screw M5 X 16 |
| 38 | 420232432 | Needle Pin |
| 39 | 420434320 | Oil Pump Gear, 33 Teeth |
| 40 | 504152282 | Circlip |
| 41 | 420229302 | Location Pin 10 M6x50 |
| 42 | 420434300 | Idle Gear, 38 Teeth |
