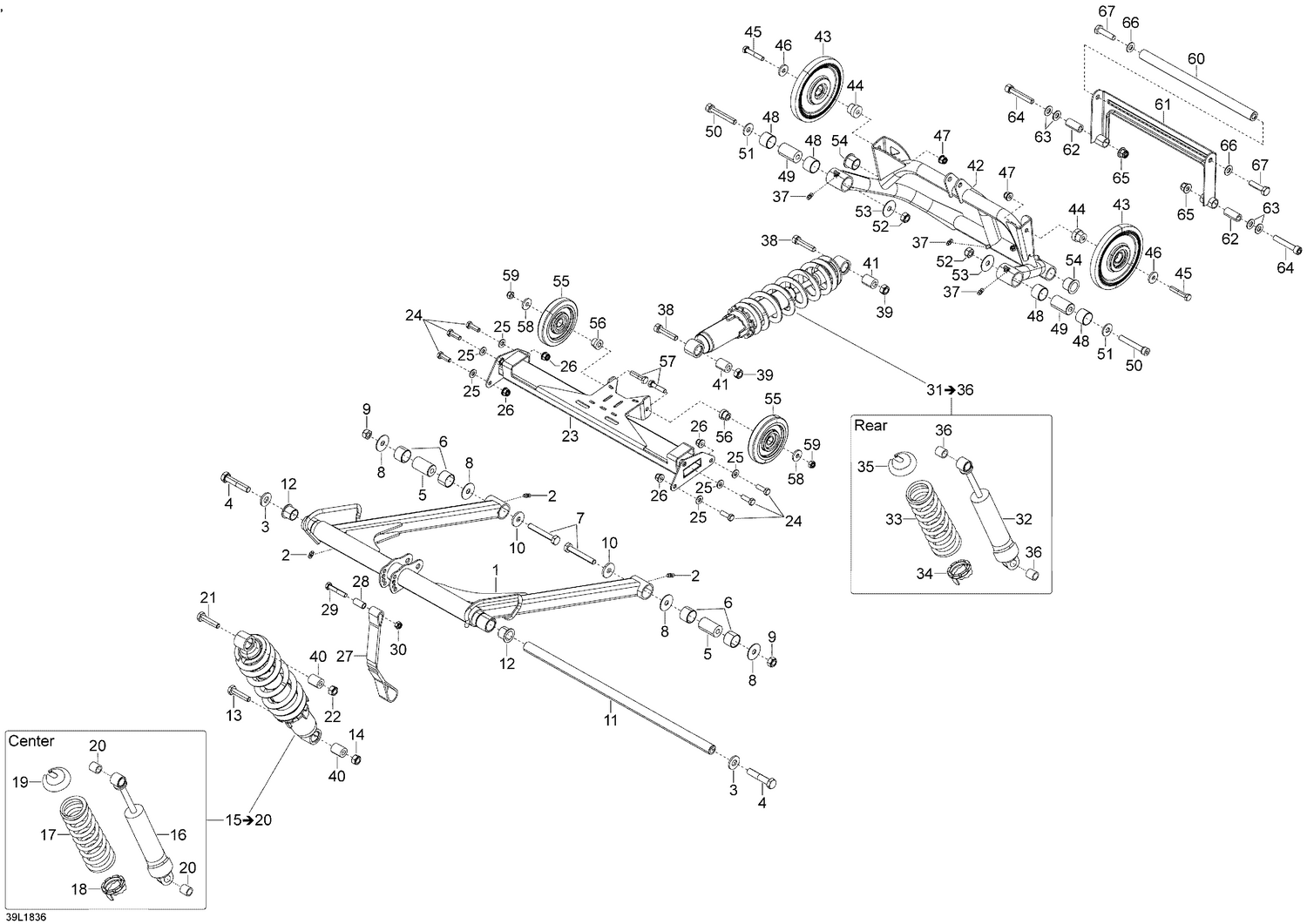

08- Rear Suspension YETI - 600 ACE
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503193092 | Front Arm |
| 2 | 408200700 | Grease Fitting |
| 3 | 250200131 | Washer-spring Conical |
| 4 | 250000555 | Hexagonal Screw |
| 5 | 605354157 | Shaft |
| 6 | 503193700 | Bushing |
| 7 | 207007044 | Hex. Screw M10 X 70 |
| 8 | 605355801 | Washer |
| 9 | 232500416 | Elastic Stop Nut M10 |
| 10 | 503183300 | Washer |
| 11 | 5347719 | Upper Shaft Front Arm |
| 12 | 31024 | Cushion |
| 13 | 250000549 | Hex. Cap Screw M10 x 45 |
| 14 | 232500416 | Elastic Stop Nut M10 |
| 16 | 503192369 | Shock |
| 17 | 503192788 | Spring |
| 18 | 230078 | Adjusting Cam |
| 19 | 230076 | Spring Seat |
| 20 | 31094 | Cushion |
| 21 | 207004544 | Hex. Screw M10 X 45 |
| 22 | 232500416 | Elastic Stop Nut M10 |
| 23 | 503192344 | Middle Beam |
| 24 | 250000556 | Hexagonal Screw |
| 25 | 503192494 | Washer |
| 26 | 233281414 | Hex. Flange Elastic Nut M8 |
| 27 | 503193780 | Limiter Strap |
| 28 | 605455335 | Sleeve |
| 29 | 207084544 | Hex. Screw M8 X 45 |
| 30 | 232581414 | Hex. Elastic Stop Nut M8 |
| 32 | 503192371 | Shock, Rear |
| 33 | 503192428 | Spring |
| 34 | 230078 | Adjusting Cam |
| 35 | 230076 | Spring Seat |
| 36 | 31094 | Cushion |
| 37 | 408200700 | Grease Fitting |
| 38 | 40134 | Screw Socket HD.DIN 912 This part replaces 205004544. |
| 39 | 232500416 | Elastic Stop Nut M10 |
| 40 | 5446652 | Bushing |
| 41 | 5446652 | Bushing |
| 42 | 503194584 | Rear Arm Weld |
| 43 | 503193852 | Idler Wheel |
| 44 | 605454461 | Sleeve |
| 45 | 207084544 | Hex. Screw M8 X 45 |
| 46 | 20077 | M8 Washer |
| 47 | 233281414 | Hex. Flange Elastic Nut M8 |
| 48 | 503193700 | Bushing |
| 49 | 605354157 | Shaft |
| 50 | 250000560 | Screw-socket Hd.din 912 |
| 51 | 503191926 | Washer |
| 52 | 232500416 | Elastic Stop Nut M10 |
| 53 | 605355801 | Washer |
| 54 | 31024 | Cushion |
| 55 | 572043500 | Idler Wheel |
| 56 | 503193330 | Sleeve |
| 57 | 207083544 | Hex. Screw M8 X 35 |
| 58 | 20077 | M8 Washer |
| 59 | 232581414 | Hex. Elastic Stop Nut M8 |
| 60 | 503192397 | Shaft |
| 61 | 503192346 | Rear Swing |
| 62 | 503192341 | Shaft, Rear Swing |
| 63 | 234001410 | Flat Washer 10 mm |
| 64 | 205006044 | Socket Screw M10 X 60 |
| 65 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 66 | 234001410 | Flat Washer 10 mm |
