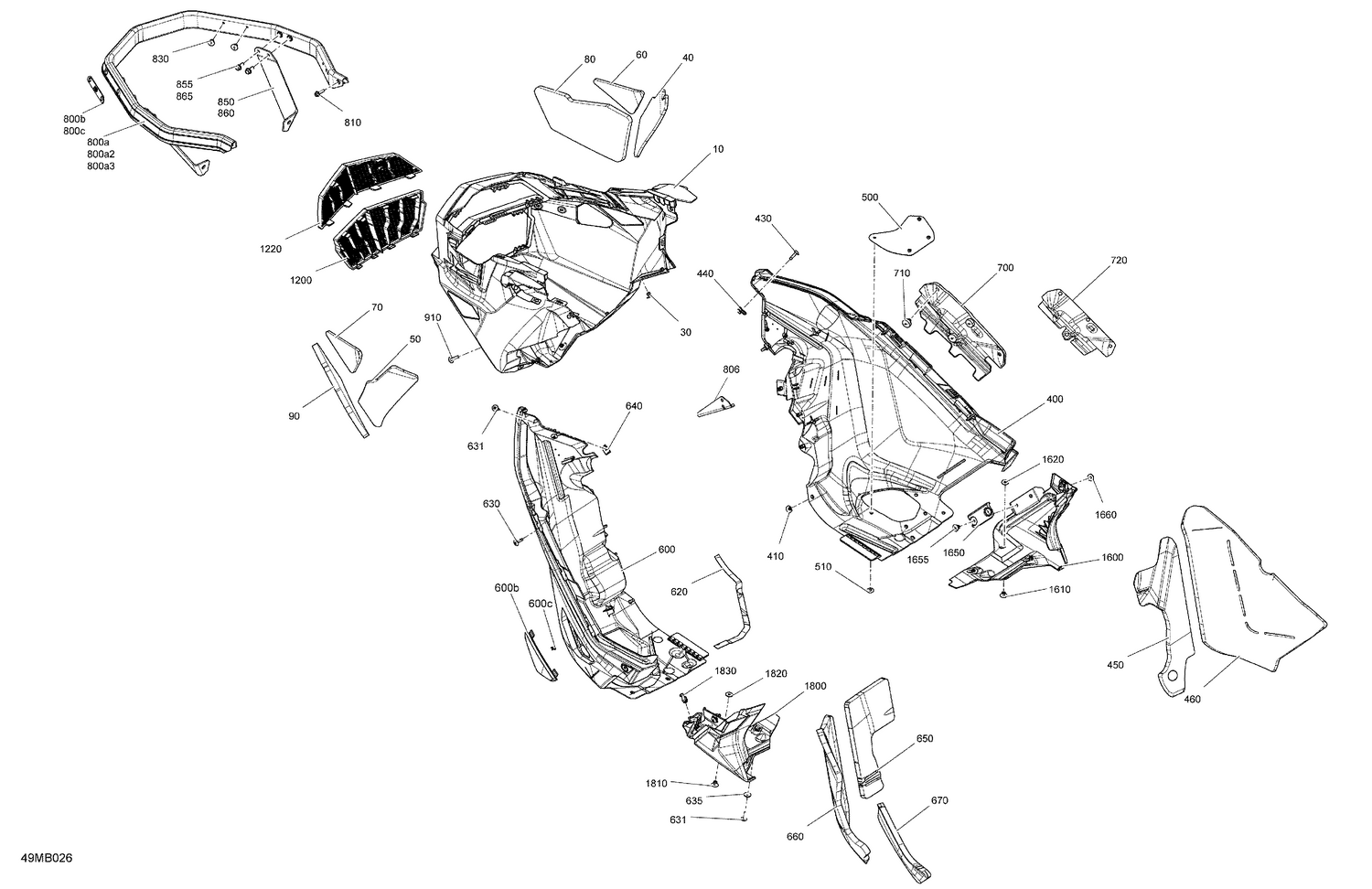

07- Body - Bottom Pan
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008638 | Front Bottom Pan This part replaces 502007756. |
| 30 | 293150104 | Pop Rivet 3/16" |
| 40 | 502007788 | RH Upper Bottom Pan Foam |
| 50 | 502007789 | LH Upper Bottom Pan Foam |
| 60 | 502007545 | RH Bottom Pan Central Foam |
| 70 | 502007546 | LH Bottom Pan Central Foam |
| 80 | 502007800 | RH Lower Bottom Pan Foam |
| 90 | 502007799 | LH Lower Bottom Pan Foam |
| 400 | 502007737 | RH Bottom Pan |
| 410 | 293150104 | Pop Rivet 3/16" |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 502007831 | RH Front Bottom Pan Foam |
| 460 | 502008170 | RH Rear Bottom Pan Foam |
| 500 | 502007868 | Plate |
| 510 | 293150103 | Pop Rivet 3/16" |
| 600b | 502007676 | Bottom Pan Door |
| 600c | 269800431 | Hairpin Cotter |
| 620 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 630 | 250000586 | Torx Truss M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 650 | 502007549 | LH Bottom Pan Upper Foam |
| 660 | 502008334 | LH Front Bottom Pan Foam |
| 670 | 502008173 | LH Rear Bottom Pan Foam |
| 700 | 502008087 | Heat Shield |
| 710 | 502008149 | Stopper |
| 720 | 502008156 | Reflective Sheet |
| 800a2 | 293450268 | Insert M5 X 0.8 |
| 800a3 | 293450398 | Insert |
| 800b | 502007880 | Bumper Trim |
| 800c | 293450398 | Insert |
| 806 | 502008192 | RH Bumper Fastener |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150104 | Pop Rivet 3/16" |
| 850 | 502007762 | RH Bumper Reinforcement |
| 855 | 207661644 | Hex. Flange Screw M6 X 16 |
| 860 | 502007763 | LH Bumper Reinforcement |
| 865 | 207661644 | Hex. Flange Screw M6 X 16 |
| 910 | 250000758 | Torx Screw M6 X 25 |
| 1200 | 502007979 | Lower Prefilter Grille |
| 1220 | 502007980 | Upper Prefilter Grille |
| 1600 | 502007716 | Deep Black, RH Bottom Pan Panel |
| 1610 | 293150104 | Pop Rivet 3/16" |
| 1620 | 517124300 | Washer |
| 1650 | 502007757 | Stopper |
| 1655 | 293150104 | Pop Rivet 3/16" |
| 1660 | 517124300 | Washer |
| 1800 | 502007717 | Deep Black, LH Bottom Pan Panel |
| 1810 | 293150104 | Pop Rivet 3/16" |
| 1820 | 517124300 | Washer |
