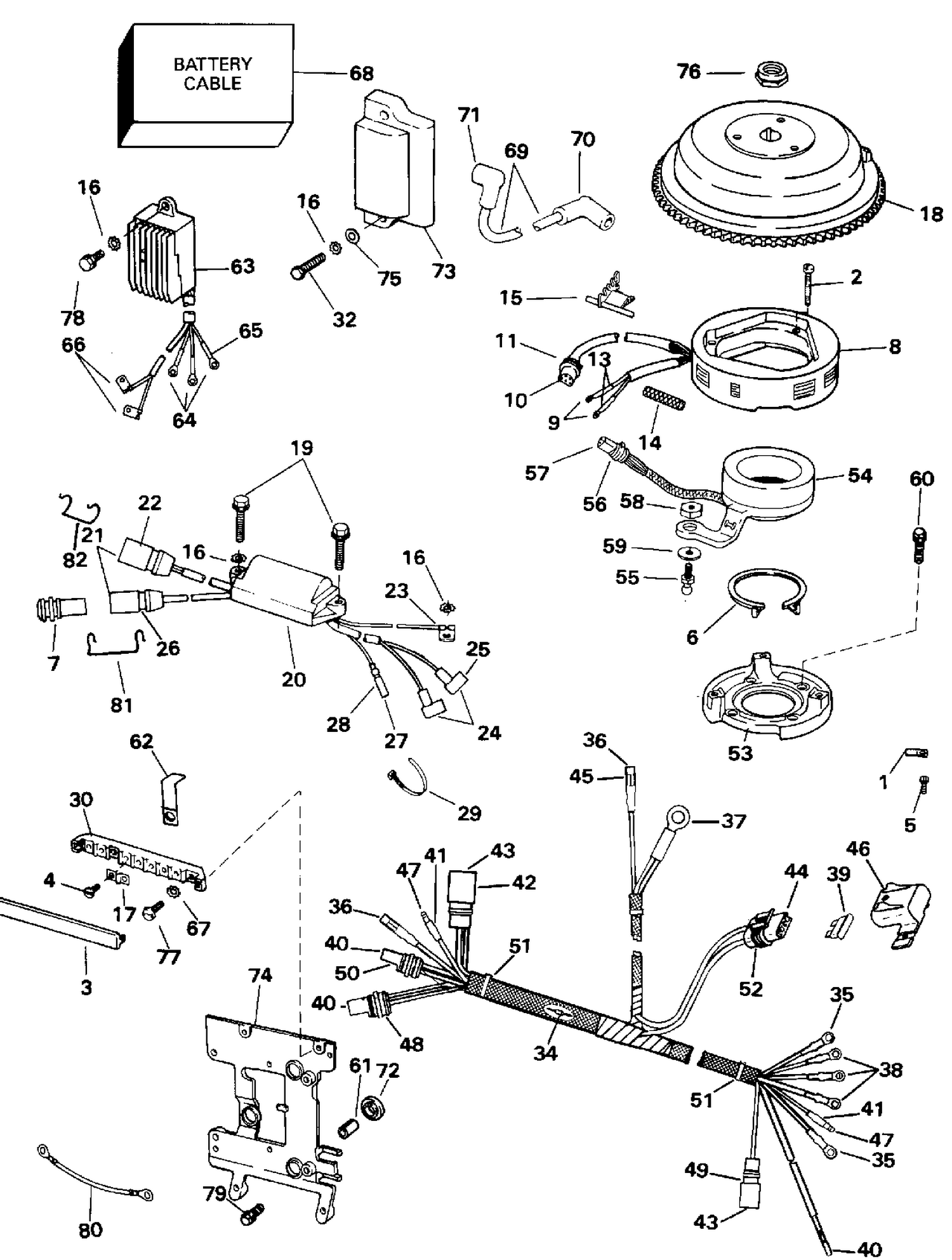

| Ref | Part Number | Description |
|---|
| 1 |
0126582 |
CLAMP, Timer base |
| 2 |
0325042 |
SCREW, Starter mounting |
| 3 |
0329896 |
CACHE DE BORNIER |
| 4 |
0315004 |
FIL DE LIAISON, bornier |
| 5 |
0306014 |
VIS, ancrage |
| 8 |
0584560 |
STATOR |
| 15 |
0513951 |
BRACKET, Wire |
| 17 |
0329182 |
VIS, borne |
| 18 |
0585190 |
FLYWHEEL Assy This part replaces 0175385. |
| 19 |
0328726 |
SCREW (Use existing coil screw) |
| 20 |
0175316 |
POWER PACK |
| 30 |
0329895 |
BORNIER |
| 31 |
0512743 |
DISPOSITIF DE RETENUE |
| 33 |
0584695 |
MOTOR CABLE ASSY. |
| 53 |
0126671 |
PLATE, Stator mounting |
| 54 |
0175386 |
TIMER BASE Assy |
| 61 |
0302406 |
SLEEVE |
| 63 |
0585001 |
REDRESSEUR & FIL This part replaces 0584476. |
| 68 |
0584381 |
CÂBLE DE BATTERIE |
| 69 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 72 |
0326136 |
GROMMET |
| 73 |
0583740 |
COIL Assy |
| 74 |
0338431 |
BRACKET |
| 76 |
0326111 |
NUT |
| 77 |
0303714 |
SCREW |
| 80 |
0376349 |
FIL, masse |
| 81 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
